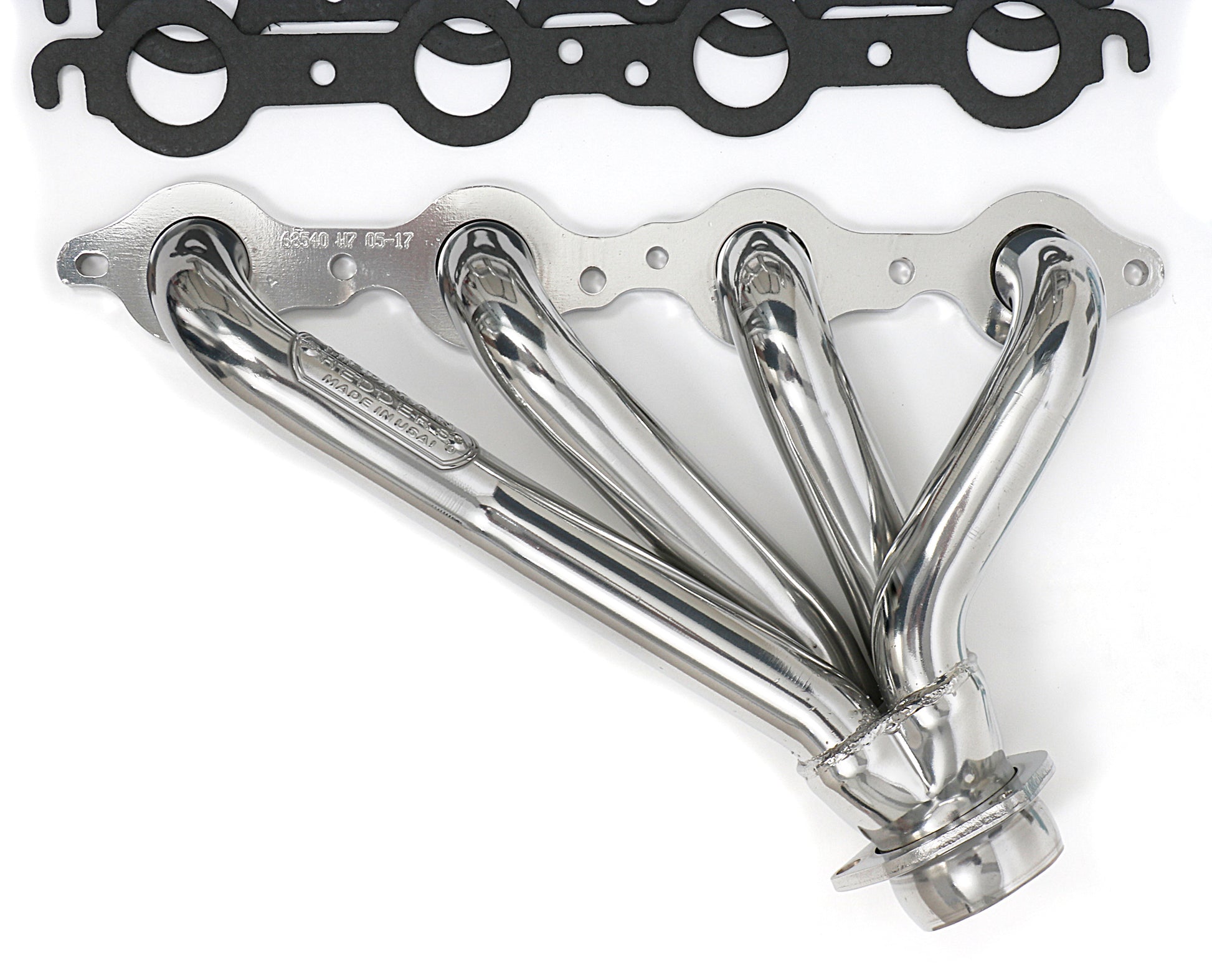

Hedman Hedders FOR 64-67 A-BODY / LS ENGINE SWAP HEADERS 1-1/2 IN.- HTC COATED 68546
Hedman Hedders FOR 64-67 A-BODY / LS ENGINE SWAP HEADERS 1-1/2 IN.- HTC COATED 68546
HEDMAN HEDDERS
Part #
HEDMAN-68546
UPC #
732611685467
Regular price
$849.79 USD
Regular price
$937.77 USD
Sale price
$849.79 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611685467
- Brand Name: Hedman Hedders
- Primary Tube Gauge: 16g
- Bolts/Studs Included: Yes
- Flange Thickness: 0.375 in.
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: Yes
- Collector Size: 2-1/2 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Flange Style: Standard
- Replacement Head Flange Gasket: 27470
- Header Port Shape: Round
- Material: Mild Steel
- Port Shape: Round
- Reducer Outlet Size: 2-1/2 in.
- Tube Design: MID-LENGTH
- Tube Diameter: 1-1/2 in.
- Tube Length: Mid-Length Tubes
- Tube Size: 1-1/2 in.
- Tube Style: Mid-Length
- Cylinder Head Port Shape: Round
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.50 in.
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27470
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 2-1/2 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
- Vehicle Use: A-Body (GM) 1964-67
- Transmission Compatibility: Automatic Transmission

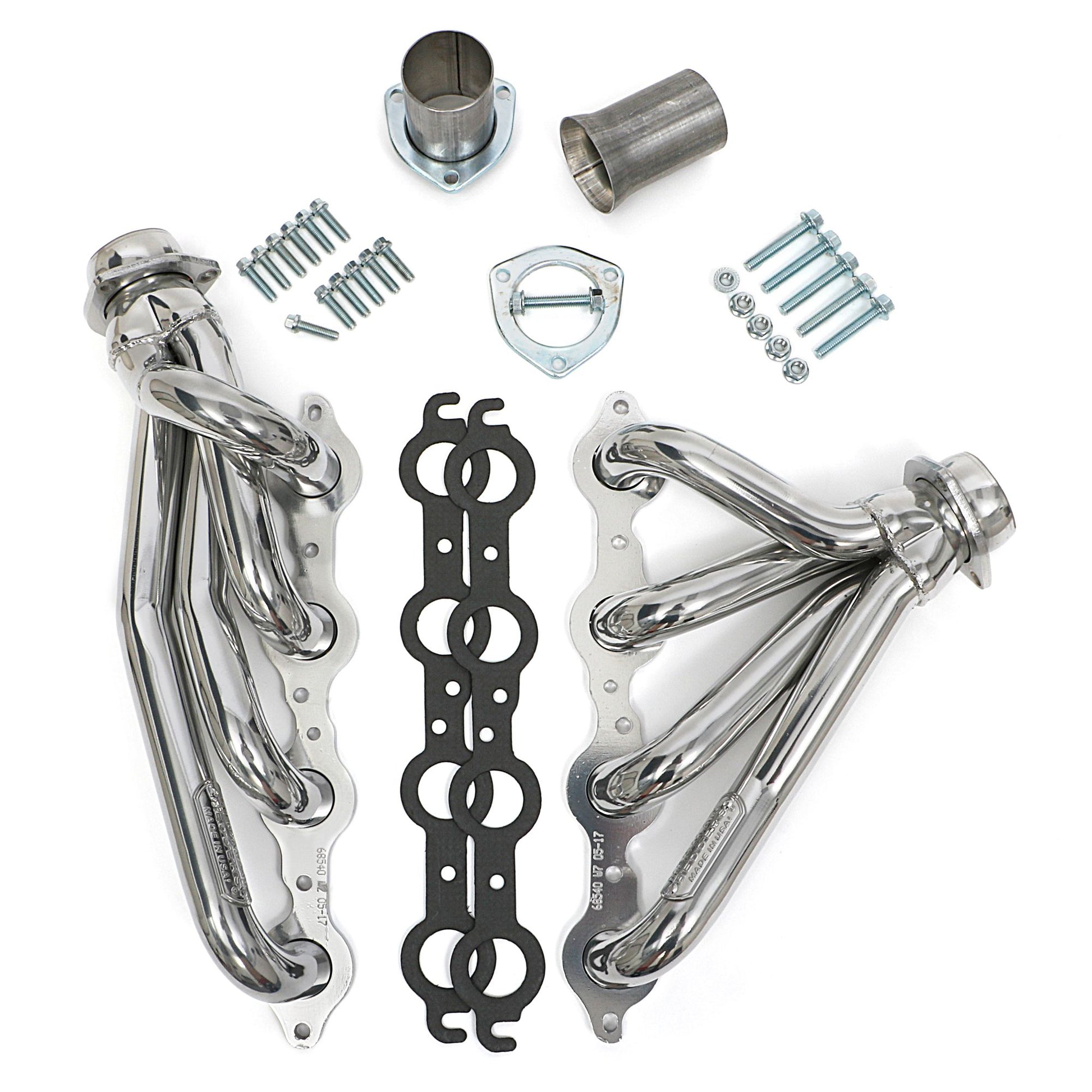

- Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
- Notes: 64-67 Chevelle, Malibu, El Camino w/ LS Series Engine
- Product Type: Headers
- Collector Diameter: 2-1/2 in.
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Tube Material Thickness: 16g
Extended Information:
- Country of Origin: United States
- Life Cycle Status: Available To Order
- Emissions : Released
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 20.250 x 13.000 x 8.000 inches
- Weight: 18.000 lb
