Hedman Hedders HEDMAN HEADERS 1968-72 CHEVELLE/EL CAMINO (AND RELATED A-BODIES) LS SWAP HEADERS; AUTO TRANSMISSION; 1-3/4 IN. MID-LENGTH TUBE; 3 IN. BALL/SOCKET COLLECTOR- BLACK MAXX CERAMIC COATED 68143
Hedman Hedders HEDMAN HEADERS 1968-72 CHEVELLE/EL CAMINO (AND RELATED A-BODIES) LS SWAP HEADERS; AUTO TRANSMISSION; 1-3/4 IN. MID-LENGTH TUBE; 3 IN. BALL/SOCKET COLLECTOR- BLACK MAXX CERAMIC COATED 68143
HEDMAN HEDDERS
Part #
HEDMAN-68143
UPC #
732611681438
Regular price
$802.12 USD
Regular price
$885.33 USD
Sale price
$802.12 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611681438
- Brand Name: Hedman Hedders
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Bolts/Studs Included: Yes
- Catalytic Converter(s) Included: No
- Collector Bolts Included: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Crossover Pipe Included: No
- Cylinder Head: Stock Profile Heads
- Cylinder Head Port Shape: Round
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- E.O. #: No
- Exhaust System Dia: 3 in.
- Finish: BLACK MAXX Satin Black Ceramic-Metallic
- Flange Style: Standard
- Replacement Gasket: 27470
- Gasket Or Seal Included: Yes
- Header Construction: Standard-Duty
- Header Fasteners Included: Yes
- Header Style: Mid-Length Tube
- Installation Hardware Included: Yes
- Manual Transmission - Column: No
- Manual Transmission - Floor: No
- Material: Mild Steel
- Port Shape: Round
- Power Steering: Yes
- Quantity: Sold as a pair.
- Reducer Outlet Size: 3 in.
- Reducers Included: Yes
- Tube Diameter: 1-3/4 in.
- Tube Material Thickness: 16g
- Tuned: No
- Variations: 68140, 68143, 68146
- Weld-Up: No
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Transmission Compatibility: Automatic Transmission
- Vehicle Use: A-Body (GM) 1968-72
- Header Port Shape: Round
- Installation Notes: Requires Trans-Dapt Engine Swap Mount Kit 4600 (TH350/700R4) or 4601 (4L60/70E)
- Engine: Chevy LS Series
- Tube Style: Mid-Length
- Product Type: Headers
- Collector Attachment: 3 in.
- Collector Diameter: 3 in.
- Flange Thickness: 0.375 in.
- Primary Tube Diameter (in): 1.75 in.
- Primary Tube Gauge: 16g
- Tube Design: MID-LENGTH
- Tube Length: Mid-Length Tubes
- Tube Size: 1-3/4 in.

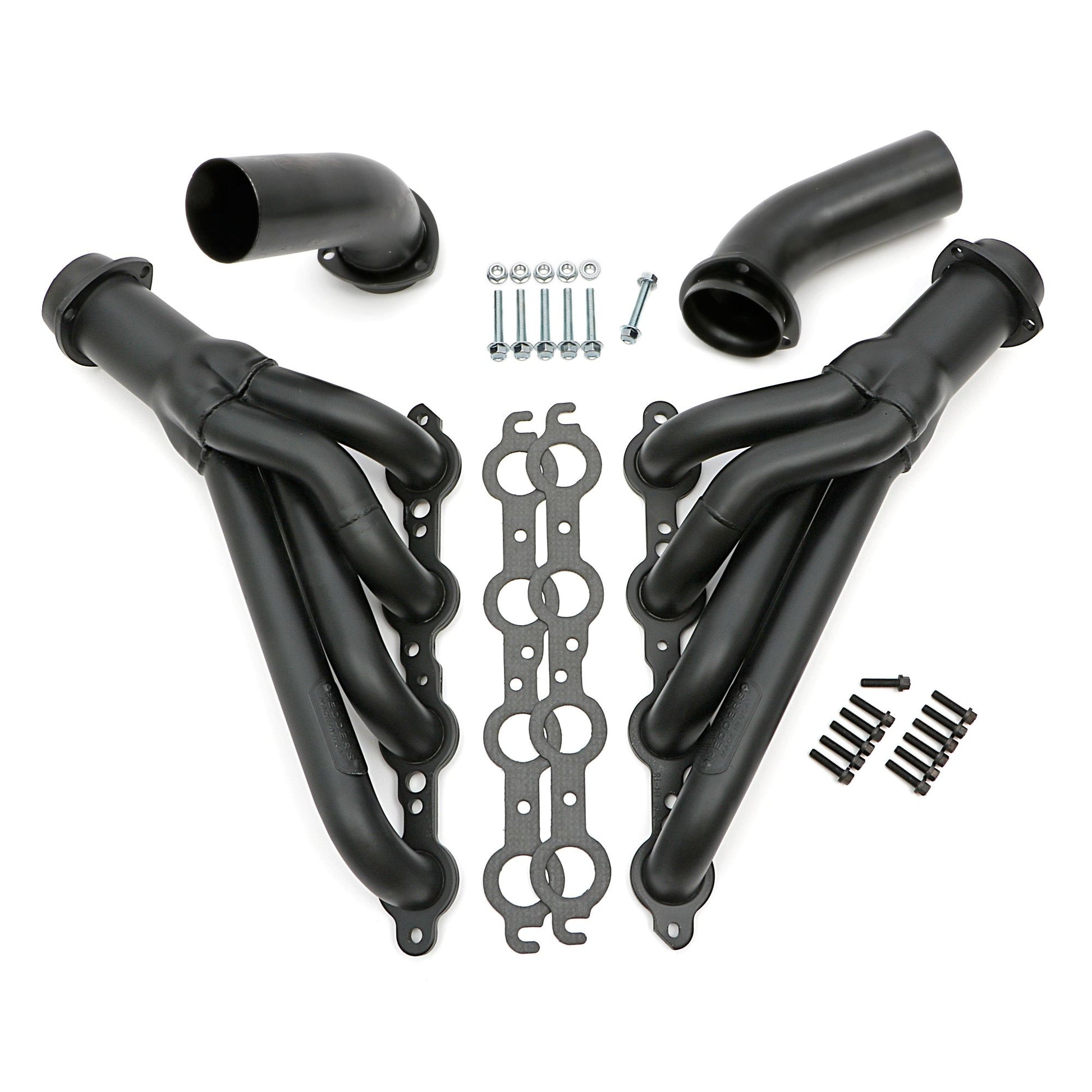

- Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
- Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
- Header Material: Mild Steel
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Extended Information:
- Country of Origin: United States
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: PR
- Dimension: 39.000 x 16.500 x 8.250 inches
- Weight: 22.500 lb
