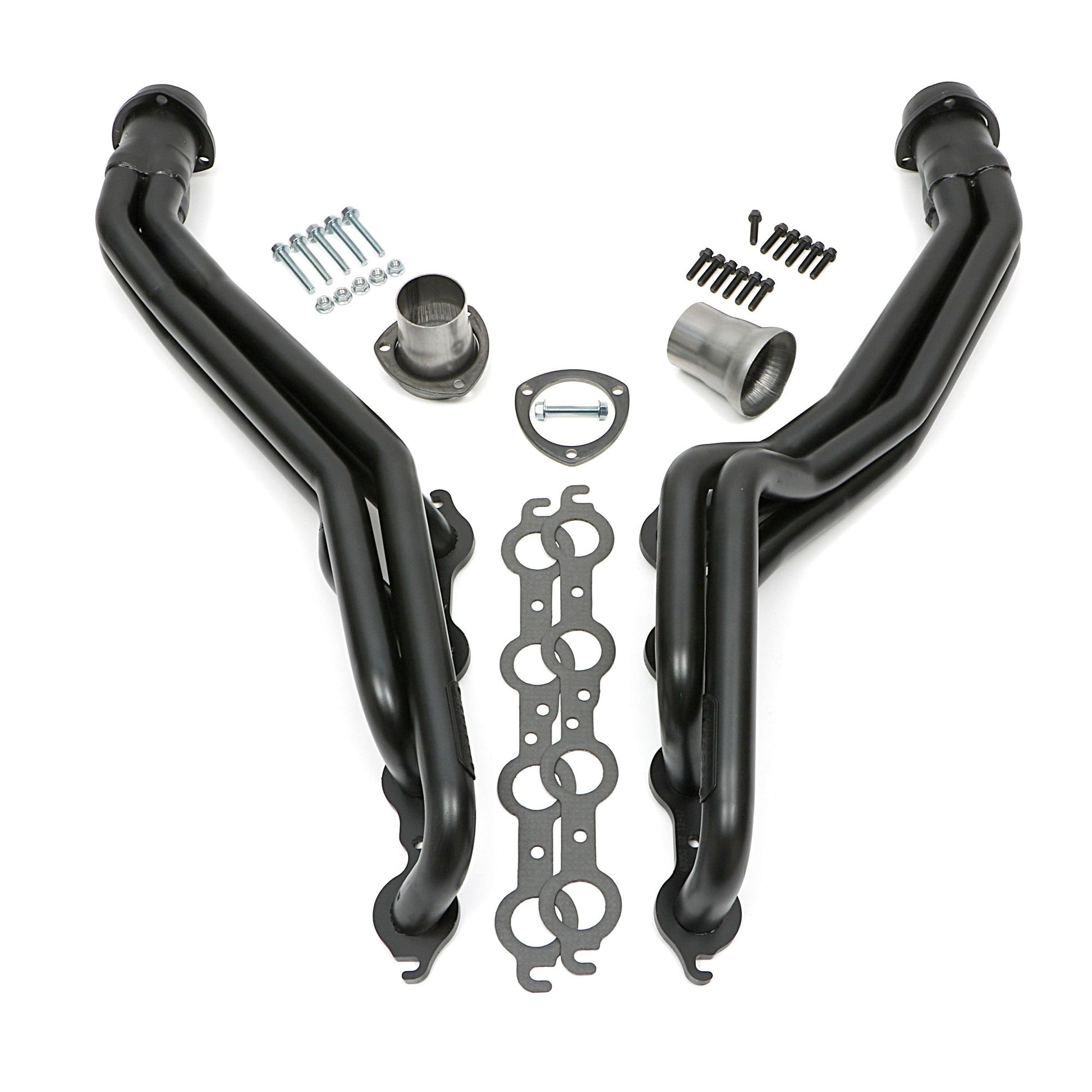

Hedman Hedders HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- UNCOATED 69050
Hedman Hedders HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- UNCOATED 69050
HEDMAN HEDDERS
Part #
HEDMAN-69050
UPC #
732611690508
Regular price
$468.98 USD
Regular price
$518.88 USD
Sale price
$468.98 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- Long Tube, Under Chassis Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
- Under Chassis Design
Attributes:
- GTIN: 00732611690508
- Brand Name: Hedman Hedders
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Air Conditioning: Yes
- Automatic Transmission - Column: No
- Automatic Transmission - Floor: Yes
- Bolts/Studs Included: Yes
- Catalytic Converter(s) Included: No
- Collector Attachment: 3 in.
- Collector Bolts Included: Yes
- Collector Style: BALL and SOCKET Style (Gasketless)
- Contents: Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
- Crossover Pipe Included: No
- Cylinder Head: Stock Profile Heads
- Cylinder Head Port Shape: Round
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- E.O. #: No
- Exhaust System Dia: 2-1/2 in.
- Finish: Uncoated
- Flange Style: Standard
- Flange Thickness: 0.375 in.
- Replacement Gasket: 27470
- Gasket Or Seal Included: Yes
- Replacement Head Flange Gasket: 27470
- Header Construction: Standard-Duty
- Header Finish: Uncoated
- Header Material: Mild Steel
- Header Port Shape: Round
- Installation Hardware Included: Yes
- Motor Mounts Included: No
- Manual Transmission - Column: No
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Port Shape: Round
- Power Steering: Yes
- Primary Tube Diameter (in): 1.50 in.
- Primary Tube Gauge: 16g
- Quantity: Sold as a pair.
- Reducer Outlet Size: 2-1/2 in.
- Reducers Included: Yes
- Tube Design: LONG TUBES
- Tube Diameter: 1-1/2 in.
- Tube Length: Long Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-1/2 in.
- Tuned: No
- Variations: 69050, 69053, 69056
- Weld-Up: No
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Drivetrain: 2WD Only!
- Vehicle Use: Chevy/GMC S10/S15 Family; 1982-04
- Installation Notes: Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
- Engine: Chevy LS Series
- Product Type: Headers
- Collector Diameter: 3 in.
- Collector Size: 3 in.
- Tube Style: Long Tubes
- Header Style: Long Tube
- Finish Type: Uncoated Mild steel
Extended Information:
- Country of Origin: United States
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: PR
- Dimension: 39.000 x 16.500 x 8.250 inches
- Weight: 37.000 lb
