Hedman Hedders HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. MID-LENGTH TUBE; 2-1/2 IN. BALL COLLECTOR- UNCOATED 69040
Hedman Hedders HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. MID-LENGTH TUBE; 2-1/2 IN. BALL COLLECTOR- UNCOATED 69040
HEDMAN HEDDERS
Part #
HEDMAN-69040
UPC #
732611690409
Regular price
$398.84 USD
Regular price
$441.72 USD
Sale price
$398.84 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Under-Chassis Exit Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611690409
- Brand Name: Hedman Hedders
- Tube Material Thickness: 16g
- Tube Size: 1-1/2 in.
- Tuned: No
- Variations: 69040, 69043, 69046
- Weld-Up: No
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Drivetrain: 2WD Only!
- Vehicle Use: Chevy/GMC S10/S15 Family; 1982-04
- Installation Notes: Uses Trans-Dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel).
- Engine: Chevy LS Series
- Product Type: Headers
- Collector Diameter: 2-1/2 in.
- Header Style: Mid-Length Tube
- Finish Type: Uncoated Mild steel

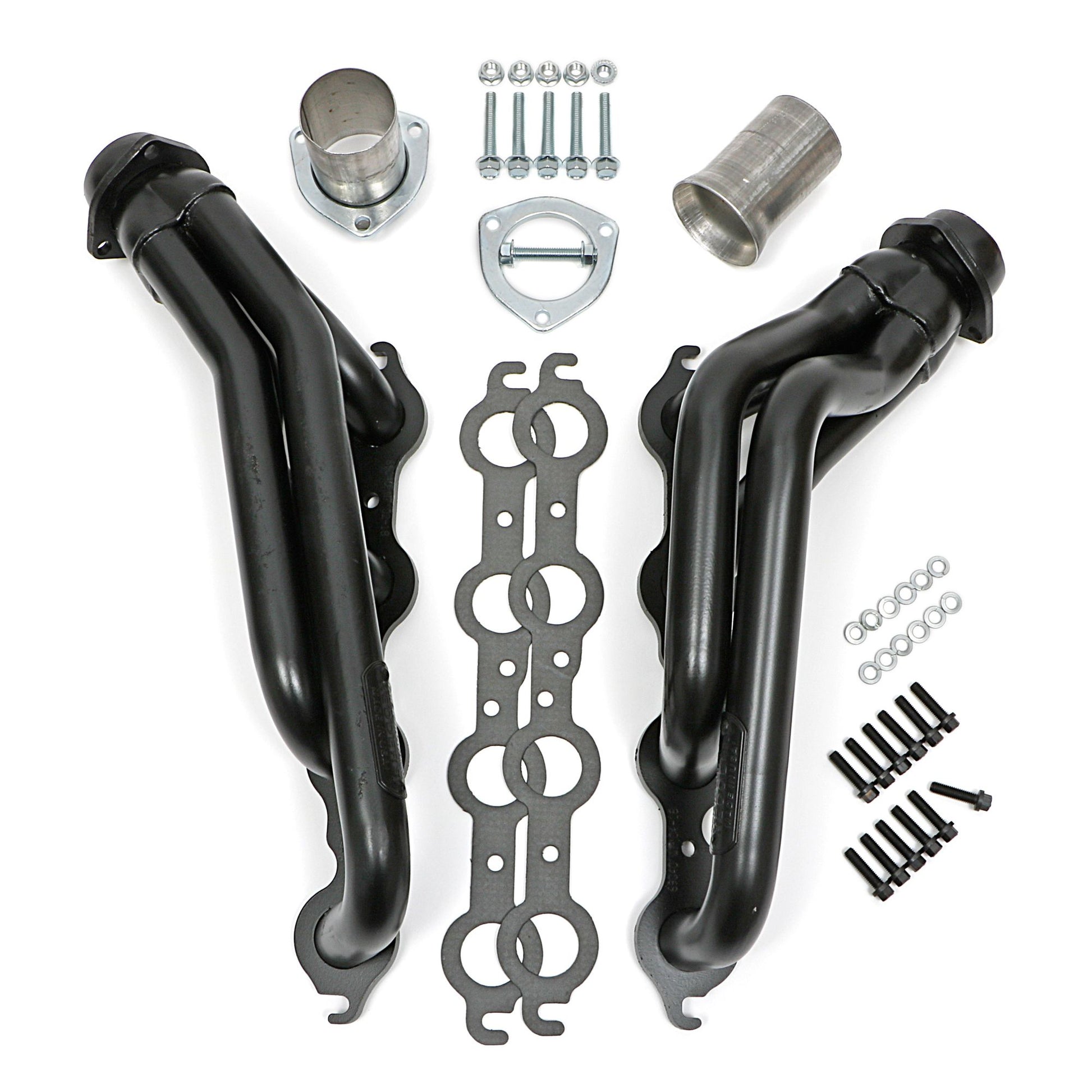

- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Collector Size: 2-1/2 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Contents: Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
- Crossover Pipe Included: No
- Cylinder Head: Stock Profile Heads
- Cylinder Head Port Shape: Round
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- E.O. #: No
- Exhaust System Dia: 2-1/2 in.
- Finish: Uncoated
- Flange Style: Standard
- Flange Thickness: 0.375 in.
- Air Conditioning: Yes
- Automatic Transmission - Column: No
- Automatic Transmission - Floor: Yes
- Bolts/Studs Included: Yes
- Catalytic Converter(s) Included: No
- Collector Attachment: 2-1/2 in.
- Collector Bolts Included: Yes
- Replacement Gasket: 27470
- Gasket Or Seal Included: Yes
- Replacement Head Flange Gasket: 27470
- Header Construction: Standard-Duty
- Header Finish: Uncoated
- Header Material: Mild Steel
- Header Port Shape: Round
- Installation Hardware Included: Yes
- Motor Mounts Included: No
- Manual Transmission - Column: No
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Port Shape: Round
- Power Steering: Yes
- Primary Tube Diameter (in): 1.50 in.
- Primary Tube Gauge: 16g
- Quantity: Sold as a pair.
- Reducer Outlet Size: 2-1/2 in.
- Reducers Included: Yes
- Tube Design: MID-LENGTH
- Tube Diameter: 1-1/2 in.
- Tube Length: Mid-Length Tubes
- Tube Style: Mid-Length
Extended Information:
- Country of Origin: United States
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: PR
- Dimension: 20.000 x 13.500 x 8.250 inches
- Weight: 21.000 lb
