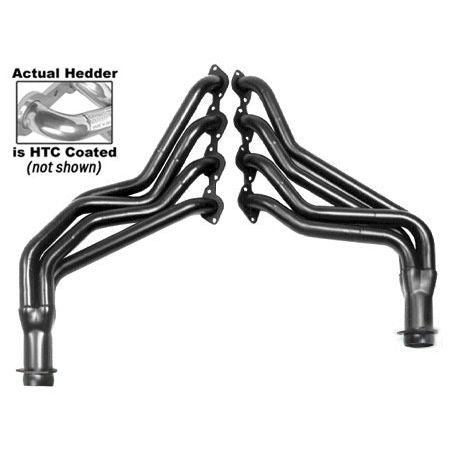

Hedman Hedders HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN 69126

• Handcrafted, Mild Steel Construction.
• Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611691260
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Long Tube
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: HTC Polished Silver Ceramic-Metallic
• Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
• Flange Style: Standard
• Replacement Head Flange Gasket: 27550
• Header Port Shape: Square
• Manual Transmission - Column: Yes
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Square
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: LONG TUBES
• Tube Diameter: 1-3/4 in.
• Tube Length: Long Tubes
• Tube Size: 1-3/4 in.
• Variations: 69120, 69820
• Cylinder Head Port Shape: Square
• Header Finish: HTC Polished Silver Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27550
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Header Construction: Standard-Duty
• E.O. #: No
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Notes: 68-95 GM Class A Motorhome SUV 396-502 2WD
• Collector Diameter: 3 in.
• Tube Style: Long Tubes
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Tube Material Thickness: 16g
• Primary Tube Gauge: 16g

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.000 x 16.500 x 8.250 inches
• Weight: 33.000 lb
