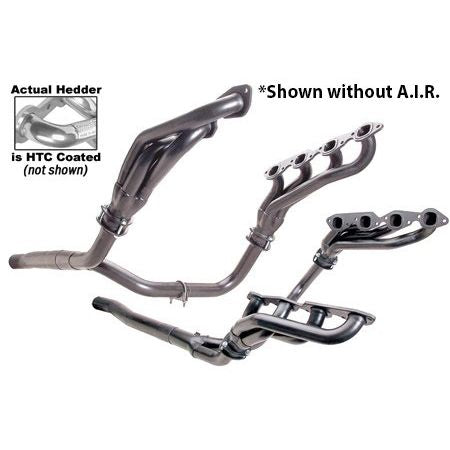

Hedman Hedders HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN 66571

• Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
• The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611665711
• Brand Name: Hedman Hedders
• Crossover Pipe Style: Y-pipe
• Motor Mounts Included: No
• Quantity: Sold as a kit.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27550
• Installation Hardware Included: Yes
• with A.I.R. System: Yes
• with EGR: No
• Y-Pipe Included: Yes
• Header Construction: Standard-Duty
• E.O. #: Yes
• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Notes: 88-95 GM 1/2, 3/4, 1 Ton Truck/SUV 2-4WD w/A.I.R.
• Collector Attachment: Stock
• Collector Diameter: Stock
• Exhaust System Dia: 3 in.
• Reducer Outlet Size: Factory hookup
• Tube Length: Mid-Length Tubes
• Tube Style: Mid-Length
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Mid-Length Tube
• Reducers Included: No
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: Stock
• Collector Style: BALL and SOCKET Style (Gasketless)
• Finish: HTC Polished Silver Ceramic-Metallic
• Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
• Flange Style: Standard
• Replacement Head Flange Gasket: 27550
• Header Port Shape: Square
• Key Feature: With A.I.R.
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Square
• Power Steering: Yes
• Tube Design: MID-LENGTH
• Tube Diameter: 1-3/4 in.
• Tube Material Thickness: 16g
• Tube Size: 1-3/4 in.
• Variations: 69571
• Cylinder Head Port Shape: Square
• Header Finish: HTC Polished Silver Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Primary Tube Gauge: 16g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.000 x 16.500 x 8.250 inches
• Weight: 37.000 lb

PDF:

PDF:

66571
