Hedman Hedders HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN 68506
Hedman Hedders HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN 68506
HEDMAN HEDDERS
Part #
HEDMAN-68506
UPC #
732611685061
Regular price
$842.87 USD
Regular price
$930.16 USD
Sale price
$842.87 USD
Unit price
/
per
Product Description
Product Description
- The Lowest Profile Header On The Market
- The Flat, Clamshell Style Collector Has an Extremely Low Profile So they'll Fit in Nearly Any Street Rod or Custom Build With Little Clearance.
- The High Volume Flat Collector Offers Improved Exhaust Flow For Far Superior Performance Over Classic Block Hugger Models.
- Includes Classic, 3-Bolt Gasket-Style Header Collectors, Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611685061
- Brand Name: Hedman Hedders
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Flange Style: Standard
- Replacement Head Flange Gasket: 27520
- Header Port Shape: Oval Port
- Manual Transmission - Column: Yes
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Port Shape: Oval
- Power Steering: Yes
- Tube Design: TIGHT TUBES
- Tube Diameter: 1-5/8 in.
- Tube Length: Tight Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-5/8 in.
- Tube Style: Tight Tubes
- Variations: 68500
- Cylinder Head Port Shape: Oval
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27520
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
- Notes: 55-57 Chevrolet Passenger Cars 283-400 Tight Tube
- Engine: Chevy SB 283-400
- Reducer Outlet Size: 2 in.
- Exhaust System Dia: 2 in.
- Collector Attachment: 2-1/2 in.
- Collector Diameter: 2-1/2 in.
- E.O. #: No

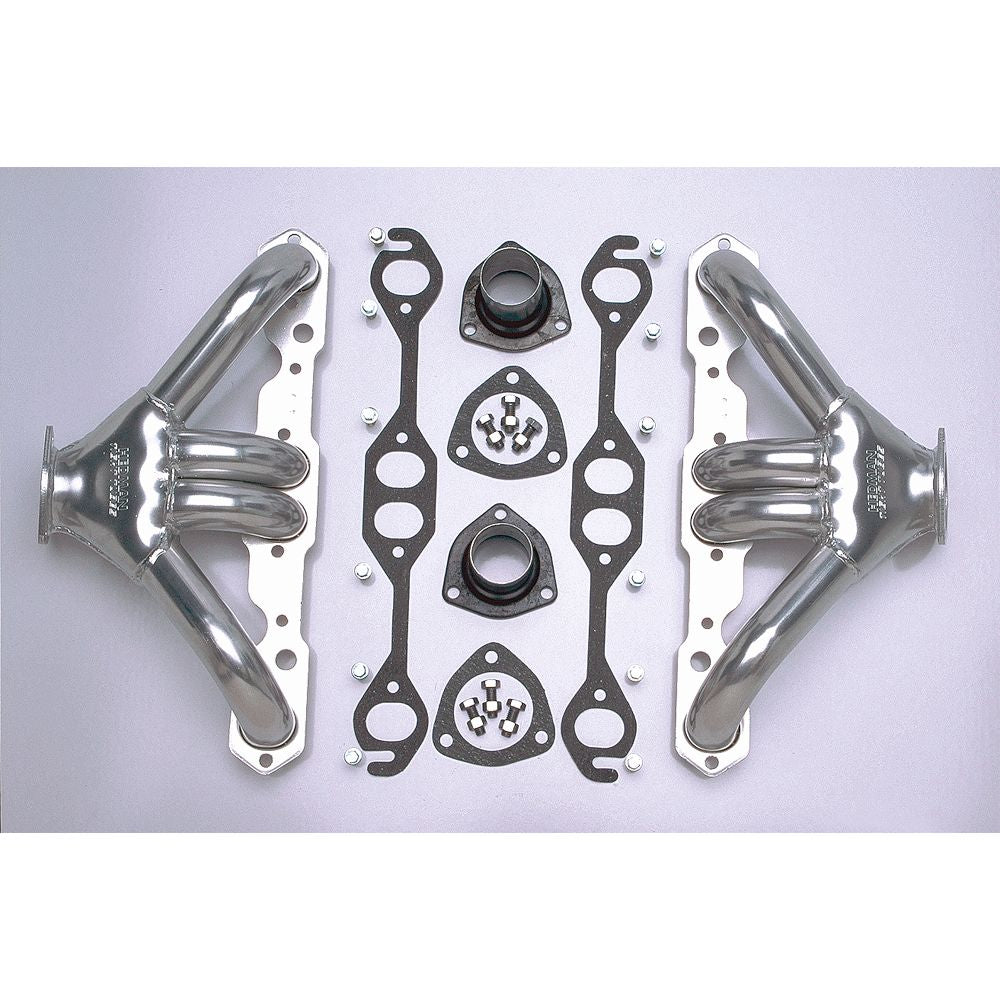

- Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
- Bolts/Studs Included: Yes
- Flange Thickness: 0.3125 in.
- Gasket Or Seal Included: Yes
- Header Style: TIGHT TUBES
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 2-1/2 in.
- Collector Style: 3-Bolt Gasket Style Flange
- Finish: HTC Polished Silver Ceramic-Metallic
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 20.000 x 13.500 x 8.250 inches
- Weight: 16.000 lb
