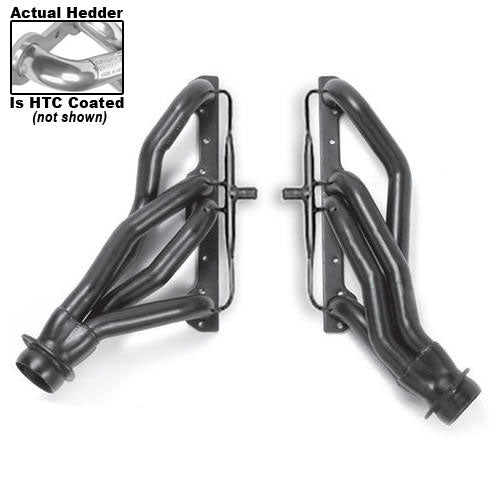

Hedman Hedders HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 66601
Hedman Hedders HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 66601
HEDMAN HEDDERS
Part #
HEDMAN-66601
UPC #
732611666015
Regular price
$680.59 USD
Regular price
$751.65 USD
Sale price
$680.59 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611666015
- Brand Name: Hedman Hedders
- Bolts/Studs Included: Yes
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Flange Style: Standard
- Key Feature: With A.I.R.
- Manual Transmission - Column: No
- Manual Transmission - Floor: No
- Material: Mild Steel
- Port Shape: Round
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Tube Design: MID-LENGTH
- Tube Diameter: 1-5/8 in.
- Tube Length: Mid-Length Tubes
- Tube Size: 1-5/8 in.
- Variations: 68601, 61608
- Cylinder Head Port Shape: Round
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.625 in.
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27500
- Installation Hardware Included: Yes
- with A.I.R. System: Yes
- with EGR: No
- Y-Pipe Included: No
- Header Construction: Standard-Duty
- E.O. #: Yes
- Notes: 64-94 Various Chevy Car 283-400 w/AIR
- Engine: Chevy SB 283-400 (Gen 1) 1958-86
- Tube Style: Mid-Length
- Collector Attachment: 3 in.
- Collector Diameter: 3 in.
- Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Tube Material Thickness: 16g
- Primary Tube Gauge: 16g
- Flange Thickness: 0.3125 in.
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 29.000 x 16.500 x 8.250 inches
- Weight: 23.000 lb
