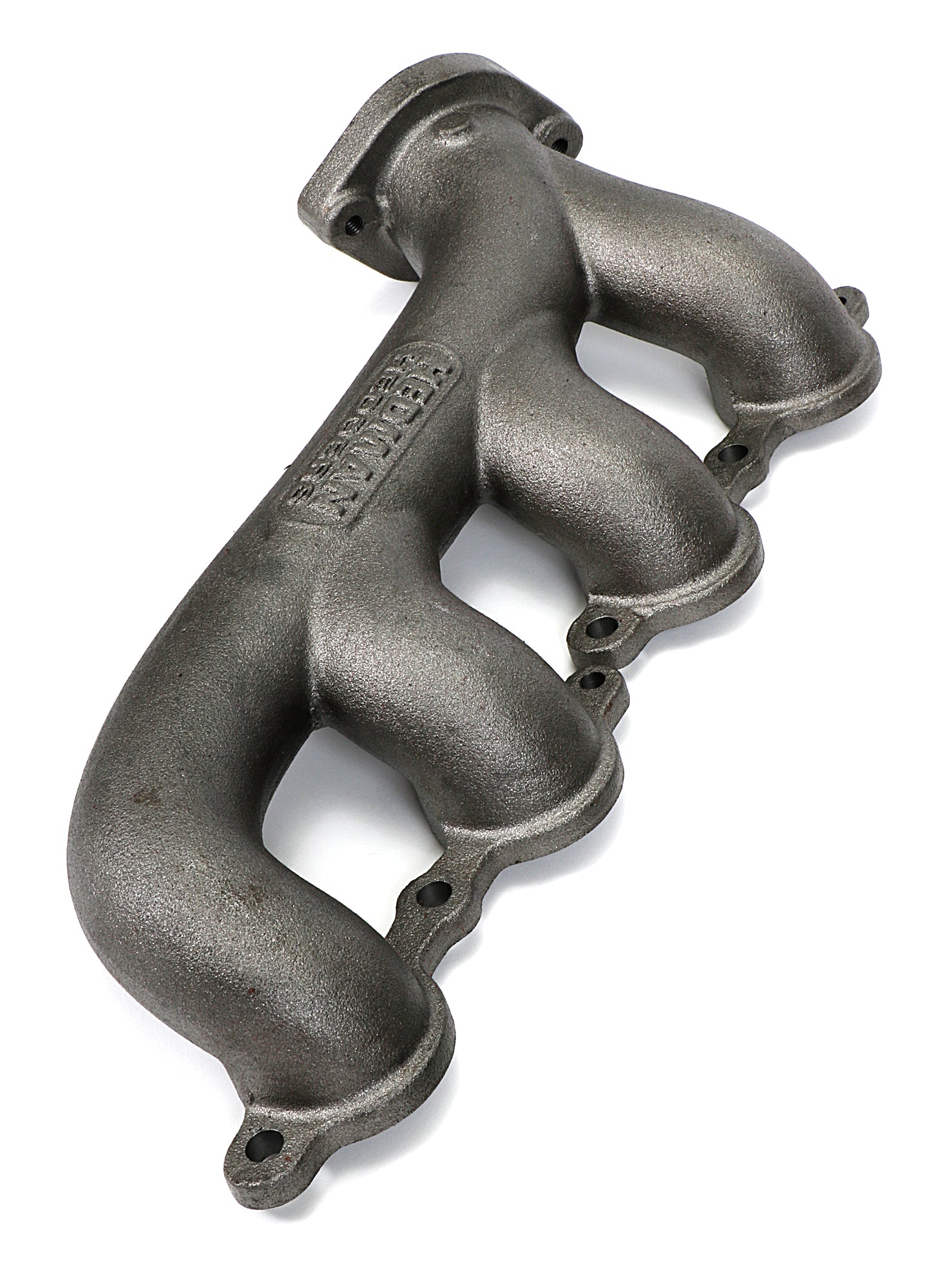

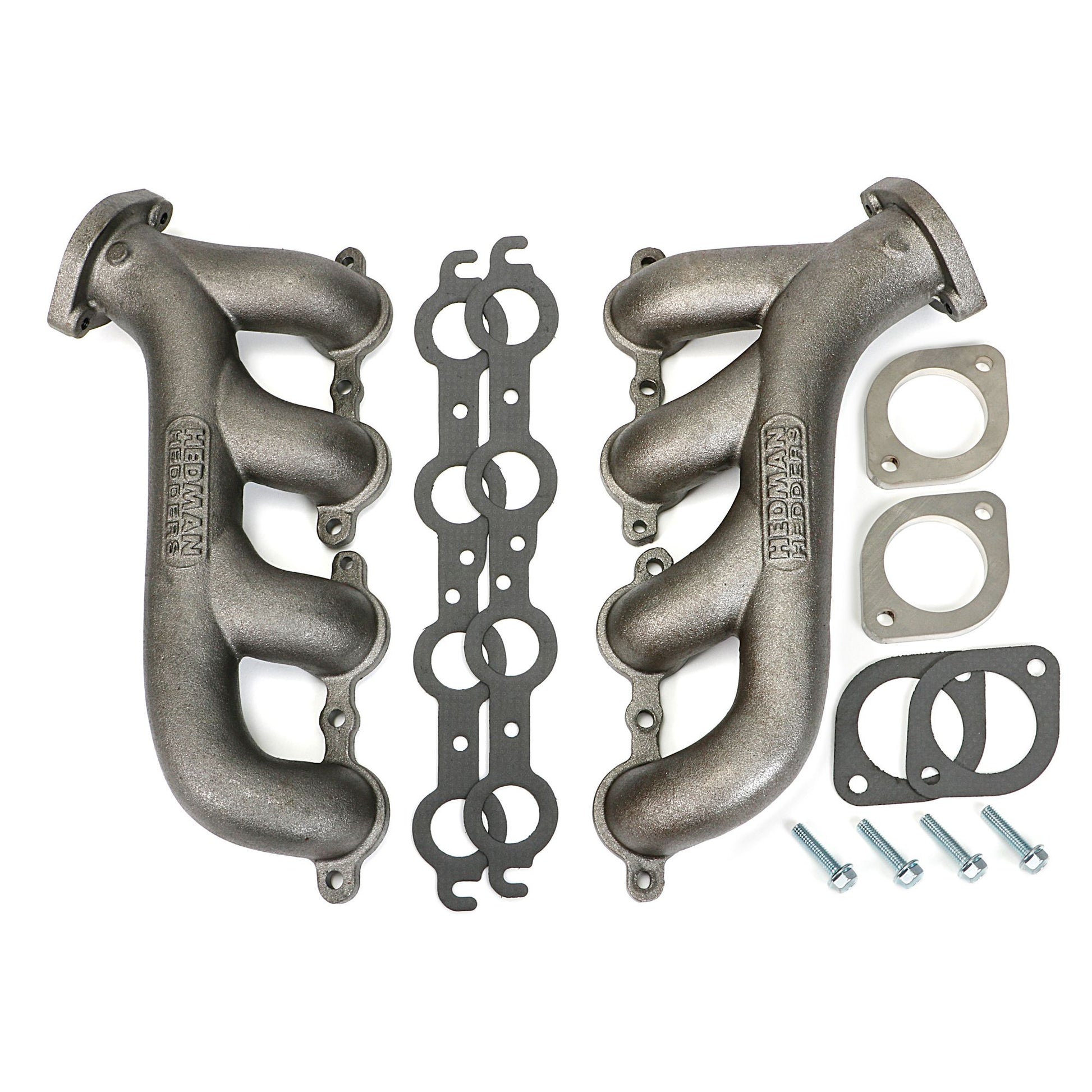

Hedman Hedders LS ENGINE SWAP CAST EXHAUST MANIFOLDS; RAW STEEL 68740

Hedman Hedders has been manufacturing tubular steel manifolds-- Better known as headers, since 1954. We've always been on the the cusp of fresh designs for new vehicle models from Detroit, and whatever creative engine swap applications you hot rodders have come up with over the last 60+ years. Every so often, something comes along that sends the automotive hobby into a frenzy, and around the turn of the century, the LS engine was put into use by General Motors. It only took a couple of short production years before this innovative, next-generation SB Chevy started to find their way into classic American Musclecars, like Camaros, Chevelles, EL Caminos and C10 trucks. Today, the LS engine is the staple of the classic car hobby, and has even found its way into the import/sport compact market. It is no longer unusual to find one of these efficient, compact powerplants in a Nissan 240SX, Mazda Miata or Porsche. While Hedman Hedders has thoughtfully designed application specific headers (with Trans-Dapt and Hamburger's pitching in with engine mounts and engine swap oil pans) that fit right in and provide excellent performance, the shear variety of vehicles LS engines find their way into means it would be impossible to economically offer a specific design for everything. In response to the demand for an LS header that will work for these less popular LS swap projects, Hedman Hedders now offers an LS Engine Swap Cast manifold Set that fits tight against the engine block for maximum clearance-- But larger, smoother exhaust runners and ports to offer exhaust flow that blows the factory manifolds away. This set of LS manifolds is uncoated. They are cleaned up after casting and oiled to prevent corrosion during shipping and handling. For coated models, check out Hedman Hedders #'s 68743 (Black Maxx Black ceramic coating), 68746 (Polished Silver Ceramic coating), or 68748 (Matte Silver ceramic coating)

• Ideal For Swapping an LS Engine into Classic American Cars and Trucks.
• Super Low Profile Keeps Collector and Runners Close To The Engine Block For Exceptional Clearance In Radical, Custom Builds.
• Smooth Flowing Ports and Runners Provide Better Performance Than Factory LS Manifolds.
• Heavy-Duty Cast Steel Construction is Virtually Indestructible.
• Limited Lifetime Warranty
• Backed By Over 60 Years Of Exhaust Experience.

Attributes:

• GTIN: 00732611687409
• Brand Name: Hedman Hedders
• Manual Transmission - Floor: Yes
• Material: Cast Steel
• O2 Sensors Included: No
• Port Shape: Round
• Power Steering: Yes
• Product Details: Engine swap exhaust manifolds for installing an LS engine into Pre-1974 GM cars and trucks, and non-traditional LS engine/vehicle chassis combinations
• Tube Design: Cast manifold
• Tube Diameter: 1-5/8 in.
• Collector Bolts Included: Yes
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Installation Notes: Exhaust Adapter Kit available separately. Order Hedman #00740
• Engine: Chevy LS Series
• Product Type: Cast Manifolds
• Header Finish: Uncoated
• Vehicle Use: A-Body (GM) 1964-67
• Collector Attachment: 2-1/2 in.
• Collector Diameter: 2-1/2 in.
• Collector Size: 2-1/2 in.
• Flange Thickness: 0.375 in.
• Primary Tube Diameter (in): 1.625 in.
• Tube Size: 1-5/8 in.
• E.O. #: No
• Bolts/Studs Included: Yes
• Gasket Or Seal Included: Yes
• Header Style: Manifold
• Air Conditioning: Yes
• Automatic Transmission - Column: No
• Automatic Transmission - Floor: Yes
• Color: Raw Cast
• Finish: Uncoated
• Finish Type: Uncoated
• Head Style: Factory Profile
• Head Type: Factory Heads
• Manual Transmission - Column: No

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.500 x 8.500 x 22.000 inches
• Weight: 32.000 lb
