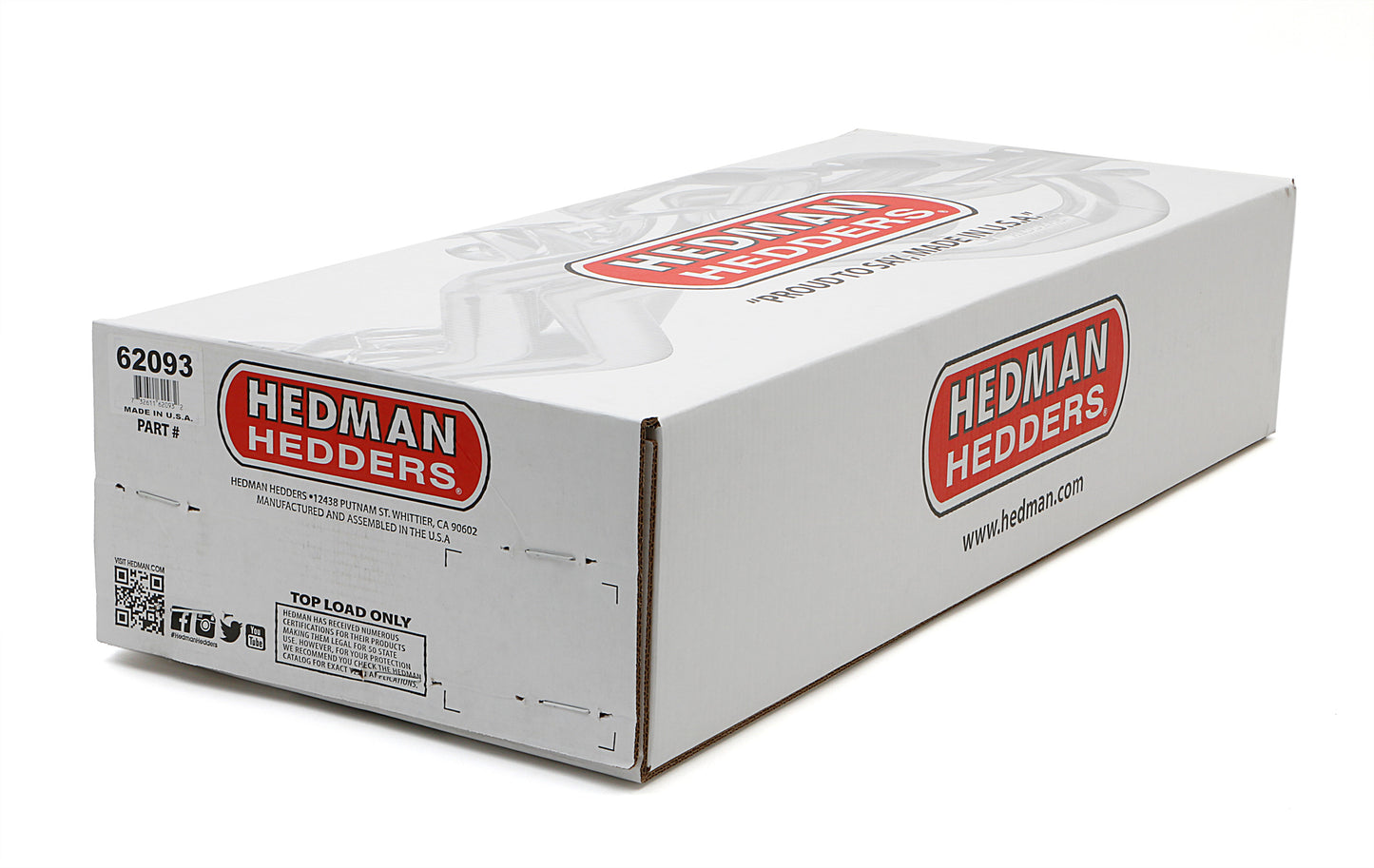

Hedman Hedders STAINLESS STEEL-1982-91 SB CHEVY TRUCKS & SUVS- FULL LENGTH- BLACK MAXX 62093

• 100% Premium T304 Stainless Steel Flange and Tube Construction.
• T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611620932
• Brand Name: Hedman Hedders
• Flange Style: Standard
• Replacement Head Flange Gasket: 27520
• Manual Transmission - Column: No
• Material: T304 Stainless Steel
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: LONG TUBES
• Tube Diameter: 1-5/8 in.
• Tube Length: Long Tubes
• Tube Material Thickness: 16g
• Tube Size: 1-5/8 in.
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Long Tube
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
• Variations: 69096, 69890
• Cylinder Head Port Shape: Oval
• Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Header Material: T304 Stainless Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.625 in.
• Primary Tube Gauge: 16g
• Tuned: No
• Weld-Up: No
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Replacement Gasket: 27520
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Header Construction: T304 Stainless
• E.O. #: No
• Transmission Notes: May encounter clutch shaft interference. If so, use 69092, 69093 or 69892
• Manual Transmission - Floor: Yes
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Product Info: Manufactured using 304 Stainless steel then HTC Ceramic-Metallic Coated. Sturdy 3/8 in. Flanges and 16 gauge tubing
• Notes: 67-91 1/2, 3/4, 1 Ton Chev. Truck 2-4WD 283-400
• Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
• Collector Diameter: 3 in.
• Tube Style: Long Tubes
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.250 x 18.250 x 9.630 inches
• Weight: 34.000 lb

PDF:

62090
