Hedman Hedders STANDARD HTC COATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN 69176
Hedman Hedders STANDARD HTC COATED HEADERS; 67-87 CHEVY C10/C20 WITH BB CHEVY; 1-3/4 IN. TUBE DIA; SQUARE PORT; 3 IN. COLL.; MID-LENGTH DESIGN 69176
HEDMAN HEDDERS
Part #
HEDMAN-69176
UPC #
732611691765
Regular price
$815.14 USD
Regular price
$899.65 USD
Sale price
$815.14 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611691765
- Brand Name: Hedman Hedders
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27530
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 3 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
- Transmission Compatibility: Manual Transmission

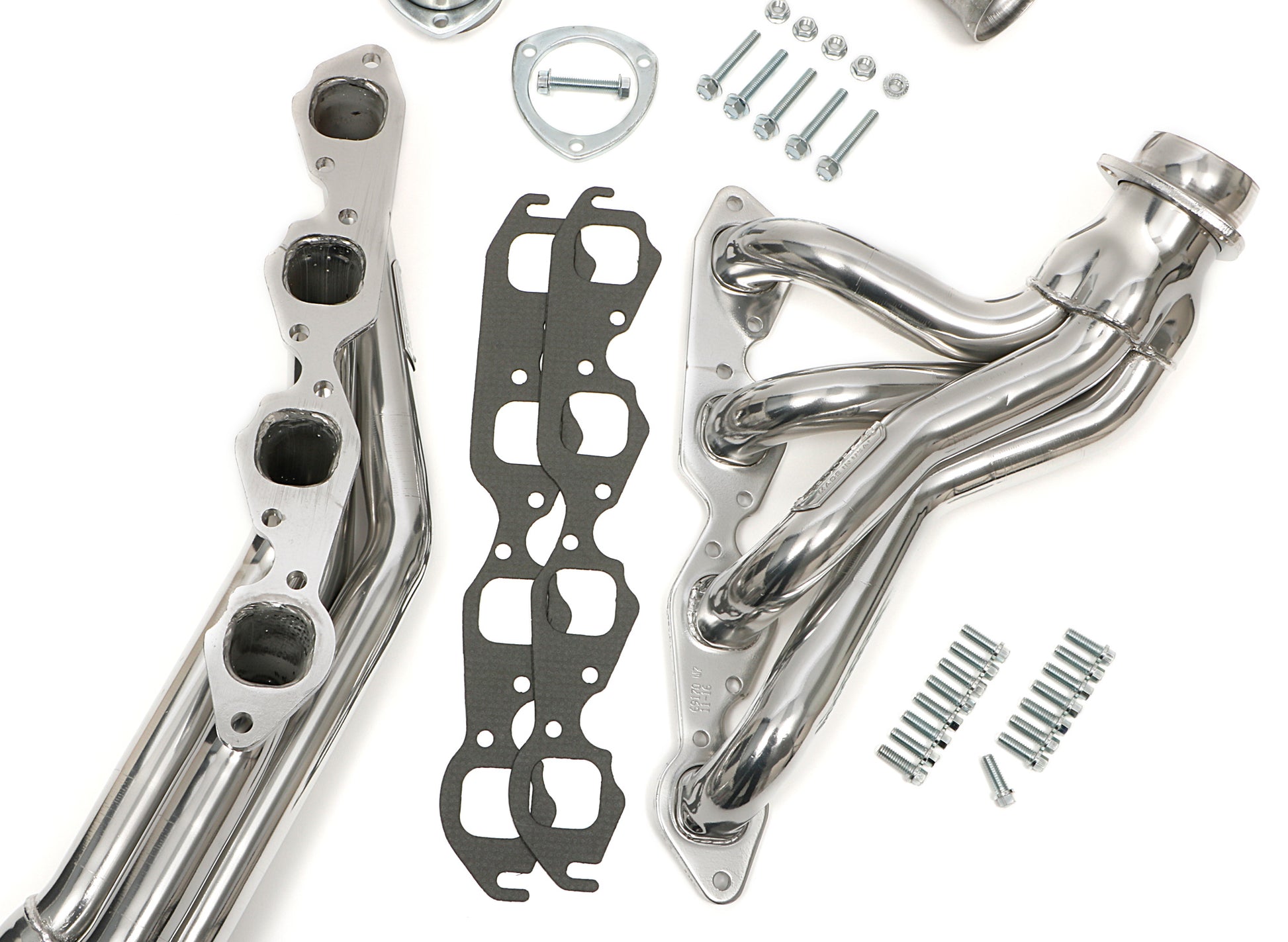

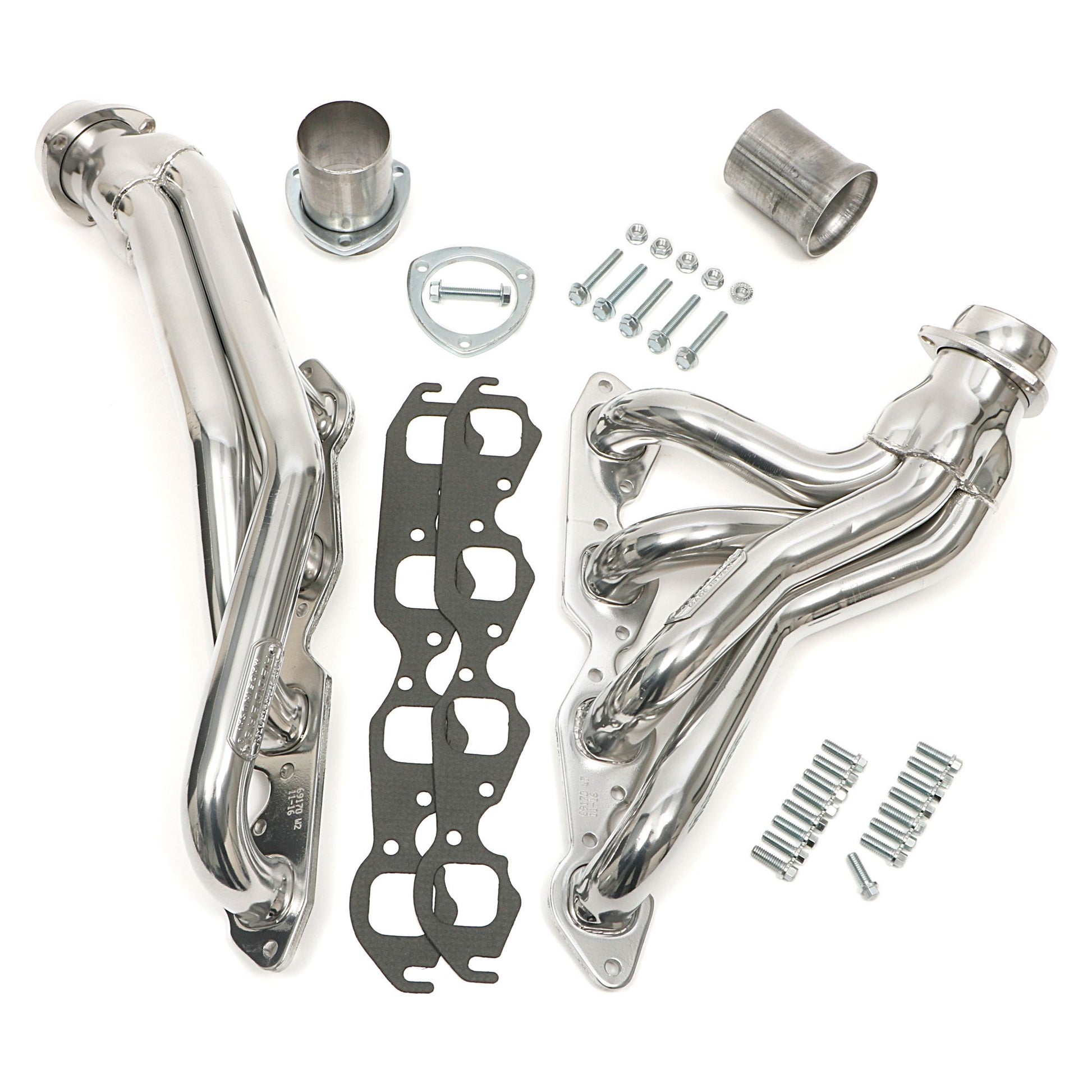

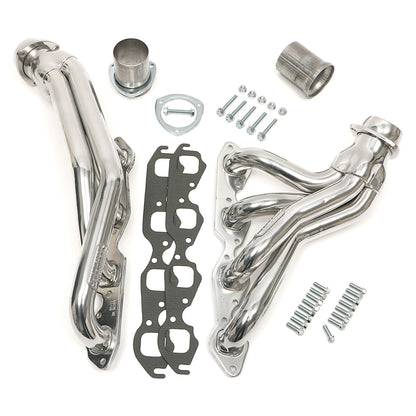

- Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
- Installation Notes: Must use with Right Angle Boot spark plug wires.
- Notes: 68-87 GM 1/2 and 3/4 Ton Truck, SUV 396-502 2WD
- Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
- Collector Diameter: 3 in.
- Transmission Notes: TAILSHAFT Style Crossmember Only. Not for Bellhousing Style Crossmember. (14)
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Bolts/Studs Included: Yes
- Flange Thickness: 0.375 in.
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Flange Style: Standard
- Replacement Head Flange Gasket: 27550
- Header Port Shape: Square
- IMPORTANT!: Vehicle must be setup as if came from the factory with a Big Block Chevy engine.
- Manual Transmission - Column: Yes
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Materials: Constructed using mild steel 14g Tubes and 3/8 in. flanges.
- Port Shape: Square
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Tube Design: MID-LENGTH
- Tube Diameter: 1-3/4 in.
- Tube Length: Mid-Length Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-3/4 in.
- Tube Style: Mid-Length
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.75 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
Extended Information:
- Country of Origin: United States
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 30.500 x 17.000 x 8.500 inches
- Weight: 26.500 lb
