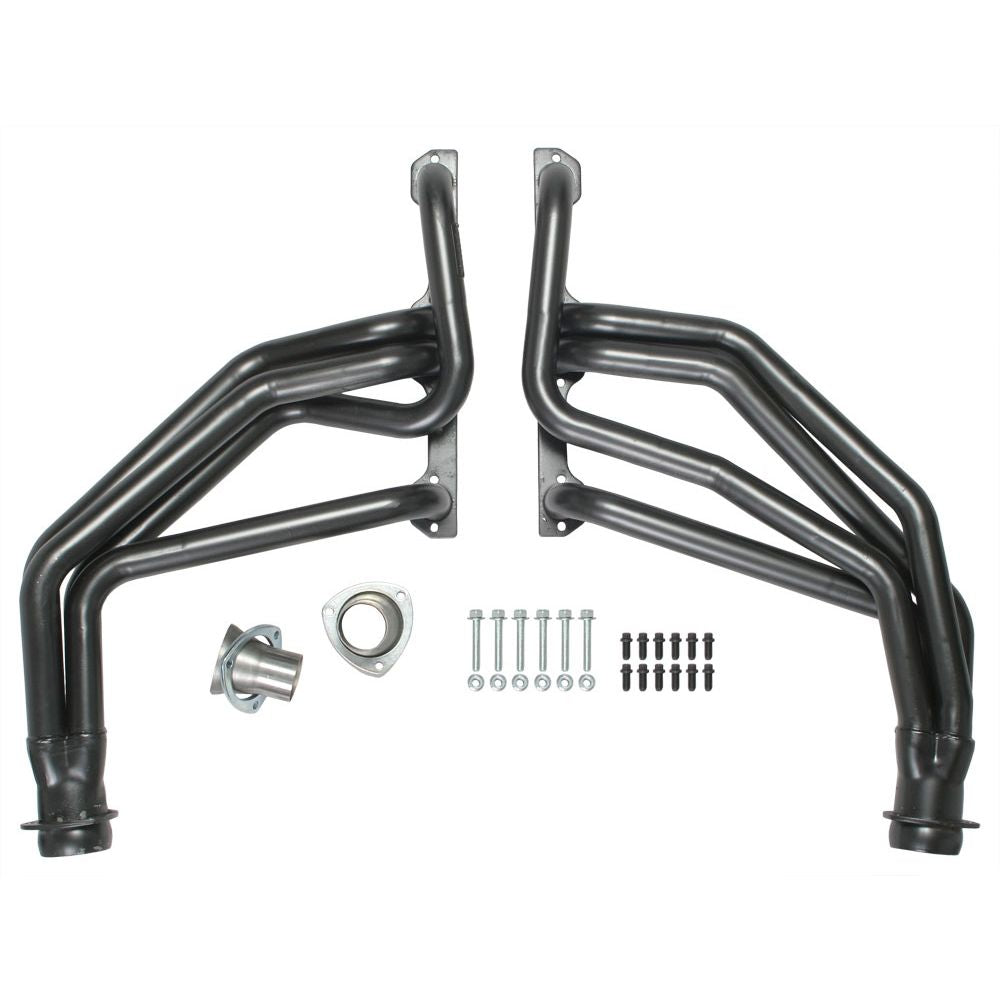

Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN 69099
Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN 69099
HEDMAN HEDDERS
Part #
HEDMAN-69099
UPC #
732611690997
Regular price
$442.72 USD
Regular price
$489.99 USD
Sale price
$442.72 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611690997
- Brand Name: Hedman Hedders
- Exhaust System Dia: 2-1/2 in.
- Finish: Uncoated
- Finish Type: Uncoated Mild steel
- Flange Style: Standard
- Replacement Head Flange Gasket: 27690
- Header Port Shape: D-Port
- Key Feature: D-Port Heads
- Manual Transmission - Column: No
- Manual Transmission - Floor: No
- Material: Mild Steel
- Port Shape: D-port
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Special Engine Notes: D-PORT
- Tube Design: LONG TUBES
- Tube Diameter: 1-5/8 in.
- Tube Length: Long Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-5/8 in.
- Variations: 66099
- Cylinder Head Port Shape: D-port
- Header Finish: Uncoated
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
- Replacement Gasket: 27690
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 3 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
- Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
- Notes: 67-91 GM. Full Size Blazer, Jimmy 283-400 2-4WD
- Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
- Collector Diameter: 3 in.
- Tube Style: Long Tubes
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Bolts/Studs Included: Yes
- Flange Thickness: 0.3125 in.
- Gasket Or Seal Included: Yes
- Header Style: Long Tube
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
Extended Information:
- Country of Origin: United States
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 40.000 x 16.000 x 9.000 inches
- Weight: 35.000 lb
