Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN (FOR CLOSE RATIO STEERING BOXES) 68650
Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN (FOR CLOSE RATIO STEERING BOXES) 68650
HEDMAN HEDDERS
Part #
HEDMAN-68650
UPC #
732611686501
Regular price
$327.16 USD
Regular price
$362.88 USD
Sale price
$327.16 USD
Unit price
/
per
Product Description
Product Description
- Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
- The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611686501
- Brand Name: Hedman Hedders
- Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
- Product Info: This set of headers has been designed specifically for use on vehicles with a close-ratio steering box.
- Collector Diameter: 3 in.

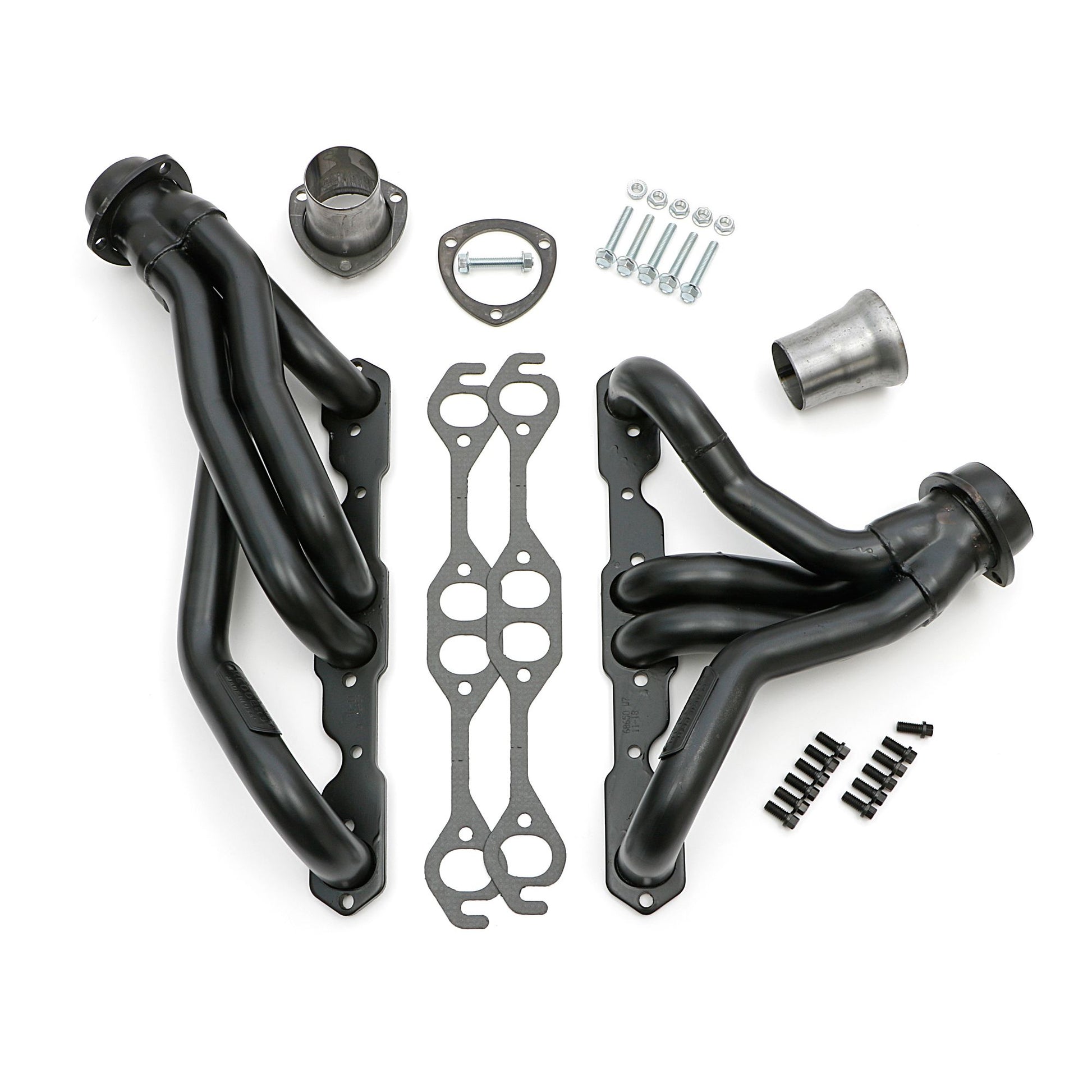

- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Bolts/Studs Included: Yes
- Flange Thickness: 0.3125 in.
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length (close ratio steering)
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: No
- Automatic Transmission - Floor: No
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Exhaust System Dia: 2-1/2 in.
- Finish: Uncoated
- Finish Type: Uncoated Mild steel
- Flange Style: Standard
- Replacement Head Flange Gasket: 27520
- Header Port Shape: Oval Port
- Key Feature: Close-Ratio Steering Box
- Manual Transmission - Column: No
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Port Shape: Oval
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Tube Design: MID-LENGTH (close ratio steering)
- Tube Diameter: 1-5/8 in.
- Tube Length: Mid-Length Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-5/8 in.
- Tube Style: Mid-Length (close ratio steering)
- Variations: 68656
- Cylinder Head Port Shape: Oval
- Header Finish: Uncoated
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27520
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 3 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
Extended Information:
- Country of Origin: United States
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order

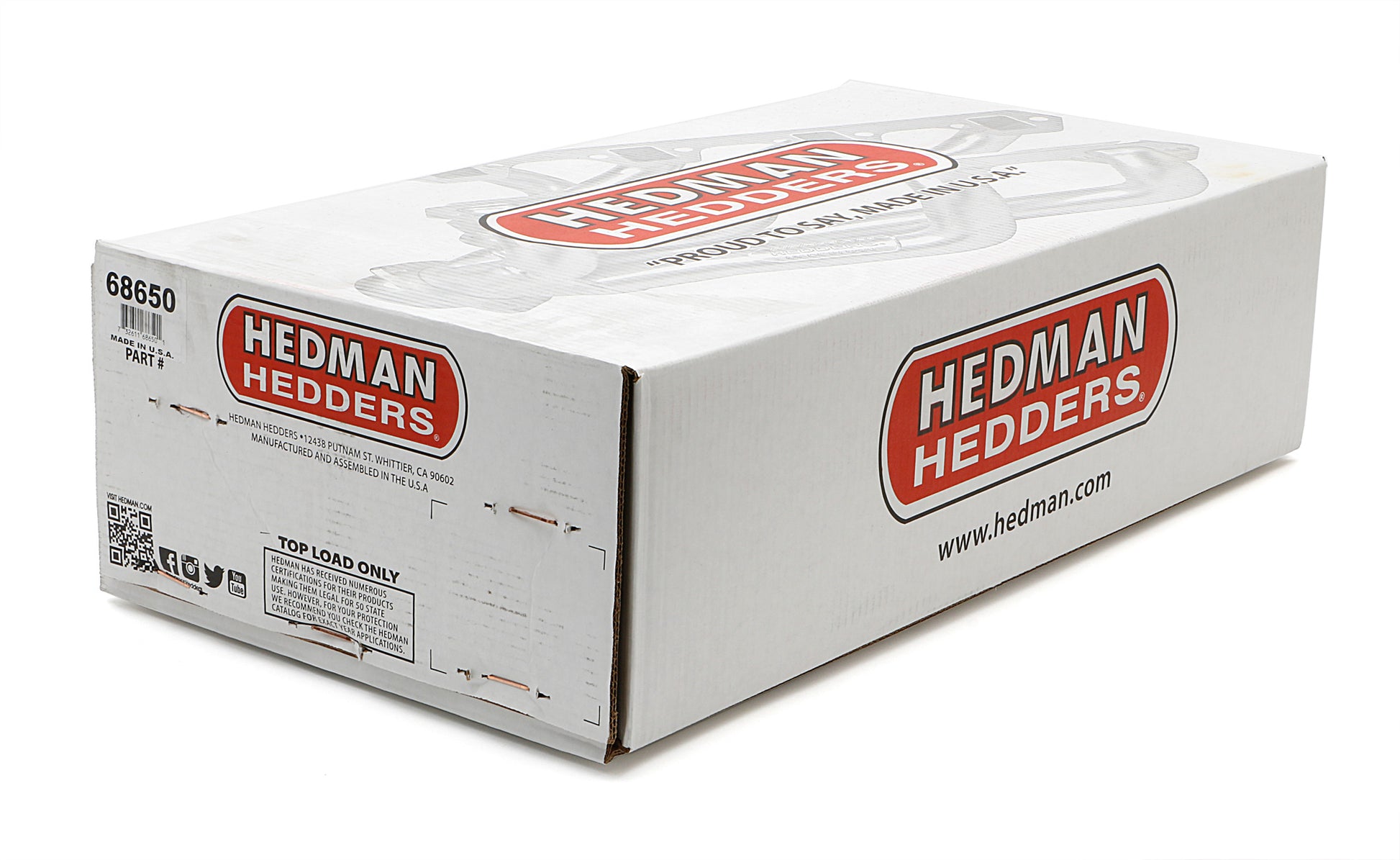

Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 16.000 x 28.000 x 8.000 inches
- Weight: 23.000 lb
