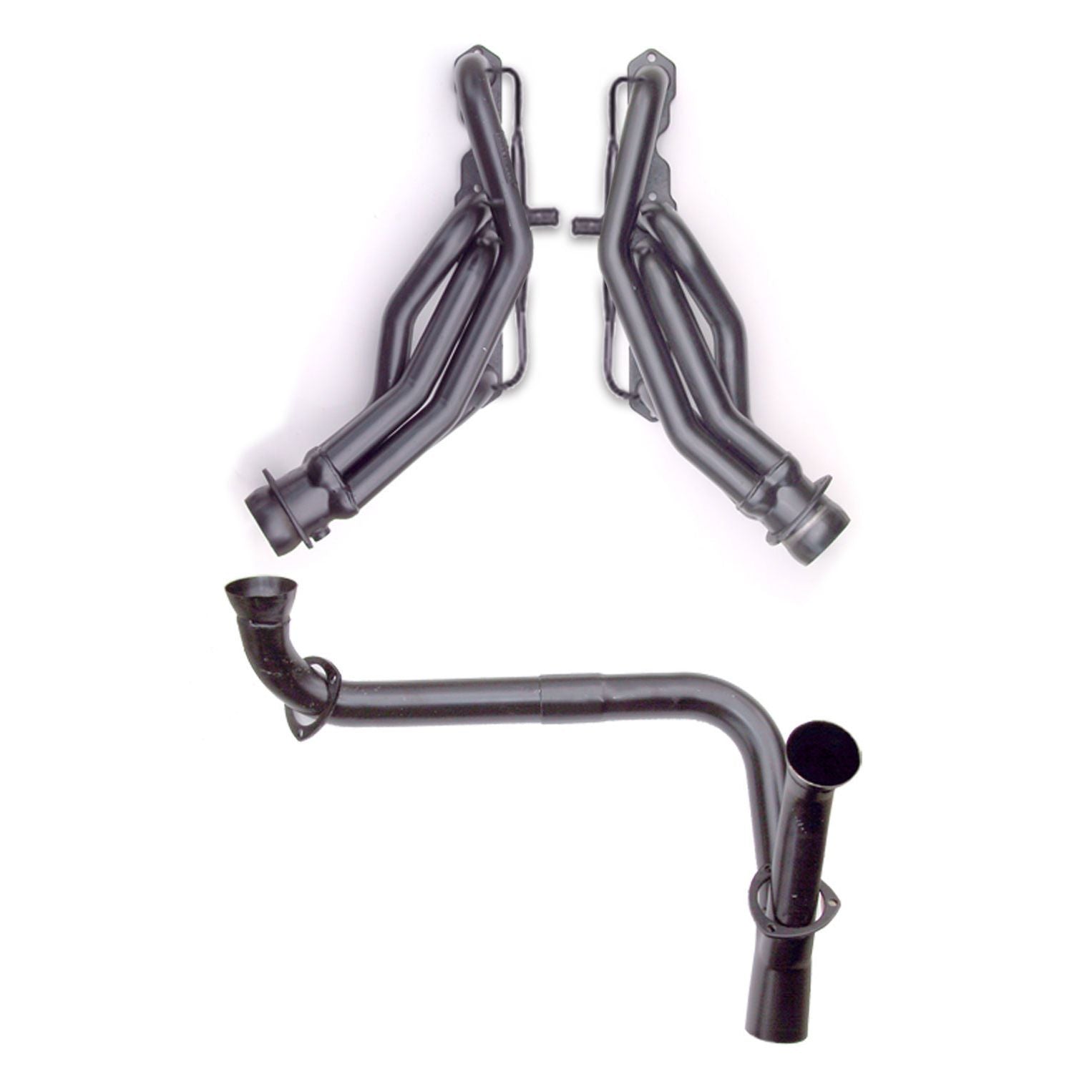

Hedman Hedders STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN 69471

• Handcrafted, Mild Steel Construction.
• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611694711
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Gasket Or Seal Included: Yes
• Reducers Included: No
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: Stock
• Collector Style: BALL and SOCKET Style (Gasketless)
• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
• Finish: Uncoated
• Flange Style: Standard
• Header Port Shape: Oval Port
• Key Feature: With A.I.R.
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Oval
• Power Steering: Yes
• Tube Diameter: 1-5/8 in.
• Tube Material Thickness: 16g
• Tube Style: Mid-Length
• Variations: 61476, 63471
• Cylinder Head Port Shape: Oval
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Tuned: No
• Weld-Up: No
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: Yes
• Quantity: Sold as a kit.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27520
• Installation Hardware Included: Yes
• with EGR: No
• Y-Pipe Included: Yes
• Header Construction: Standard-Duty
• E.O. #: Yes
• with A.I.R. System: Yes
• O2 Provision: Yes
• Emissions Notes: EO# D167-29 (click here for covered vehicles in document on ARB.CA.GOV website)
• Tube Design: MID-LENGTH
• IMPORTANT!: 4X4, Manual trans. models w/ Hydraulic clutch. Doesn't work with Slave cylinder.
• Notes: 88-95 1/2, 3/4 Ton Truck/SUV 5.0-5.7L w/A.I.R. 2-4WD
• Collector Attachment: Stock
• Collector Diameter: Stock
• Exhaust System Dia: 3 in.
• Flange Thickness: 0.3125 in.
• Primary Tube Diameter (in): 1.625 in.
• Primary Tube Gauge: 16g
• Reducer Outlet Size: Factory hookup
• Tube Length: Mid-Length Tubes
• Tube Size: 1-5/8 in.
• Contents: Headers, head flange gaskets, Y-Pipe, mounting hardware
• Finish Type: Uncoated Mild steel
• Header Finish: Uncoated
• Package Contents: Headers, head flange gaskets, Y-Pipe, mounting hardware

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 29.000 x 16.500 x 8.250 inches
• Weight: 35.000 lb

PDF:

PDF:

69471
