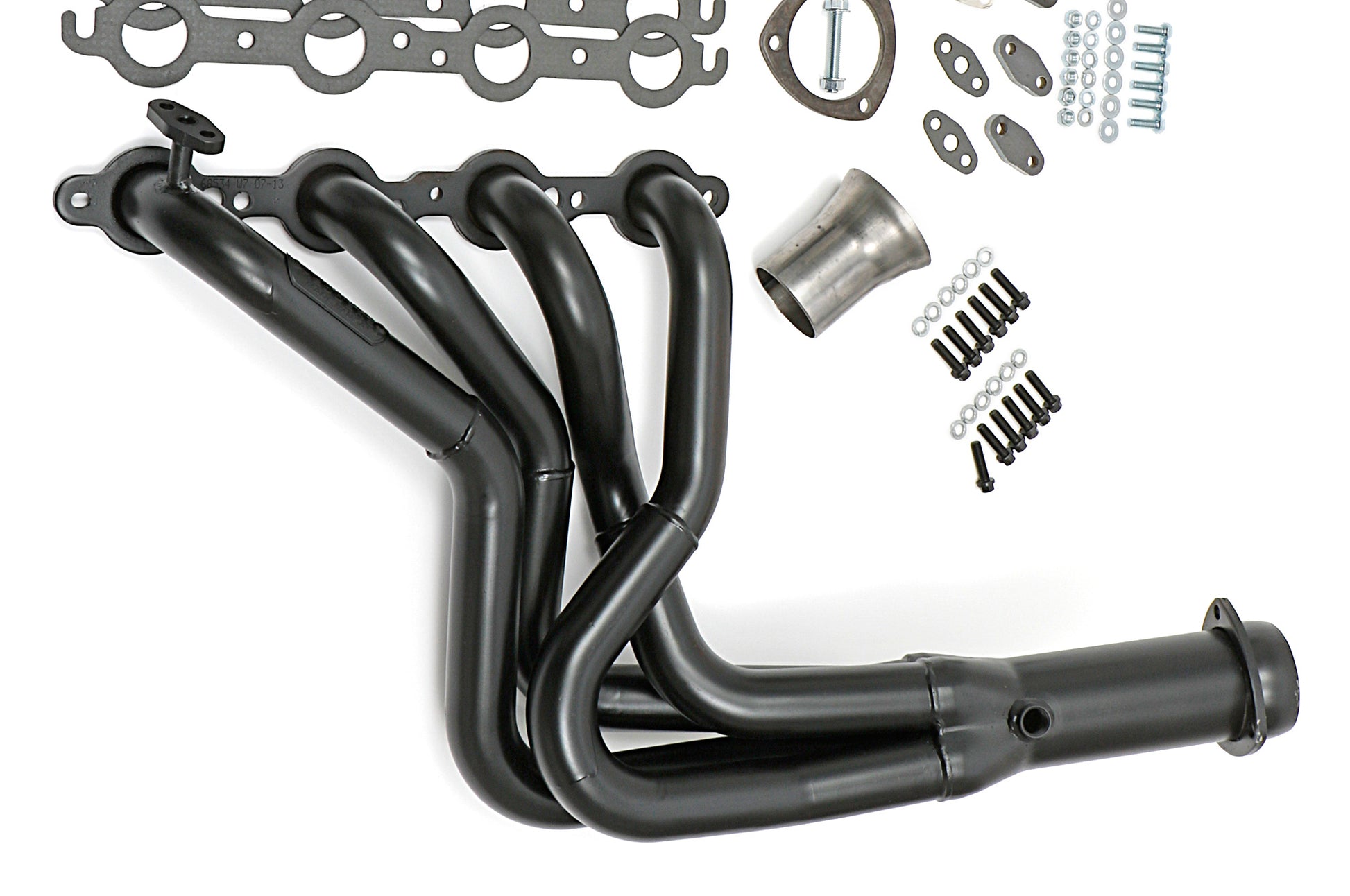

Hedman Hedders STEPPED-HTC HEADERS FOR 1998-2002 CHEVROLET CAMARO OR PONTIAC FIREBIRD; 5.7L LS ENGINE; 1-5/8 IN. TO 1-3/4 IN. STEPPED TUBE DIAMETER; 3 IN. BALL/SOCKET COLLECTOR; UNCOATED MILD STEEL CONSTRUCTION 68534

• Handcrafted, Mild Steel Construction.
• STEPPED, Long Tube Header Design Is a Race-Proven Configuration. The Primary Tubes on This Header Step Up In Diameter To Provide Excellent Horsepower and Torque Increases Across The Entire RPM Range.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611685344
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Long Tube- Stepped
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: No
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: Uncoated
• Finish Type: Uncoated Mild steel
• Flange Style: Standard
• Replacement Head Flange Gasket: 27470
• Header Port Shape: Round
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Round
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: LONG TUBES- STEPPED
• Tube Diameter: 1-5/8 in. x 1-3/4 in.
• Tube Length: Long Tubes
• Tube Size: 1-5/8 in. x 1-3/4 in.
• Variations: 66534
• Cylinder Head Port Shape: Round
• Header Finish: Uncoated
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27470
• Installation Hardware Included: Yes
• O2 Provision: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Header Construction: Standard-Duty
• E.O. #: No
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Installation Notes: Y-pipe available and recommended for an easier install.
• Notes: 98-02 Camaro, Firebird, T/A LS1
• Collector Diameter: 3 in.
• Primary Tube Diameter (in): 1.625 in. x 1.75 in.
• Tube Style: Long Tubes (Stepped)
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Tube Material Thickness: 16g
• Primary Tube Gauge: 16g

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 38.000 x 18.000 x 9.000 inches
• Weight: 34.000 lb
