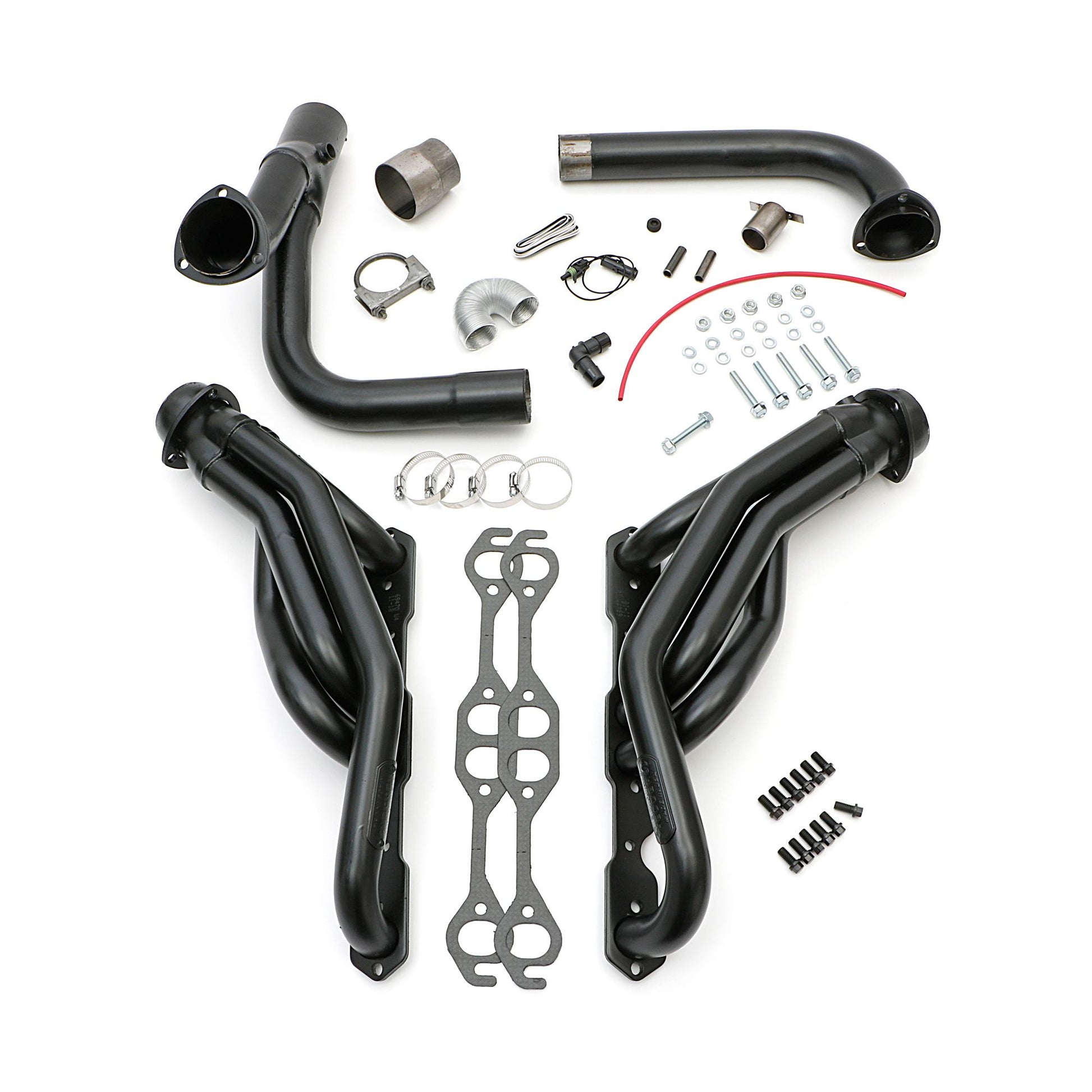

Hedman Hedders UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; MID-LENGTH DESIGN 69470
Hedman Hedders UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; MID-LENGTH DESIGN 69470
HEDMAN HEDDERS
Part #
HEDMAN-69470
UPC #
732611694704
Regular price
$646.66 USD
Regular price
$714.33 USD
Sale price
$646.66 USD
Unit price
/
per
Product Description
Product Description
- Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
- The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611694704
- Brand Name: Hedman Hedders
- Bolts/Studs Included: Yes
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: No
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: Stock
- Collector Style: BALL and SOCKET Style (Gasketless)
- Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
- Finish: Uncoated
- Flange Style: Standard
- Header Port Shape: Oval Port
- Manual Transmission - Column: No
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Power Steering: Yes
- Tube Diameter: 1-5/8 in.
- Tube Material Thickness: 16g
- Tube Style: Mid-Length
- Variations: 69476, 69473
- Cylinder Head Port Shape: Oval
- Header Material: Mild Steel
- Tuned: No
- Weld-Up: No
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: Yes
- Quantity: Sold as a kit.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27520
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: Yes
- Header Construction: Standard-Duty
- E.O. #: Yes
- O2 Provision: Yes
- Tube Design: MID-LENGTH
- IMPORTANT!: 4X4, Manual trans. models w/ Hydraulic clutch. Doesn't work with Slave cylinder.
- Notes: 88-95 1/2, 3/4 Ton Truck/SUV 5.0-5.7L 2-4WD
- Collector Attachment: Stock
- Collector Diameter: Stock
- Exhaust System Dia: 3 in.
- Flange Thickness: 0.3125 in.
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Reducer Outlet Size: Factory hookup
- Tube Length: Mid-Length Tubes
- Tube Size: 1-5/8 in.
- Contents: Headers, head flange gaskets, Y-Pipe, mounting hardware
- Finish Type: Uncoated Mild steel
- Header Finish: Uncoated
- Package Contents: Headers, head flange gaskets, Y-Pipe, mounting hardware
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 29.000 x 16.500 x 8.250 inches
- Weight: 33.000 lb
