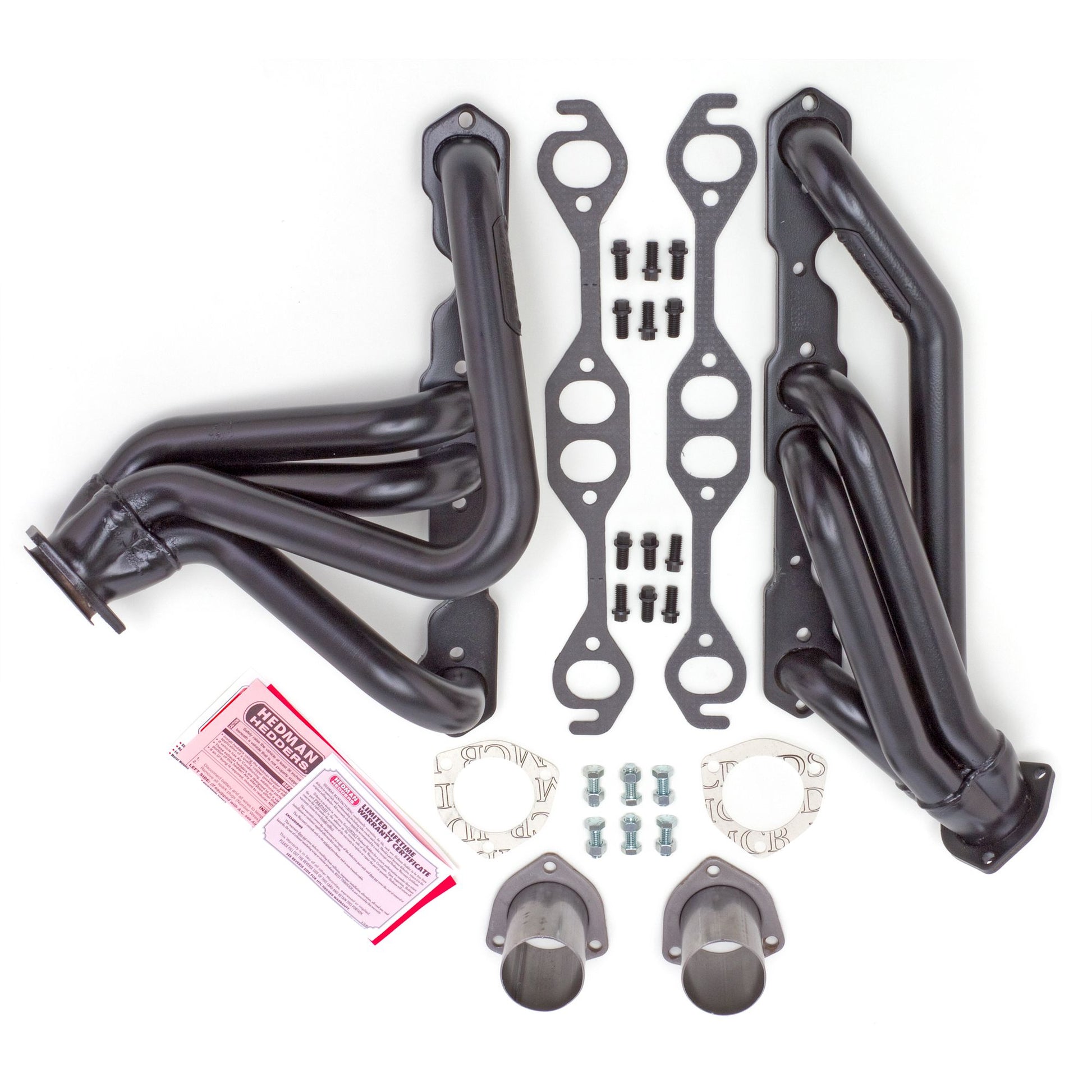

Hedman Hedders VEGA/MONZA MID-LENGTH HEADERS 1-1/2 IN.- UNCOATED 68330

• Handcrafted, Mild Steel Construction.
• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Classic 3-Bolt Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611683302
• Brand Name: Hedman Hedders
• Header Construction: Standard-Duty
• E.O. #: No
• Footnotes: 148. Must use Trans Dapt Motor Mount #4686, TH350 and 168 tooth flywheel
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Notes: 71-77 Vega, Moza Chevrolet V8 swap
• Collector Diameter: 2-1/2 in.
• Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
• Tube Material Thickness: 16g
• Primary Tube Gauge: 16g
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Mid-Length Tube
• Reducers Included: Yes
• Collector Size: 2-1/2 in.
• Collector Style: 3-Bolt Gasket Style Flange
• Exhaust System Dia: 2-1/2 in.
• Finish: Uncoated
• Finish Type: Uncoated Mild steel
• Flange Style: Standard
• Replacement Head Flange Gasket: 27500
• Header Port Shape: Round
• Material: Mild Steel
• Port Shape: Round
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: MID-LENGTH
• Tube Diameter: 1-1/2 in.
• Tube Length: Mid-Length Tubes
• Tube Size: 1-1/2 in.
• Tube Style: Mid-Length
• Variations: 68336
• Cylinder Head Port Shape: Round
• Header Finish: Uncoated
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.50 in.
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27500
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 2-1/2 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 28.000 x 16.000 x 8.000 inches
• Weight: 22.000 lb
