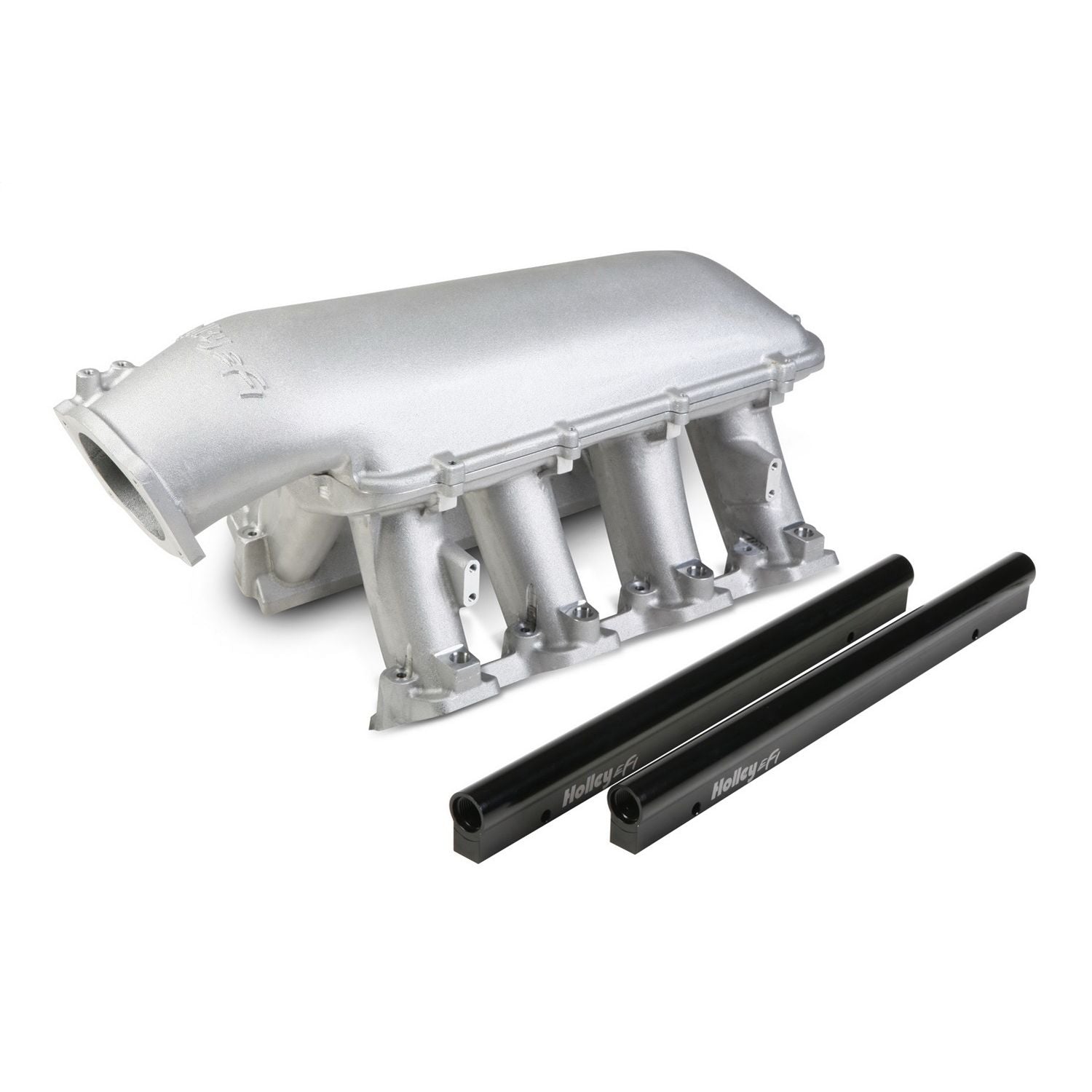

Holley Hi-Ram Intake Manifold 300-124

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sand rails, pulling trucks, track, street-rod applications and more!

• Port Size 2.49 in. Height 1.21 in. Wide
• Standard LS3 Molded O-Ring Mounting Flange Gasket
• Plenum Top Gasket Type 3/32 in. Round O-Ring Cord

Attributes:

• GTIN: 00090127681695
• Brand Name: Holley
• Construction: Cast
• Cylinder Head Type: Standard
• Emission: Without EGR
• Engine Make/Size: GM LS7
• Finish: Satin
• Flange Type: EFI
• Front Height: 12.320 in.
• Fuel System Type: EFI
• Manifold Type: Hi-Ram
• Number of Carbs: None; For Fuel Injection
• Position: N/A
• Rear Height: 11.000 in.
• RPM Range: 1500-7000
• Usage: Street/Hi-Performance
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 24.0000 x 14.7500 x 13.0000 inches
• Weight: 35.0000 lb
