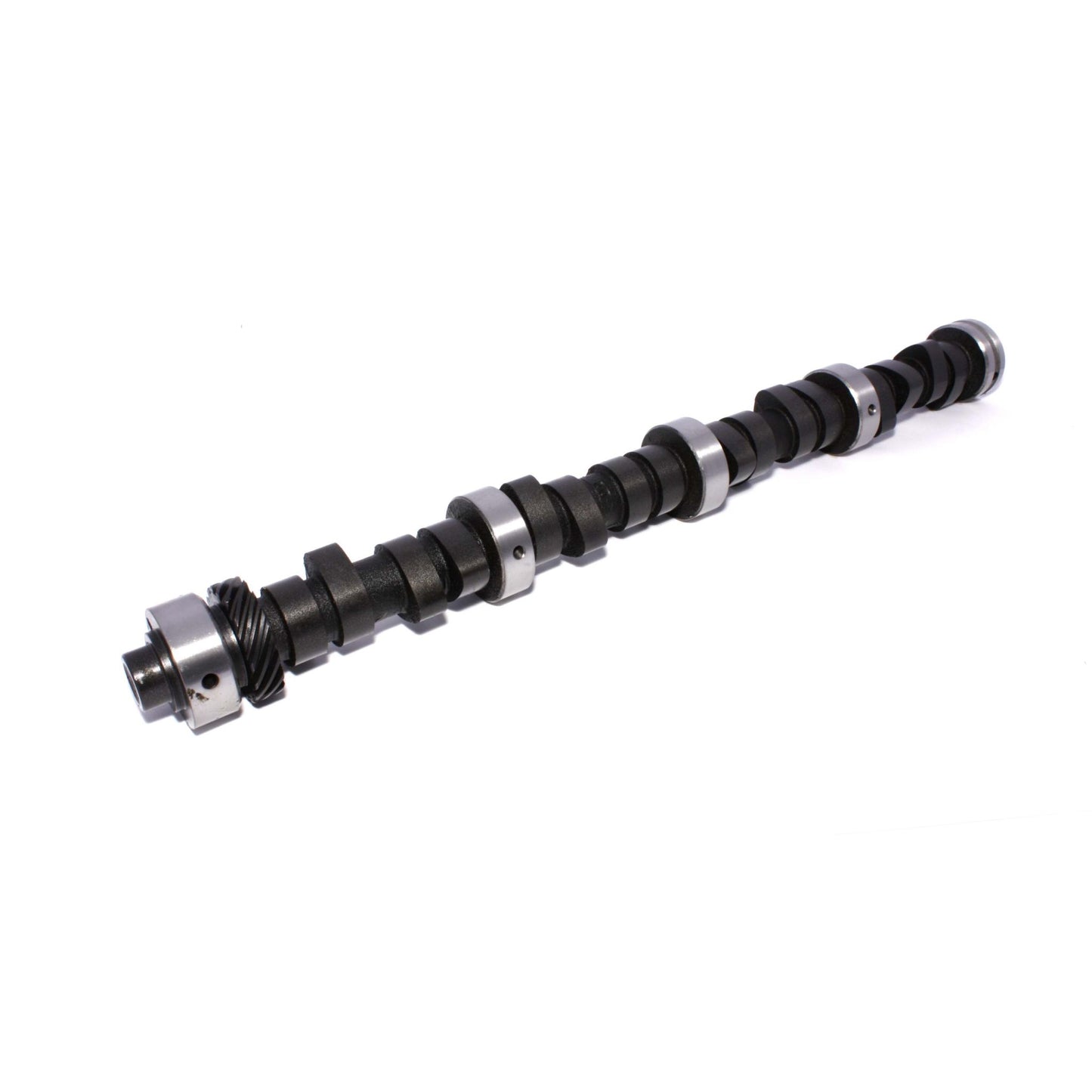

COMP Cams High Energy 206/206 Hydraulic Flat Cam for International Harvester 304-392 COMP-83-200-4

Attributes:

• GTIN: 00036584601128
• Brand Name: COMP Cams
• Assembly Lubricant Included: Yes
• Camshaft Material: Cast Iron
• Engine Family: International Harvester 304-393 c.i. 8 Cylinder (1970-1978)
• Cam and Lifter Kit Upgrade: CL83-200-4
• K-Kit Upgrade: K83-200-4
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK83-200-4
• Amazon ASIN: B001R9BTJE
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: High Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Flat Tappet
• Grind Number: 252H
• Basic Operating RPM Range: 800-4,500
• Intake Duration at .050 Inch Lift: 206
• Exhaust Duration at .050 inch Lift: 206
• Advertised Intake Duration: 252
• Advertised Exhaust Duration: 252
• Lobe Separation: 110
• Intake Valve Lift: 0.425
• Exhaust Valve Lift: 0.425
• Lifters Included: No
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 11.45 lb
