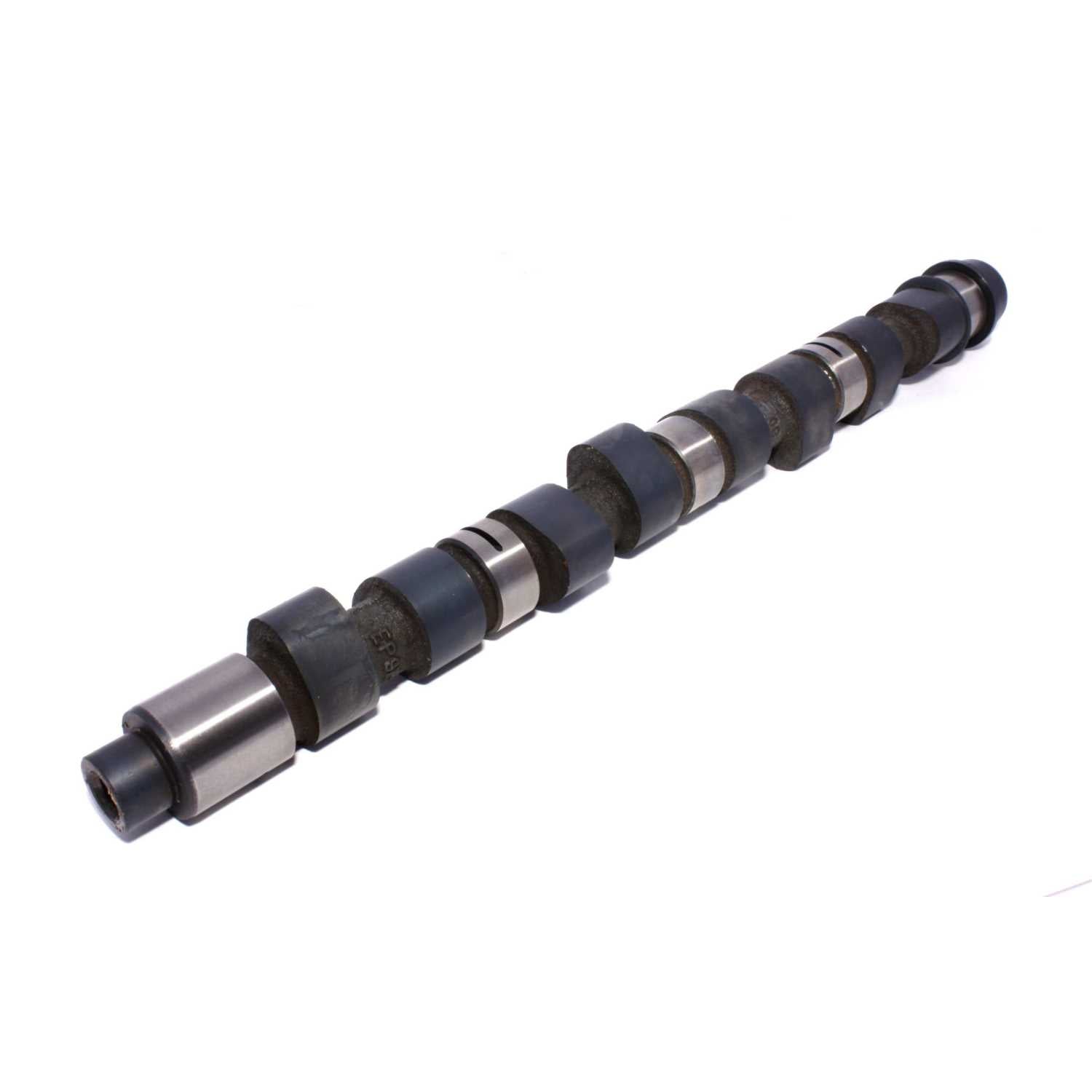

COMP Cams High Energy 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L COMP-22-127-6

Ideal for use with mainly stock components like rocker arms, intake manifolds, cylinder heads, compression ratio, torque converters and rear gear ratios, the High Energy camshaft grind family is a great choice for street performance applications. Offering a good blend of efficiency and performance, High Energy camshafts area easy on valvetrain components, lessening the likelihood of broken parts.

Attributes:

• GTIN: 00036584191162
• Brand Name: COMP Cams
• Camshaft Series: High Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Roller Swinging Follower
• Grind Number: 268H
• Basic Operating RPM Range: 1,500-5,200
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 224
• Advertised Intake Duration: 268
• Advertised Exhaust Duration: 268
• Lobe Separation: 108
• Intake Valve Lift: 0.46
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Exhaust Valve Lift: 0.46
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Material: Cast Iron
• Engine Family: Chrysler 2.2L, 2.5L SOHC 4 Cylinder (1981-1987)
• Cam and Lifter Kit Upgrade: CL22-127-6
• Lifter Type: Hydraulic Roller Swinging Follower
• Amazon ASIN: B005H89SQ2
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.1 x 3 x 2.7 inches
• Weight: 7.628 lb
