High-Flow Thread Adapter -AN Male to Metric Male

High-Flow Thread Adapter -AN Male to Metric Male

BOOST Products USA

Part #
GA-HD10M22-S
UPC #
4250815849073

Black Friday Sale On All November Long! No Code Needed!

Regular price $6.91 USD
Regular price $6.91 USD Sale price $6.91 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

High-Flow Thread Adapter -AN Male to Metric Male

The High-Flow Thread Adapter -AN Male to Metric Male is CNC machined from 6061-T6 aluminum and conforms to AN and JIC specifications. Like all BOOST Products fittings and adapters it is suitable for oil, water and fuel lines and resistant to E85 and methanol.

Key Features

  • CNC machined from 6061-T6 aluminum
  • Conforms to AN and JIC specifications
  • Suitable for fuel, E85, methanol, oil, water and pneumatic lines
  • Thread A: -10 AN / Dash 10 male
  • Thread B: M22x1.5 male
  • Finish: satin black or satin silver

Available Sizes

Variant Part No.

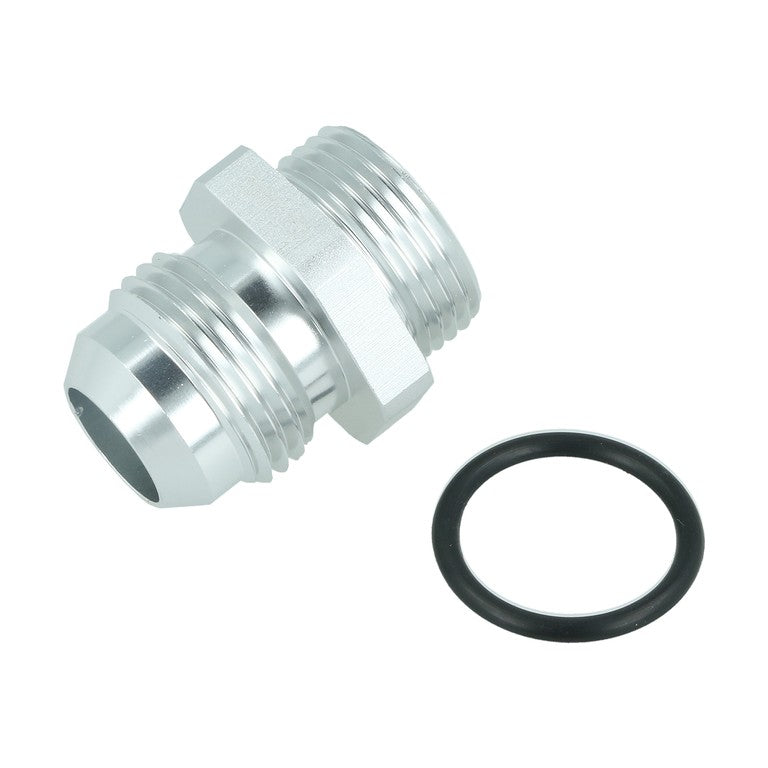

High Flow Adapter -10 AN male to M22x1.5 male with O-Ring, silver GA-HD10M22-S

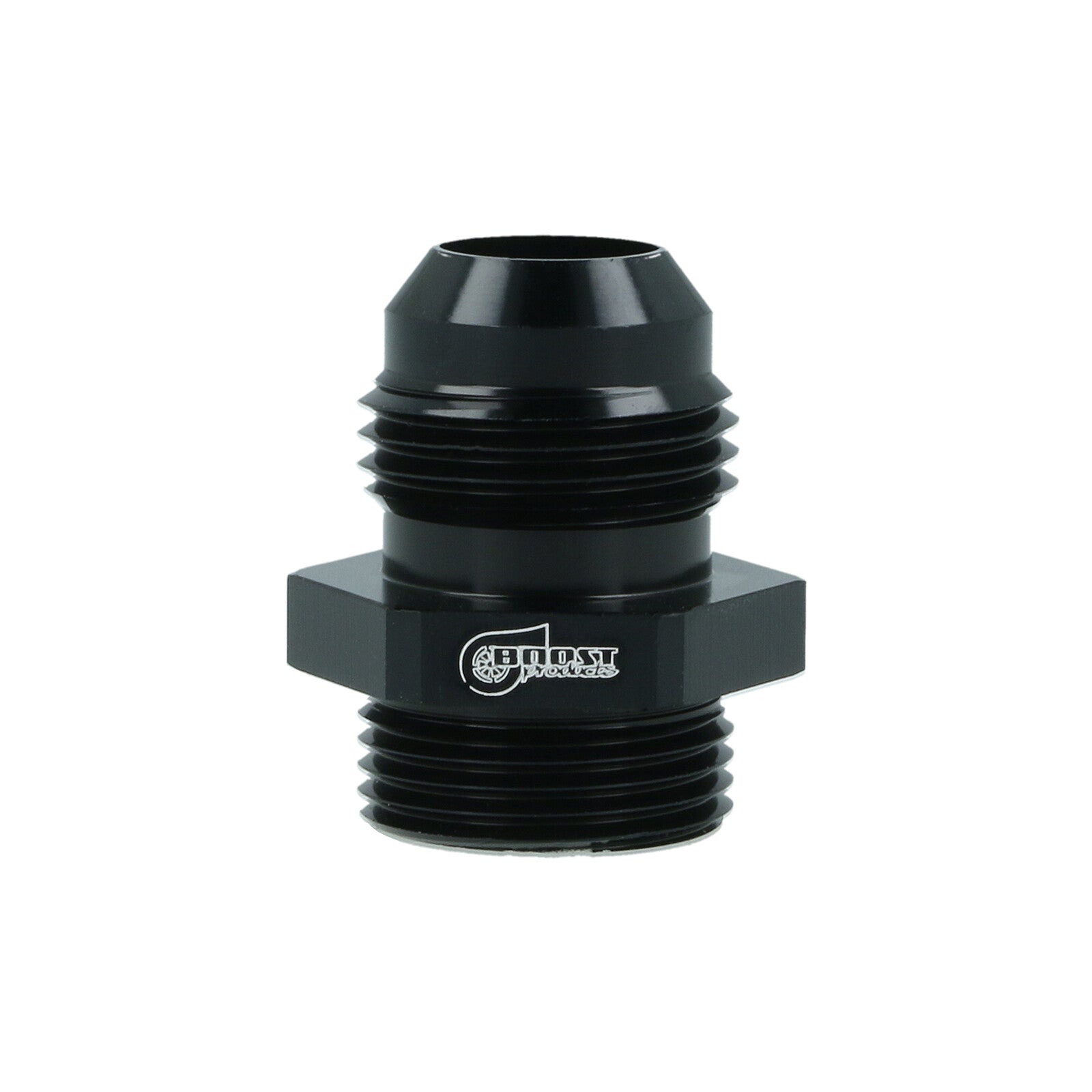

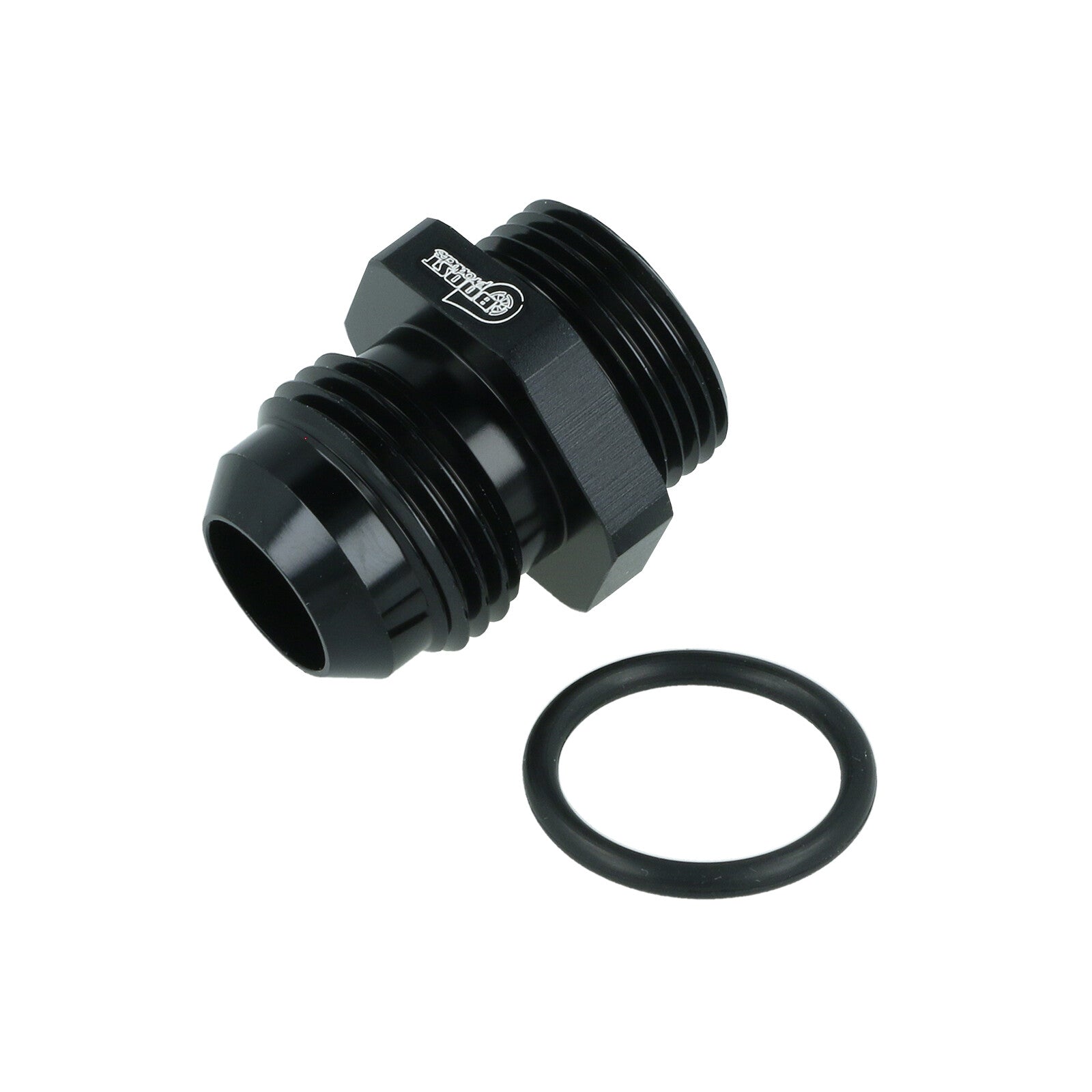

High Flow Adapter -10 AN male to M22x1.5 male with O-Ring, black GA-HD10M22-B

Frequently Asked Questions

How do I identify my AN size?

The dash number is the tube outer diameter in sixteenths of an inch, so -06 AN corresponds to a 3/8" tube. The thread sizes are 7/16"-20 for -04 AN, 9/16"-18 for -06 AN, 3/4"-16 for -08 AN, 7/8"-14 for -10 AN and 1 1/16"-12 for -12 AN.

Which AN size do I need for turbo oil lines?

For turbocharger plumbing, -04 AN is the usual choice for oil feed lines and -10 AN for oil return lines. For fuel, water and other lines, match the fitting to the existing ports and to the component manufacturer's recommendation.

Is it safe for E85 and methanol?

Yes. BOOST Products fittings and adapters are resistant to E85 and methanol and are also suitable for fuel, oil, water and air.
