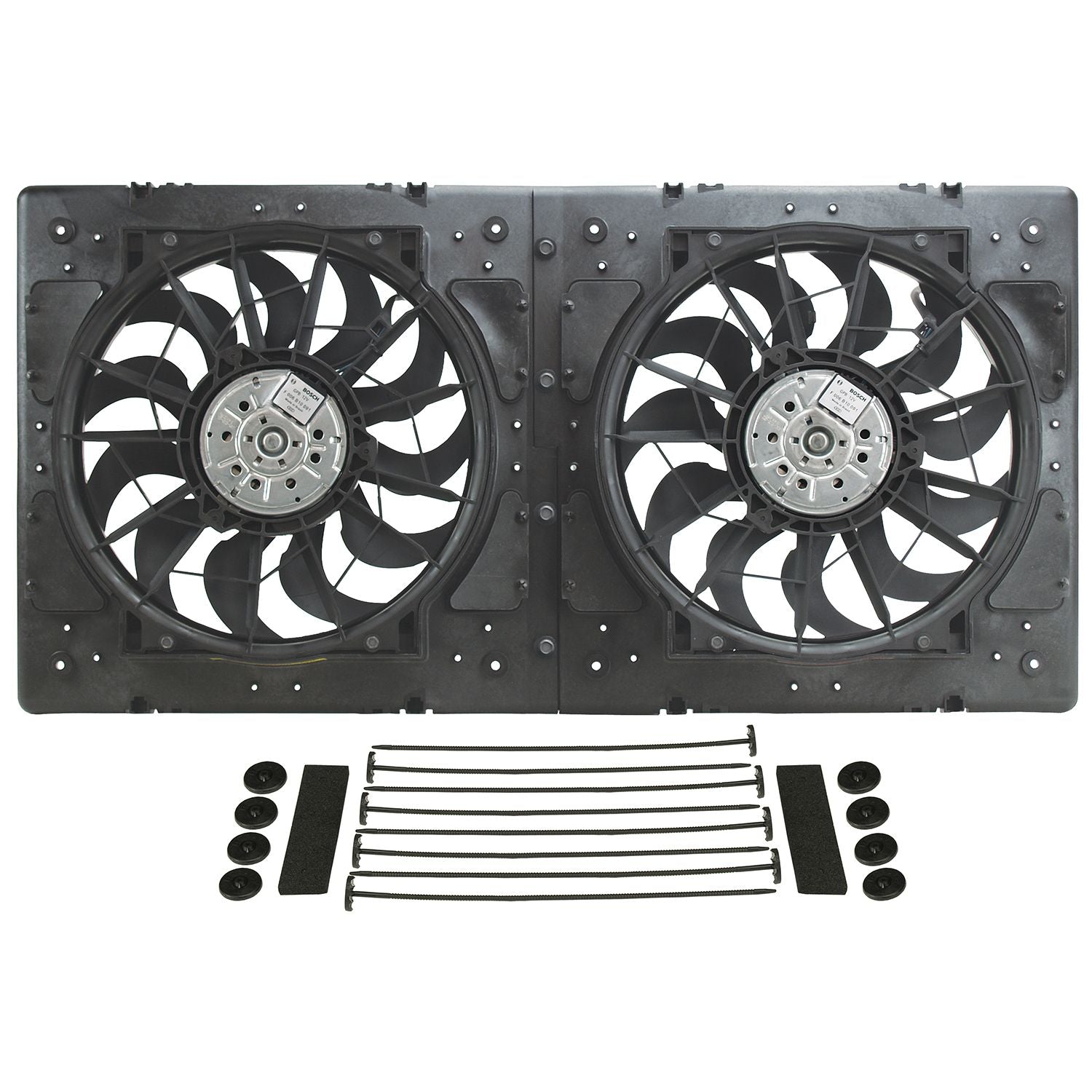

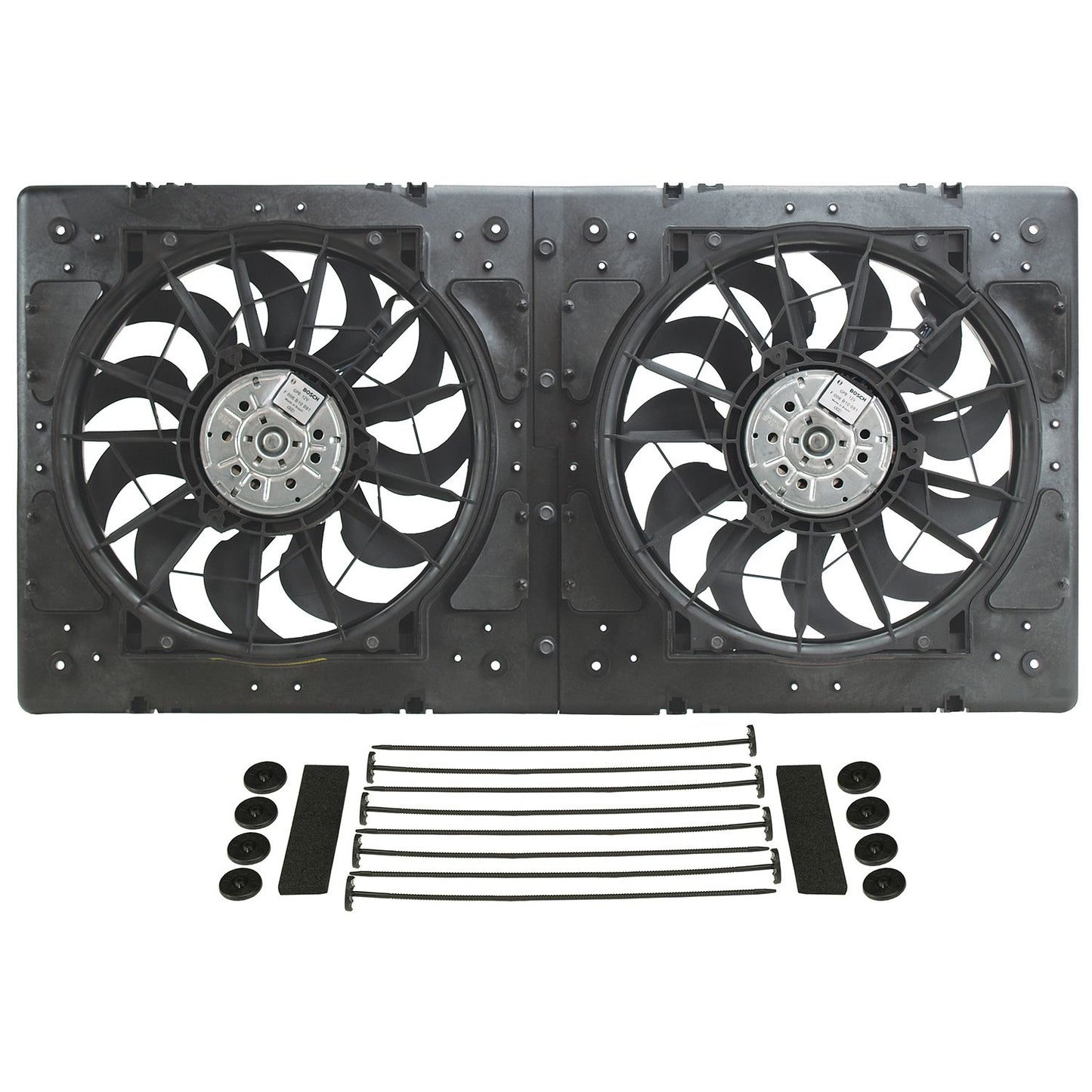

Derale High Output Dual 12" Electric RAD Fan/Plastic Shroud Kit 16934

This high performance primary cooling fan kit combines two high output 265 watt Bosch motors with stator flow directors and an OE-quality injection molded fan shroud with pressure relief vents to produce one serious dual electric fan setup. Designed for puller applications, it's perfect for muscle cars, street rods and heavy duty trucks, this combination produces 4,000 CFM while each fan draws 24.8 amps. Includes through radiator mounting system and two high amp relay harnesses.

Attributes:

• GTIN: 00083277169342
• Brand Name: Derale
• Amp draw fan 1/2: 24.8/24.8
• CFM fan 1/2: 2000/2000
• Color: Black
• Depth: 1-3/8
• Distance between fan housings: 2-7/8
• Height: 15-3/4
• Mounting: 12-7/8 x 28-7/8
• Overall depth: 3-1/4
• Width: 31-3/8

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 21.375 x 18.25 x 2.75 inches
• Weight: 2.75 lb

PDF:
