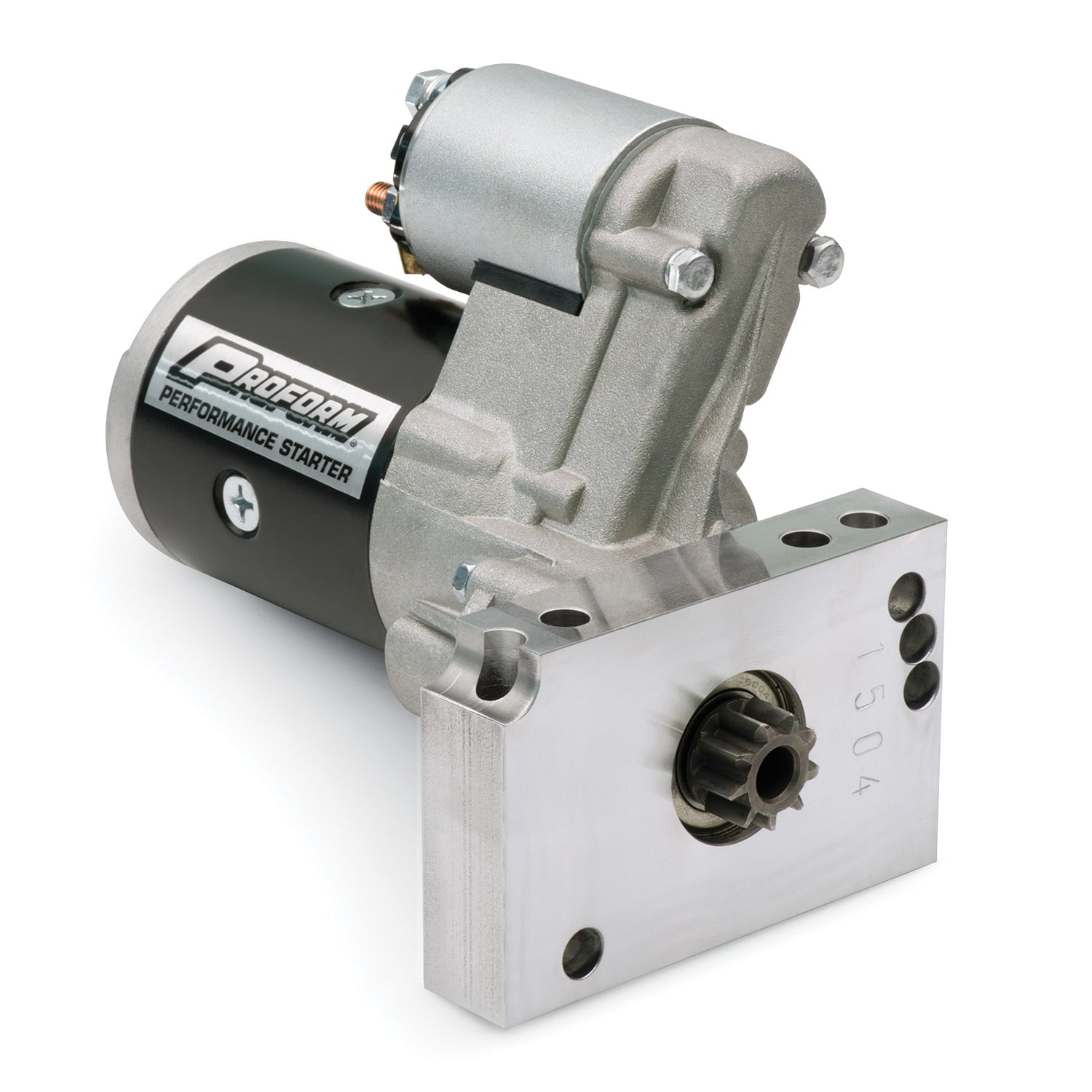

Proform High-Torque Starter; Gear Reduction Type; 1.4KW; Fits Chevy V8-V6 Engines 66256

High-torque, gear-reduction design. 100% NEW, not rebuilt. Offset design results in more clearance between the oil pan and the starter, and can be rotated for additional chassis clearance. The high-torque, high-output motor spins the engine over faster than stock starters, delivering 40-50% more cranking power. 3.75-to-1 sealed gear-reduction drive and full ball bearing construction. Includes shims to set pinion-gear engagement (when necessary). Approved by all leading sanctioning organizations. Fits all Chevy V6 and small and big block V 8 engines using 153 or 168 tooth flywheels. Heavy-duty PROFORM P/N 66258 weighs 1-1/2 lbs. more and is 1" longer than P/N 66256.

Attributes:

• GTIN: 00037995362561
• Brand Name: Proform
• Applications: Chevy Small Block Engines, Chevy Big Block Engines and Chevy V6 Engines
• Color: Natural
• Compression Ratio: 11 : 1
• Feature/Benefit: High-torque, gear-reduction design.
• Finish: Natural
• Flywheel Tooth Number: 153 & 168-Tooth
• Gear Reduction Ratio: 3.75:1
• Make: Chevrolet
• Material: Aluminum/Steel
• Mounting Plate: Straight Bolt Mounting Plate
• Part Type: Starter Motor
• Power Output: 1.4 KW
• Rotation: Standard

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9.25 x 6.75 x 6.75 inches
• Weight: 11.25 lb
