Holley 4BBL Carb. Spacer; Std. Manifold; 1-1/2 in. Tall; Tapered Port-Billet 3208

<p>It is no secret that tuners can alter their engine torque's sweet spot imply by increasing or decreasing the length plenum beneath the carburetor. To lengthen the plenum, simply install a carburetor spacer. For years, carb spacers have mainly been available in 1" or 2" tall varieties. But, in addition to the 1-1/2" tall design offering builders and drag aracers another level of tunability, the special, tapered port design of this Torque-Flow carburetor spacer, provides the benefit of a venturi effect to increase intake speed and improve the spacer's ability to produce torque.</p><p>Hamburger's precision CNC machines this spacer in their Whittier, California manufacturing facilty using 6061-T6 aluminum, then giving a durable clear anoziding to protect it from the harsh engine bay elements. Hamburger's includes all the necessary gaskets and longer mounting hardware to accomodate the taller carburetor position. The spacer is designed with 8 mounting holes so it can be used with both Holley and AFB 4 bbl carburetors on a standard 4 barrel intake manifold. This spacer is backed by a limited lifetime warranty!</P>

• Clear Anodized Finish
• CNC-Machined 6061 Aluminum Construction

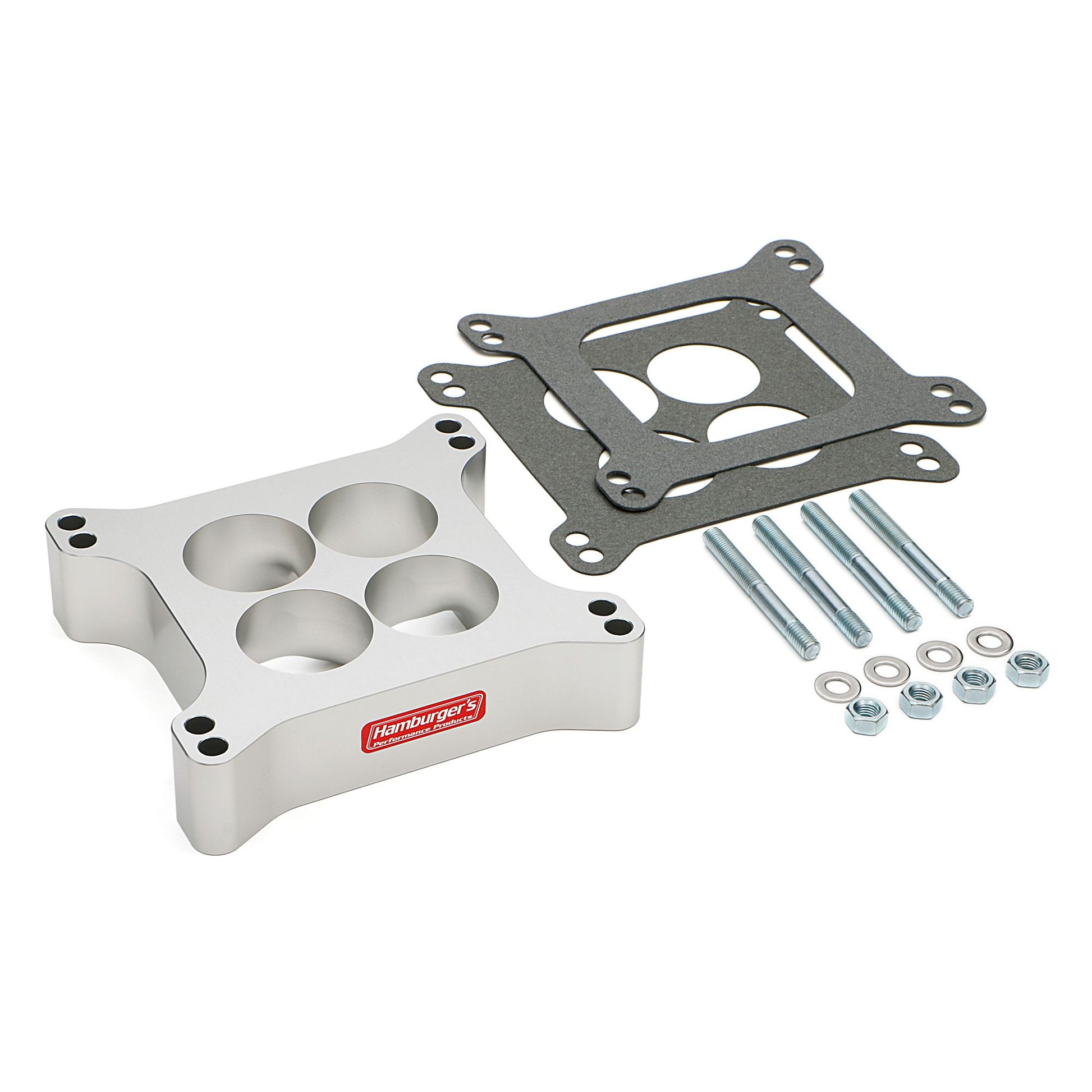

• Includes Gaskets, Carburetor Studs and Mounting Hardware
• Made In The U.S.A.!
• The Tapered Ports Use The Venturi Effect To Increase Horsepower And Torque!

Attributes:

• GTIN: 00086923032083
• Brand Name: Hamburger's Performance
• Bolt Hole Quantity: 8
• Contents: Carburetor spacer, gaskets, carb studs, nuts, washers
• Emissions Notes: This spacer is legal for off-road use only. Not legal for use street use.
• Fastener(s) Included: Yes
• Finish: Clear Anodized
• Finish Type: Clear Anodized
• Height: 1-1/2 in.
• Material: Billet Aluminum
• Materials: 6061-T6 Billet Aluminum
• Package Contents: Carburetor spacer, gaskets, carb studs, nuts, washers
• Performance: Yes
• Plenum Style: Tapered Port
• Replacement Gasket Set: 2069 and 2033
• Spacer Finish: Anodized Clear
• Spacer Material: Billet Aluminum
• Spacer Thickness: 1-1/2 in.
• Stud Diameter: 5/16 in.
• Stud Length: 3 in.
• Stud Material: Steel
• Stud Thread Size: 5/16 in.-18 ; 5/16 in.-24
• Thickness: 1-1/2 in.
• Carburetor Type: 4BBL AFB
• Manifold Type: Standard 4BBL

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.000 x 8.500 x 3.500 inches
• Weight: 3.000 lb
