Holley 4BBL Carburetor Spacer; Std. Manifold; 1-1/2 in. Tall; Open PlenumBillet 3200

<p>It is no secret that tuners can alter their engine torque's sweet spot imply by increasing or decreasing the length plenum beneath the carburetor. It achieves this by increasing plenum volume and speed. To lengthen the plenum, simply install a carburetor spacer. For years, carb spacers have mainly been available in 1" or 2" tall varieties. This 4 barrel carb spacer measures 1-1/2" tall, and offers builders and drag aracers another level of tunability.</p><p>Hamburger's precision CNC machines this spacer in their Whittier, California manufacturing facilty using 6061-T6 aluminum, then giving a durable clear anoziding to protect it from the harsh engine bay elements. Hamburger's includes all the necessary gaskets and longer mounting hardware to accomodate the taller carburetor position. The spacer is designed with 8 mounting holes so it can be used with both Holley and AFB 4 bbl carburetors on a standard 4 barrel intake manifold. This particular model has an OPEN PLENUM design (no walls between the 4 carb ports), increasing the plenum volume even further, and is ideal for wide open throttle applications... like drag racing. This spacer is backed by a limited lifetime warranty!</P>

• Clear Anodized Finish
• CNC-Machined 6061 Aluminum Construction
• Includes Gaskets, Carburetor Studs and Mounting Hardware
• Increases Plenum Length and Volume For More Horsepower & Torque.
• Made In The U.S.A.!

Attributes:

• GTIN: 00086923032007
• Brand Name: Hamburger's Performance
• Bolt Hole Quantity: 8

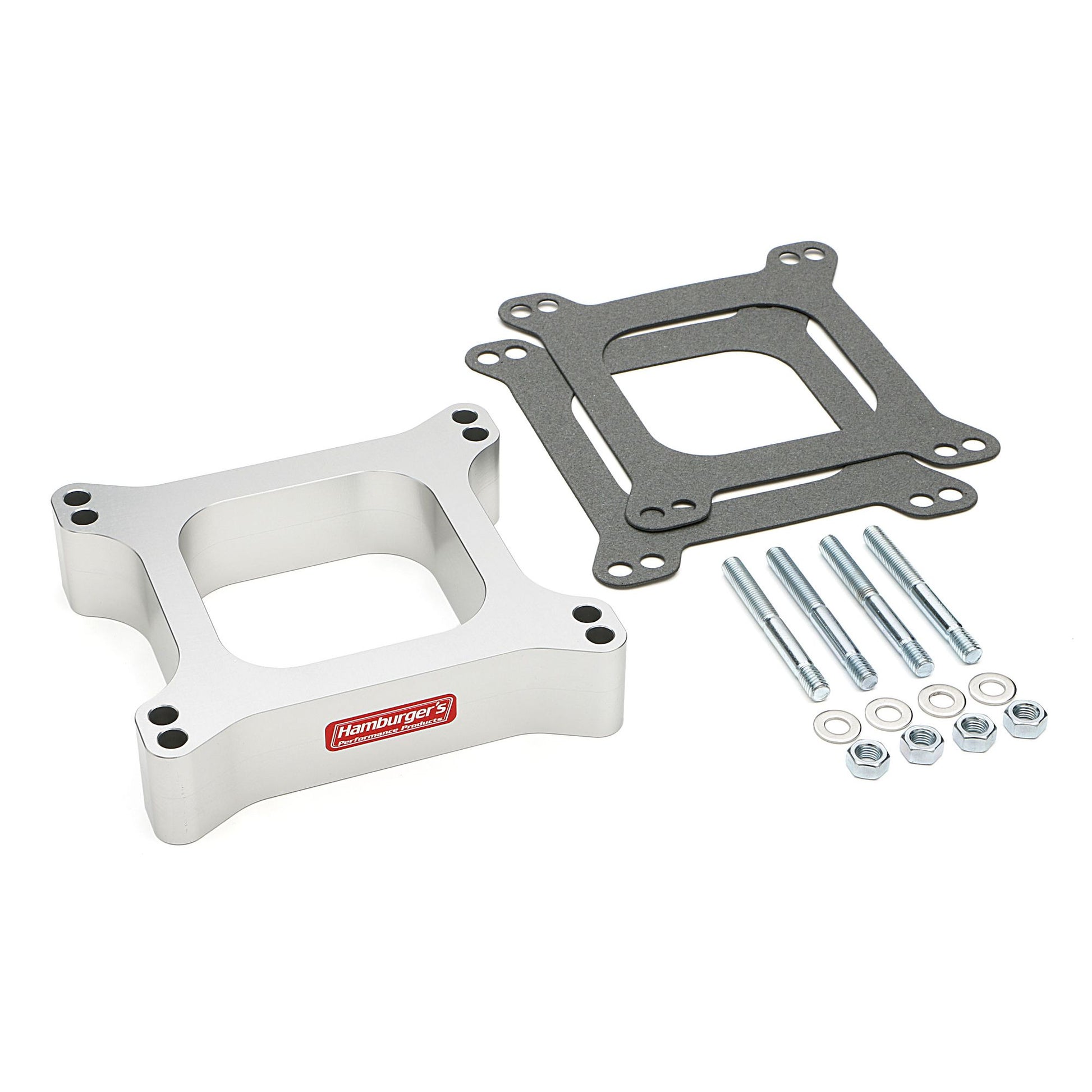

• Contents: Carburetor spacer, gaskets, carb studs, nuts, washers
• Emissions Notes: This spacer is legal for off-road use only. Not legal for use street use.
• Fastener(s) Included: Yes
• Finish: Clear Anodized
• Finish Type: Clear Anodized
• Height: 1-1/2 in.
• Material: Billet Aluminum
• Materials: 6061-T6 Billet Aluminum
• Package Contents: Carburetor spacer, gaskets, carb studs, nuts, washers
• Performance: Yes
• Plenum Style: Open
• Replacement Gasket Set: 2069
• Spacer Finish: Anodized Clear
• Spacer Material: Billet Aluminum
• Spacer Thickness: 1-1/2 in.
• Stud Diameter: 5/16 in.
• Stud Length: 3 in.
• Stud Material: Steel
• Stud Thread Size: 5/16 in.-18 ; 5/16 in.-24
• Thickness: 1-1/2 in.
• Carburetor Type: 4BBL AFB
• Manifold Type: Standard 4BBL

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.000 x 8.500 x 3.500 inches
• Weight: 2.750 lb
