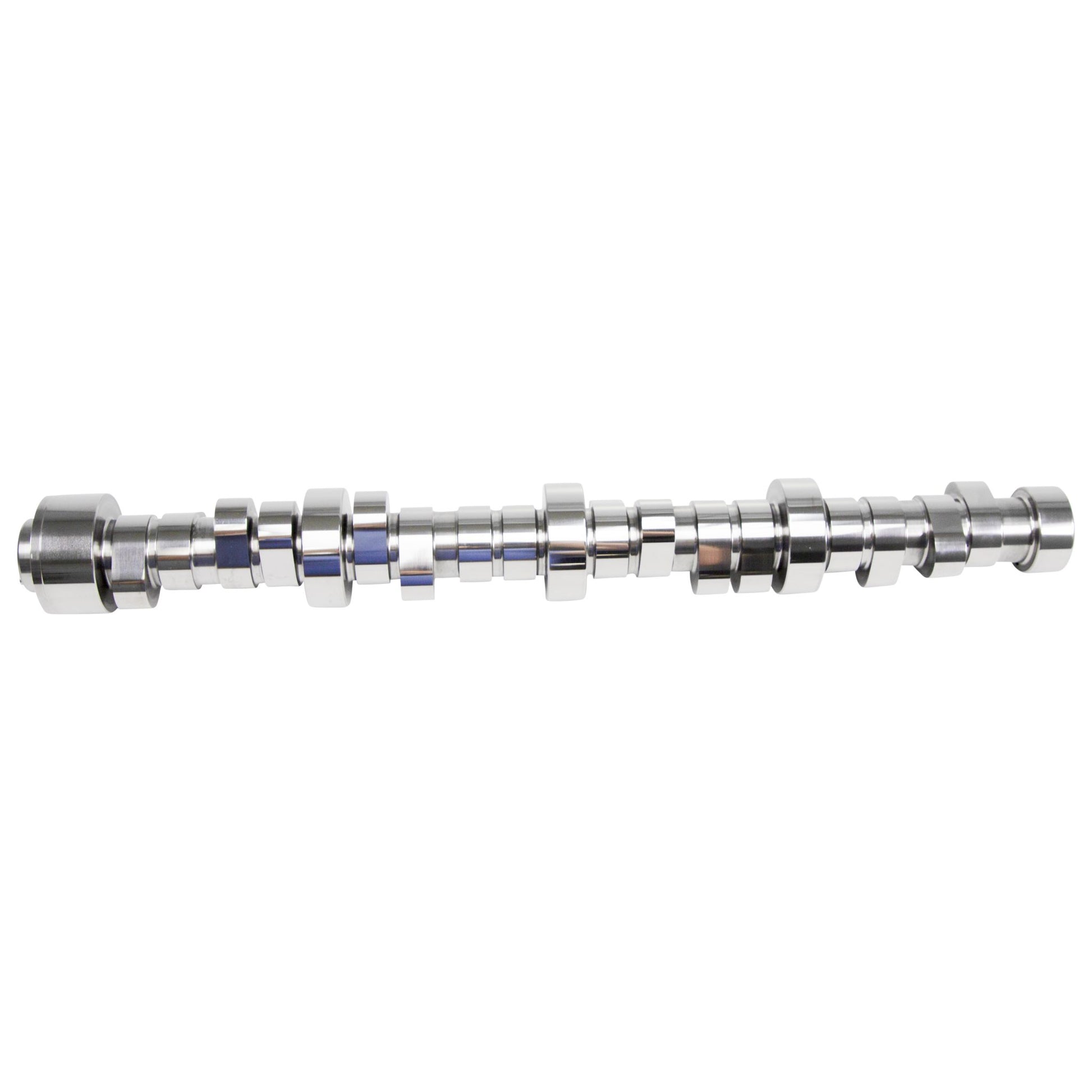

COMP Cams HRT Blower Stage 2 Hydraulic Roller Camshaft for '03-'08 Dodge 5.7/6.1L HEMI COMP-112-337-11

The HRT Camshaft Series uses the newest and most advanced lobe designs from COMP Cams in order to produce some of the highest average power and torque increases available for turbo and supercharged engines. The “Low Shock Technology” features lobe profiles designed to maximize horsepower while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. These new HRT Camshafts receive the Micro Surface Enhancement (MSE) finishing process as a standard feature, which increases strength and performance by reducing surface peak roughness and provides a 250% improvement in the effective load bearing area, allowing for much higher loads. Organized into stages, these new options range from mild street up to heavily modified race-oriented builds. All HRT Turbo & Supercharger Camshafts require a COMP Cams DOD Delete Kit and upgraded valve springs. Depending on application, 5.7L-6.4L w/ VVT 2009+ engines also require either a COMP Cams phaser limiter or lock kit.

Attributes:

• GTIN: 00036584408888
• Brand Name: COMP Cams
• Camshaft Series: HRT Blower
• Usage: Street/Strip
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,000-7,000
• Intake Duration at .050 Inch Lift: 229
• Exhaust Duration at .050 inch Lift: 241
• Advertised Intake Duration: 287
• Advertised Exhaust Duration: 299
• Lobe Separation: 117
• Intake Valve Lift: 0.635
• Exhaust Valve Lift: 0.635
• Lifters Included: No
• Valve Springs Included: No
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Lifter Style: Hydraulic Roller
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Engine Family: Dodge 5.7/6.1L Non-VVT HEMI
• Stage: 2
• Timing Set Included: No
• Valve Seals Included: No
• Valve Spring Seats Included: No
• Grind Number: Stage 2 Supercharger
• Estimated Horsepower Gain: N/A
• Recommended Upgraded Stock Rocker Arms: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Recommended Valve Springs: 7228

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.3 x 3 x 2.6 inches
• Weight: 12.9632 lb
