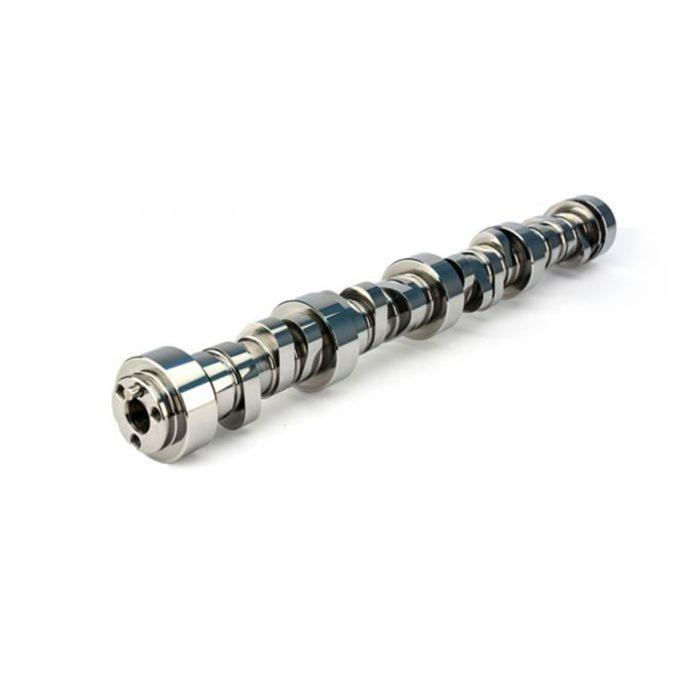

COMP Cams HV Cam 218/226 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L COMP-54-273-11

This COMP Cams® HV cam is designed for GM cathedral port 4.8L/5.3L/6.0L powered vehicles. It provides amazing drivability and throttle response while also requiring minimal tuning. Torque is increased across the entire operating range while still producing +79 horsepower at peak. Get the most out of your daily driver truck, SUV or 4x4 without sacrificing street manners. The HV cam will provide a deep rumble with a mild, yet noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.

Attributes:

• GTIN: 00036584426615
• Brand Name: COMP Cams
• Advertised Exhaust Duration: 278
• Camshaft Series: HV
• Advertised Intake Duration: 271
• Usage: Street
• Cam Type: Hydraulic Roller
• Exhaust Duration at .050 inch Lift: 226
• Cam Grind #: LS271HV11
• Cam Type: Hydraulic Roller
• Exhaust Valve Lift: 0.57
• Lifter Type: Roller Tappet
• Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57
• Camshaft Intake Centerline: 106
• Intake Duration at .050 Inch Lift: 218
• Advertised Intake Duration: 271
• Intake Valve Lift: 0.575
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
• Advertised Exhaust Duration: 278
• Intake Duration at .050 Inch Lift: 218
• Lifter Type: Roller
• Lobe Separation: 111
• Exhaust Duration at .050 inch Lift: 226
• Intake Lobe Lift: 0.338
• Exhaust Lobe Lift: 0.335
• Lobe Separation: 111
• Advance: 5
• Exhaust Open BBDC: 49
• Intake Open BTDC: 3
• Exhaust Close ATDC: -3
• Intake Close ABDC: 35
• Factory Rocker Ratio: 1.7
• Intake Valve Lash: Hyd
• Exhaust Valve Lash: Hyd
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
• Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57
• Basic Operating RPM Range: 2500 - 6300
• Direct Injection: No
• VVT Compatible: No
• Phaser Requirement: None
• Fuel Management Strategy Compatible: No
• Computer Controlled Compatible: Yes
• Valve Springs Required: Yes
• Engine Platform: GM LS GEN III/IV

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 2.75 x 2.75 inches
• Weight: 10 lb
