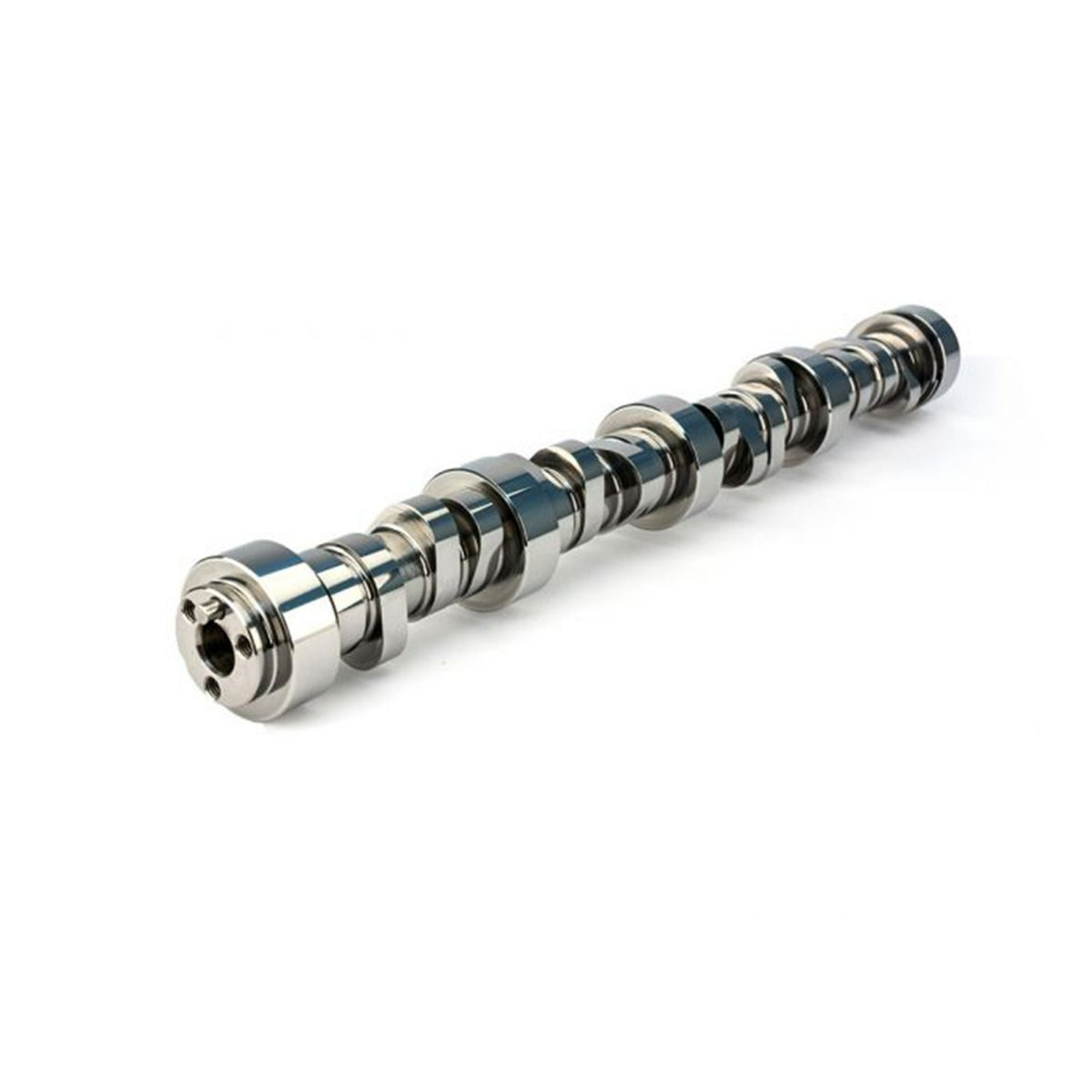

COMP Cams HV Cam 226/234 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L COMP-54-275-11

This COMP Cams HV cam is designed with a focus toward either drivability, towing and response in larger displacement (6.0L up) engines or moving peak torque to higher RPM in smaller displacement (4.8L & 5.3L) applications. Awesome performance gains with +94 horsepower at peak and increased torque from 2800 rpm up. Get the most out of your cruiser or daily driver while enjoying great street manners. The HV cam will provide a deep rumble with a noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.

Attributes:

• GTIN: 00036584426622
• Brand Name: COMP Cams
• Camshaft Intake Centerline: 108
• Intake Duration at .050 Inch Lift: 226
• Advertised Intake Duration: 279
• Intake Valve Lift: 0.575
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
• Advertised Exhaust Duration: 286
• Intake Duration at .050 Inch Lift: 226
• Lifter Type: Roller
• Exhaust Duration at .050 inch Lift: 234
• Intake Lobe Lift: 0.338
• Exhaust Lobe Lift: 0.335
• Lobe Separation: 112.5
• Advance: 4.5
• Exhaust Open BBDC: 54
• Intake Open BTDC: 5
• Exhaust Close ATDC: 0
• Intake Close ABDC: 41
• Factory Rocker Ratio: 1.7
• Intake Valve Lash: Hyd
• Exhaust Valve Lash: Hyd
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
• Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57
• Basic Operating RPM Range: 2700 - 6500
• Direct Injection: No
• VVT Compatible: No
• Phaser Requirement: None
• Fuel Management Strategy Compatible: No
• Computer Controlled Compatible: Yes
• Valve Springs Required: Yes
• Engine Platform: GM LS GEN III/IV
• Lobe Separation: 112
• Advertised Exhaust Duration: 286
• Camshaft Series: HV
• Advertised Intake Duration: 279
• Usage: Street
• Cam Type: Hydraulic Roller
• Exhaust Duration at .050 inch Lift: 234
• Cam Grind #: LS279HV12
• Cam Type: Hydraulic Roller
• Exhaust Valve Lift: 0.57
• Lifter Type: Roller Tappet
• Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 2.75 x 2.75 inches
• Weight: 10 lb
