Hydraulic Hose (PTFE) - Stainless Steel Braided
Hydraulic Hose (PTFE) - Stainless Steel Braided
BOOST Products USA
Part #
HP-SS-61
UPC #
4250815847239
Black Friday Sale On All November Long! No Code Needed!
Couldn't load pickup availability
Product Description
Product Description

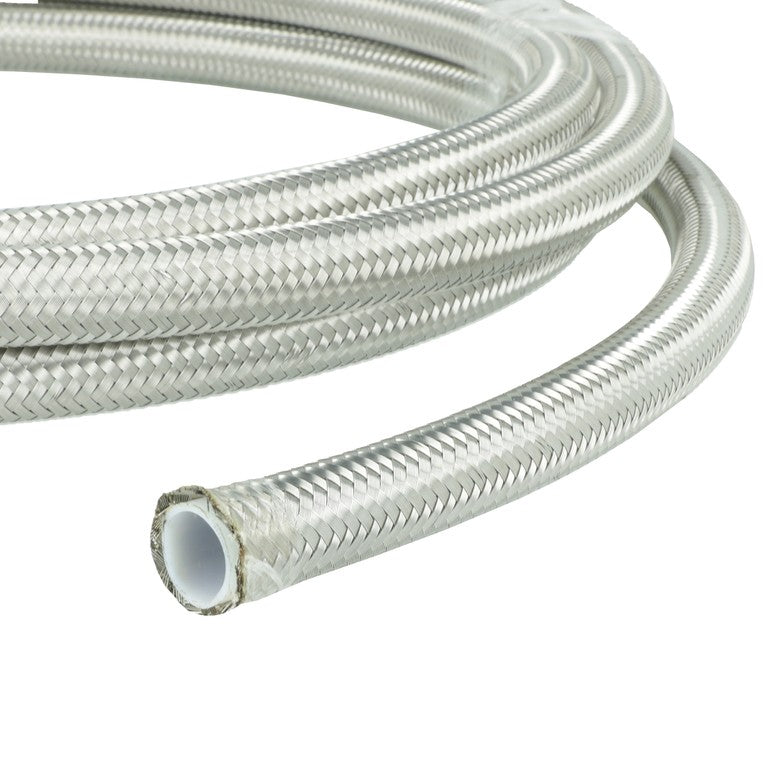

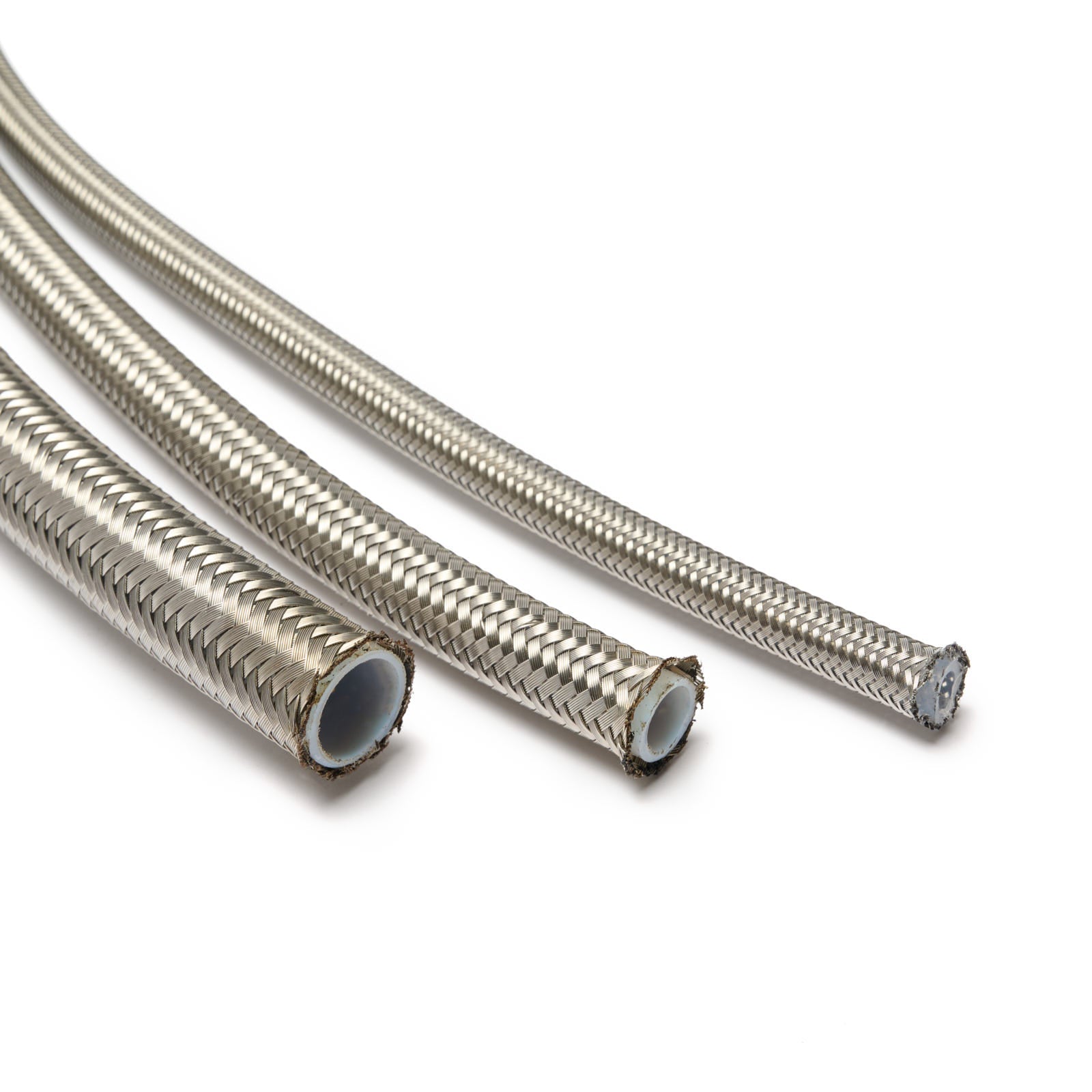

PTFE Hydraulic Hose with Stainless Steel Braid
PTFE hydraulic hose with stainless steel braid, made specifically for high pressures. It is lighter and thinner than CPE/NBR hose, and it handles more aggressive fluids such as ethanol or hydraulic fluid. Use it to build your own lines for E85 fuel, oil and pneumatic systems. The braid protects against stone chips, abrasion and UV radiation and gives the line a clean look. This hose fits PTFE fittings only.
Key Features
- Made specifically for high pressures
- Lighter and thinner than CPE/NBR hose
- Handles aggressive fluids such as ethanol or hydraulic fluid
- Stainless steel braid, protects against stone chips, abrasion and UV radiation
- Screwed together with BOOST Products hose ends, no press tool needed
- Min. temperature: -53°C / -63.4°F
- Max. temperature: 232°C / 450°F
- Suitable for: Gasoline, Diesel, E85, Methanol, oil and air
- Structure: With internal PTFE conductive core and stainless steel outer braid

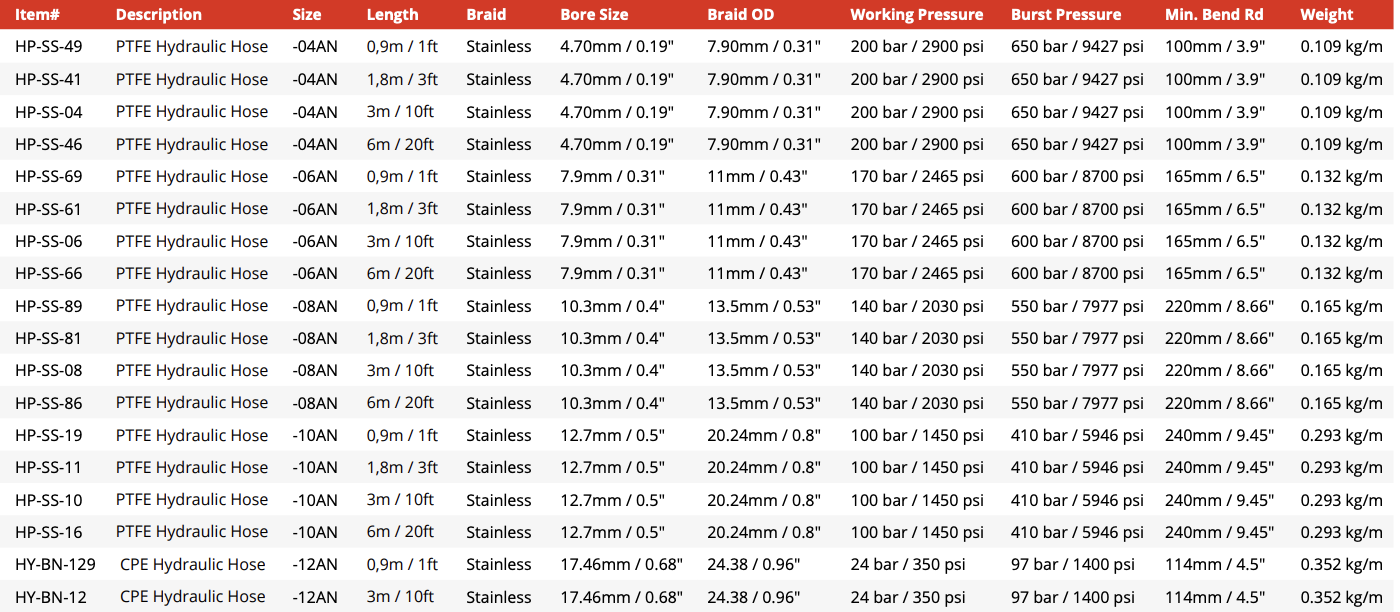

Available Sizes
| Size | Thread | Inner diameter | Outer diameter | Max. working pressure | Burst pressure | Min. radius |
|---|---|---|---|---|---|---|
| -04 AN | -04 AN / Dash 4 / 7/16x20" | 4.7mm / 0.19" | 7.9mm / 0.3" | 200 bar / 2900 psi | 650 bar / 9427 psi | 100mm / 3.9" |
| -06 AN | Dash 6 / -06 AN / 9/16x18" | 7.9mm / 0.31" | 11mm / 0.43" | 170 bar / 2465 psi | 600 bar / 8700 psi | 165 mm / 6.5" |
| -08 AN | Dash 8 / -08 AN / 3/4x16" | 10.3mm / 0.4" | 13.5mm / 0.53" | 140 bar / 2030 psi | 550 bar / 7977 psi | 220mm / 8.66" |
| -10 AN | Dash 10 / -10 AN / 7/8x14" | 12.7mm / 0.5" | 15.8mm / 0.62" | 100 bar / 1450 psi | 410 bar / 5946 psi | 240mm / 9.44" |
Part Numbers by Length
| Size | Part No. 3ft (0.9m) | Part No. 6ft (1.8m) | Part No. 10ft (3m) | Part No. 20ft (6m) |
|---|---|---|---|---|
| -04 AN | HP-SS-49 | HP-SS-41 | HP-SS-04 | HP-SS-46 |
| -06 AN | HP-SS-69 | HP-SS-61 | HP-SS-06 | HP-SS-66 |
| -08 AN | HP-SS-89 | HP-SS-81 | HP-SS-08 | HP-SS-86 |
| -10 AN | HP-SS-19 | HP-SS-11 | HP-SS-10 | HP-SS-16 |
Frequently Asked Questions
PTFE or CPE/NBR hose?
Choose PTFE hose for high pressures and for aggressive fluids such as ethanol or hydraulic fluid. It is also lighter and thinner than CPE/NBR hose. One difference in assembly: PTFE hose ends seal with an olive insert. When you open a PTFE hose end and use the hose again, the olive insert must be replaced with a new one. This is not the case with CPE/NBR hose.
Do I need a press tool to build a line?
No. The hose is screwed together with the matching BOOST Products hose ends. The connection is tight without a press tool.
Which fittings fit this hose?
This hose fits PTFE fittings only.
Is the hose safe for E85 and methanol?
Yes. All BOOST Products hydraulic hoses are resistant to E85 and methanol.
