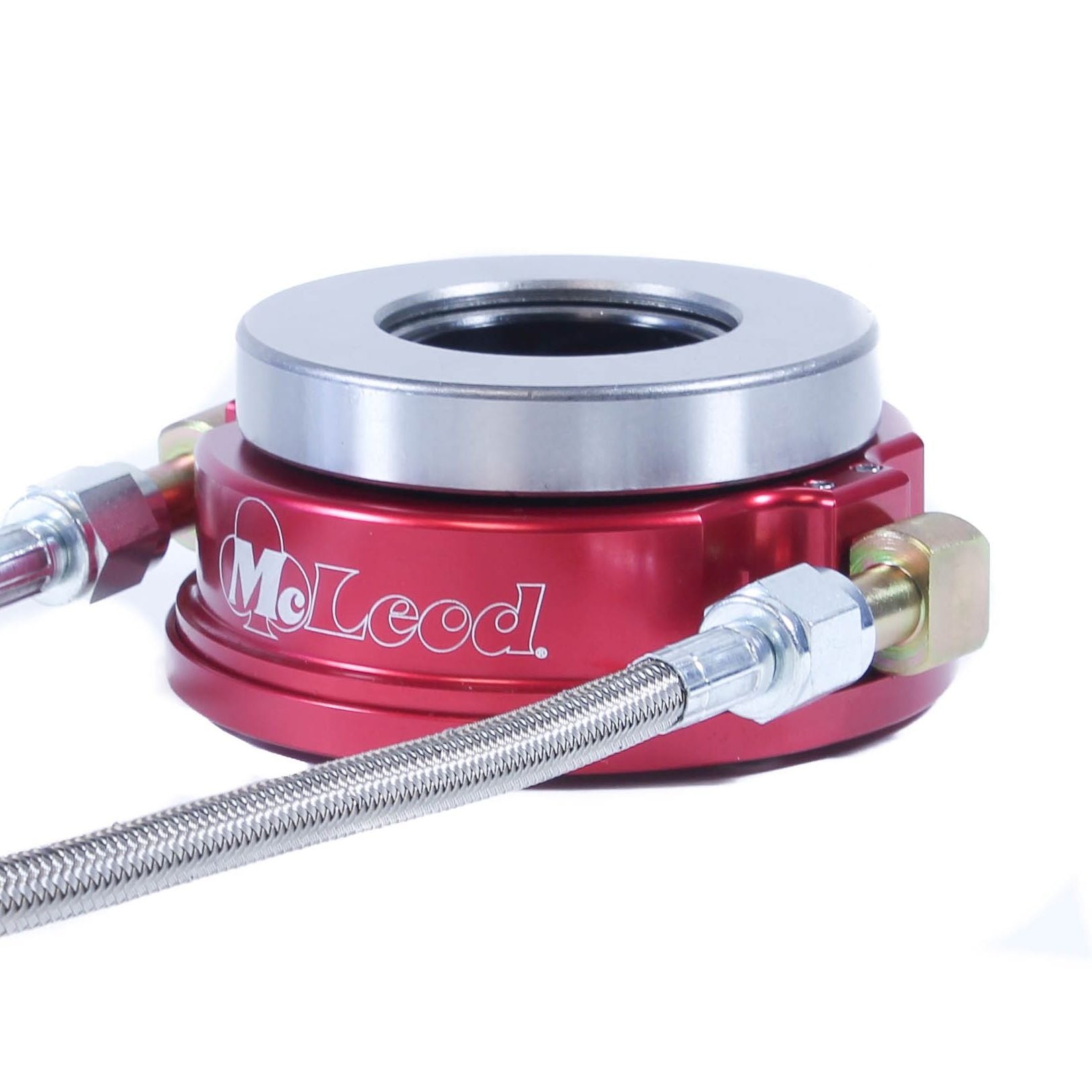

McLeod Hydraulic TOB: Slip On:GM: T-56,T-56 Mugnum,TR-6060 Transmissions:Ea. 14-302

Mcleod Hydraulic Bearings Are Made Of The Finest Hard Anodized Billet Aluminum. We Build Our Hydraulic Bearings With Swivel Fittings, Stainless Steel Lines And A Bleeder For Easier Installation.

Attributes:

• GTIN: 00887753015426
• Brand Name: McLeod
• Transmission: T-56 & T-56 Magnum
• Transmission 2: TR-6060
• Fitting Connections: AN-4 Male
• Fitting Connections 2: Male Wire Clip
• Height: 1.830In.
• Inner Diameter: 1.430In.
• Adjustment Screw Height: .700In.
• Bearing Face OD: 3.00In.
• Bearing Face ID: 1.59In.
• NOTE:: This is to be used with 1998-Up LS-X production T-56. 1992-Up Dodge Viper Production T-56. 2010-Up GM TR-6060. Tremec T-56 Magnum Aftermarket Transmissions. This Will NOT fit 1993-97 LT-1 Camaro/Firebird T-56 transmission.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 13 x 2 inches
• Weight: 10 lb
