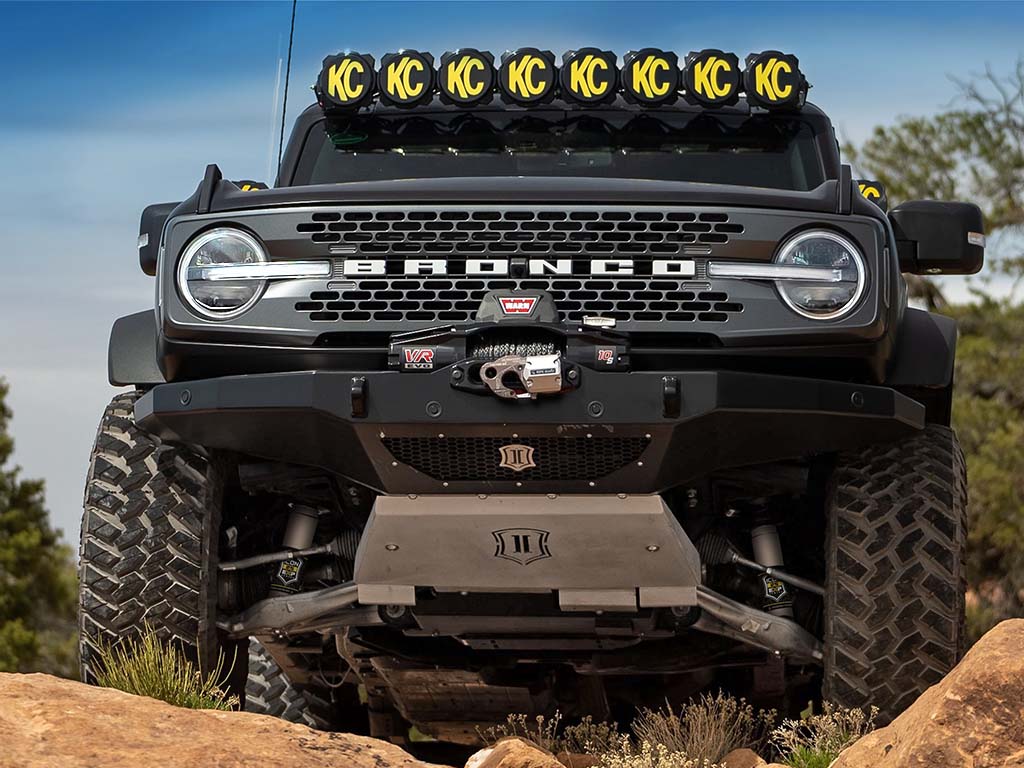

ICON Vehicle Dynamics 21-22 Bronco HOSS 1.0 Pkg 1.375-3" Lift Stage 2 Suspension System Billet K40002

Name: ICON Vehicle Dynamics 21-22 Bronco HOSS 1.0 Pkg 1.375-3" Lift Stage 2 Suspension System Billet K40002
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-K40002
Price: 3399.75 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-K40002
UPC #
00840103420905

$3,399.75 USD

~~$3,748.73 USD~~ $3,399.75 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.

Vehicle specific design for 2021-2022 Ford Bronco with HOSS 1.0 Suspension Package
Vehicle specific tuned shocks for superior shock damping and vehicle control
Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
Adjustable ride heights from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock with the use of snap rings
Utilizes factory coils and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable
