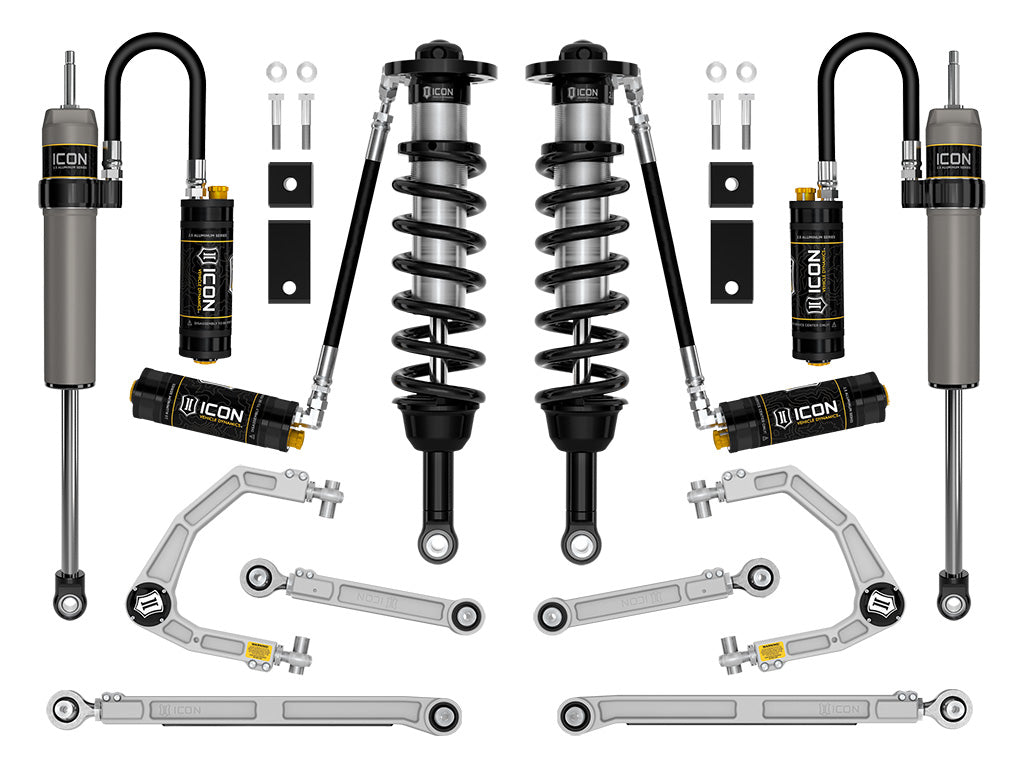

ICON Vehicle Dynamics 22-23 Toyota Tundra 1.25-3.5" Lift Stage 10 2.5 Suspension System Billet K53200

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 9 system with the addition of billet aluminum adjustable upper and lower rear links. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear links, a 2.5 Series CDCV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks.

• Vehicle specific design for 2022-2023 Toyota Tundra
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
