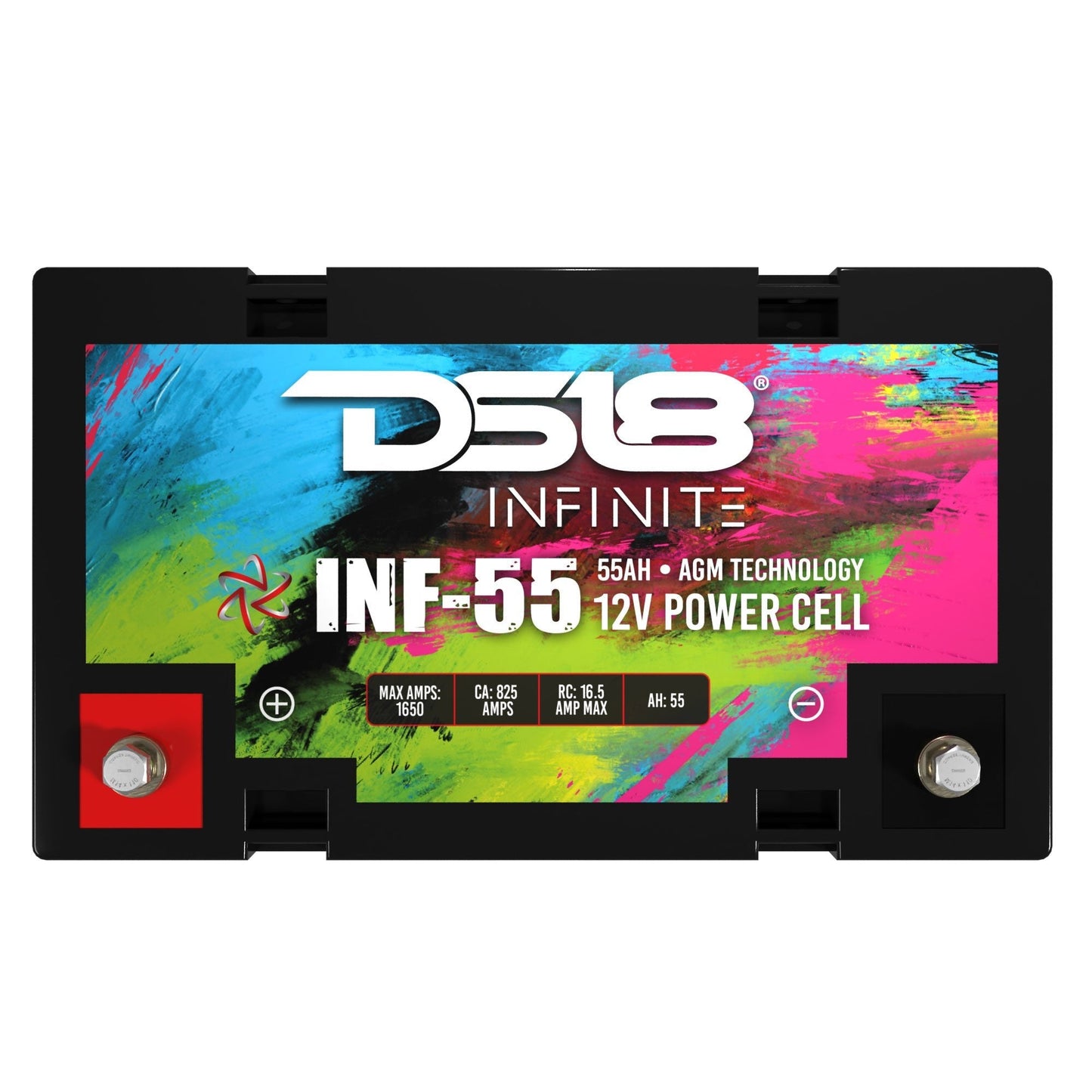

INFINITE 55 AH AGM Power Cell Battery

INFINITE 55 AH AGM Power Cell Battery

DS18

Part # INF-55AH
UPC # 810005188951

Regular price $214.95 USD
Regular price Sale price $214.95 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

DS18 INF-55AH INFINITE 55 AH 1750 Watts AGM Power Cell 12 Volt Battery

 DS18 Infinite AGM power-cell batteries are what real enthusiasts need for all their charging system needs. These batteries have been proven tough and able to withstand extreme amperage draws and hold strong voltage through the most demanding of times. This AGM (absorbed glass mat) technology has proven through the years to be the most cost effective way to meet high charging demands from any 12v sources. Packed in a durable container, this battery is sure to stand the test of time. These batteries have a higher than normal float voltage so with the vehicle on and the alternator charging these will give even more reserve.

Highlights

  • AGM (Absorbed Glass Mat) design that has proven itself through time and is the number one choice among team competitors.
  • Non spill design so the batteries can be mounted upside down or in multiple configurations without worry.
  • Bolt M5 terminals for secure connection also giving multiple options for add on terminals and busbars for the highest connectivity and conduction.
  • High burst reserve so the battery can maintain high volumes of amperage draw while efficiently holding voltage.
  • High float charge so your lights stay brighter, your electronics run stronger, and you have more reserve power and voltage altogether.



Technical Details
Specifications
Battery Type AGM
Nominal Voltage 12.8 V
Capacity  55Ah @ 10hr-rate to 1.8V per cell @ 25°C (77°F)
Maximum Discharge Current  1650 Amps
Cranking Amps (CA) 825 Amps
Cold Cranking Amps (CCA) 400 Amps
Watts (RMS) 1750W
Internal Resistance Approx. 6.5 mΩ
Float Charging Voltage 13.5 to 13.8 Vdc / unit average at 25°C (77°F)
Recommended Charging Current 16.5 Amps
Nominal Operating Temperature Range 25°C +/- 3° (77°F +/- 5°)
Bolt / Terminal Type Theard Lead Alloy Recessed / M6 Bolt
Battery Group U1

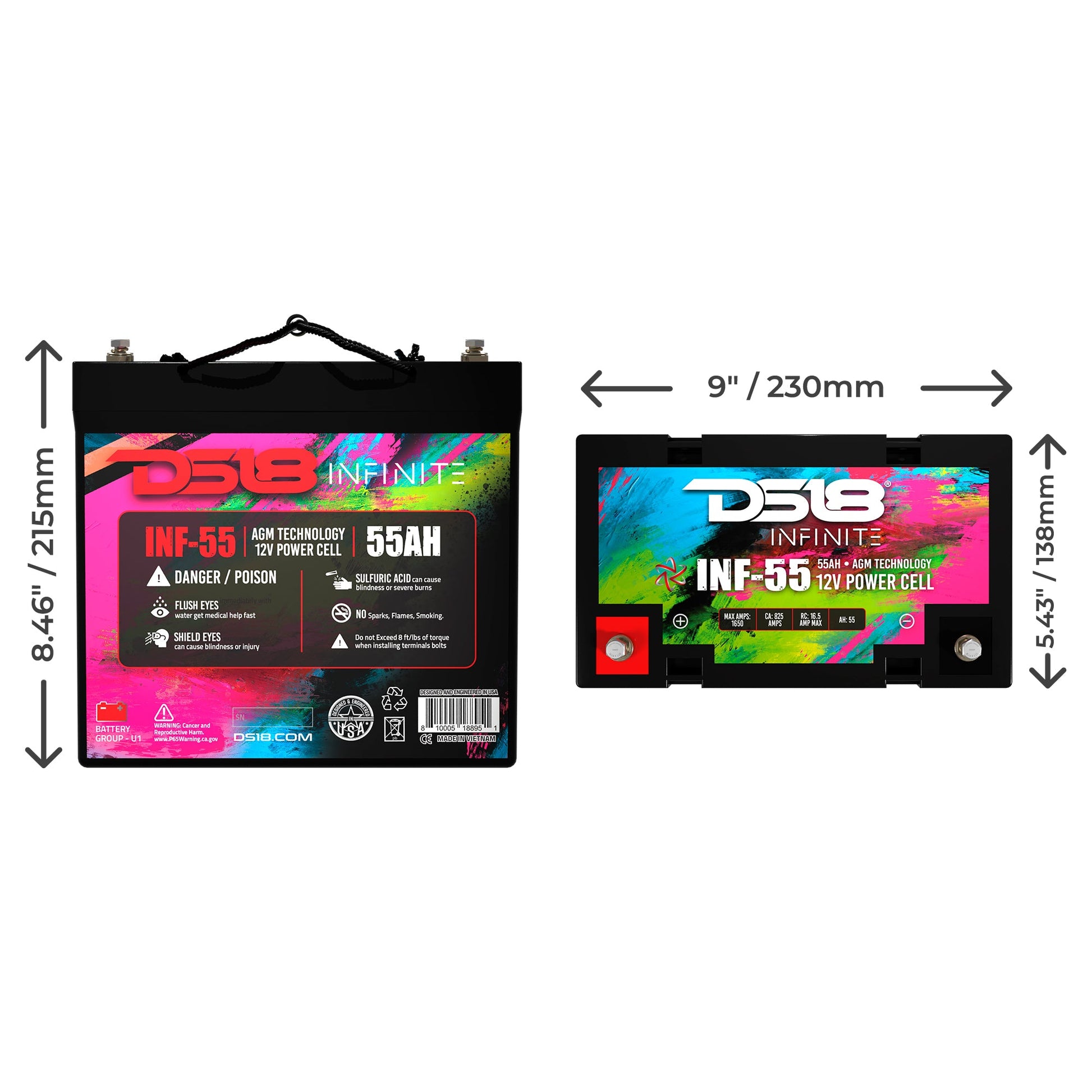

Measurement
Overall Length 9" / 230mm
Overall Width 5.43" / 138mm
Overall Height 8.46" / 215mm
Overall Height (Without Terminals) 8.26" / 210mm
Weight 36.30 Lbs / 16.5 kg
