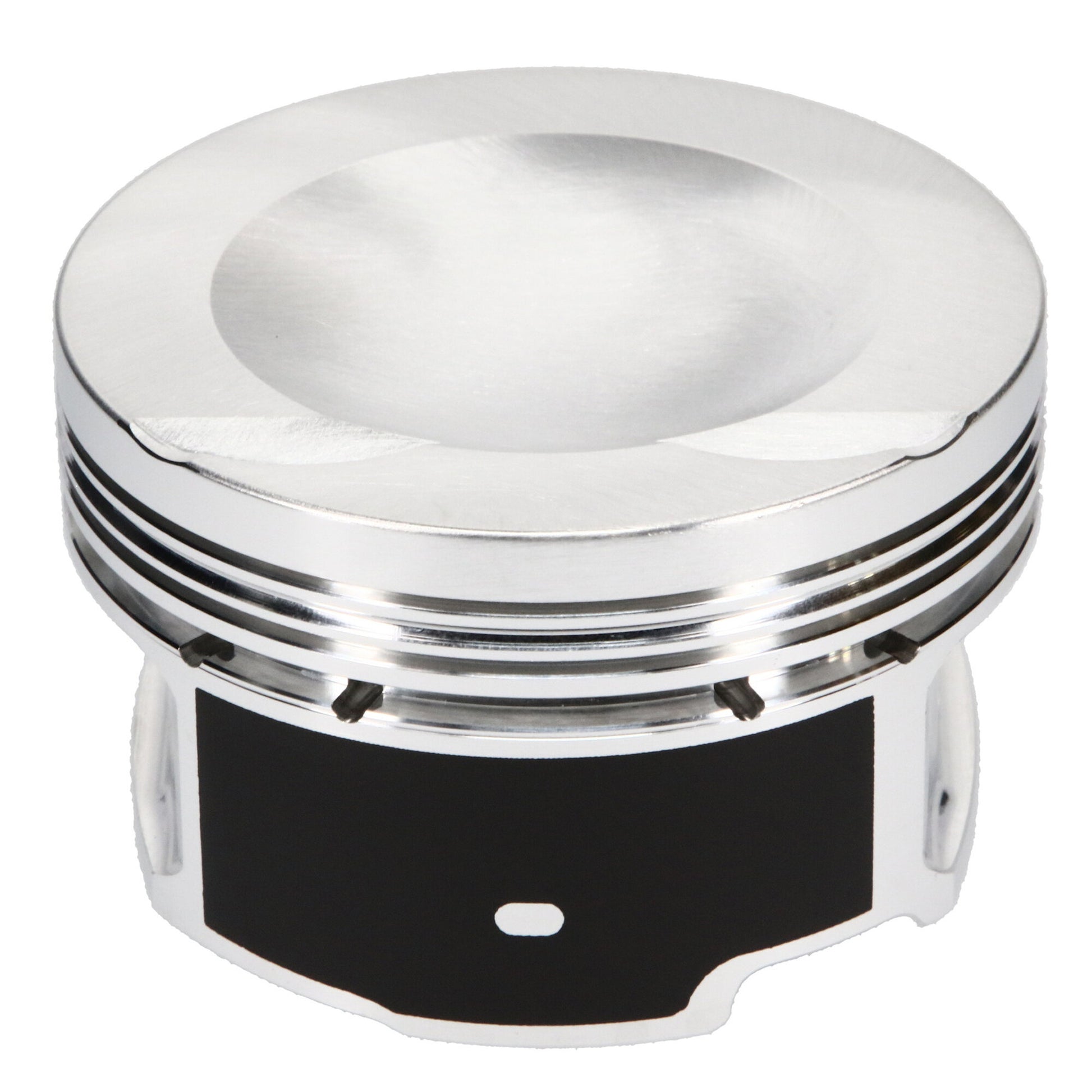

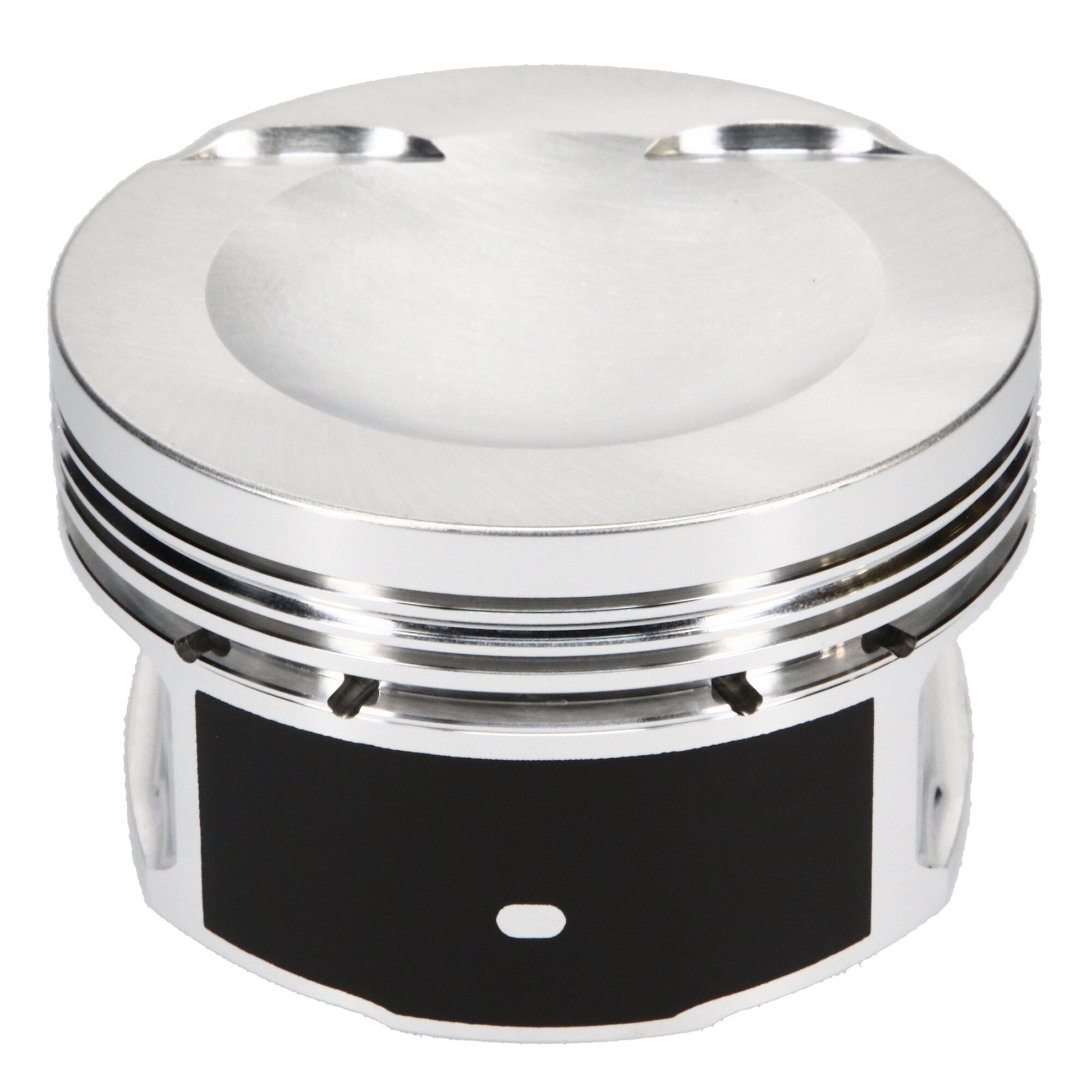

JE Pistons Audi 3.248 in. Bore Kit 337966

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564005458
• Brand Name: JE Pistons
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.048
• Top Compression Ring Thickness: 0.04
• Add-On: JG1001-3250
• Add-On: 866-2250-15-51C
• Add-On: 866-063-MW
• Bore Diameter: 82.50
• Compression Height: 1.165
• Cylinder Head: R5 TFSI 20V
• Engine: TT RS 5 CYL
• Forging Type: Round
• Industry: Automotive
• Make: AUDI
• Oil Ring Thickness: 0.111
• Out of Stock Message: Call for Availability
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.866
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -7.5
• Product Market: Sport Compact

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.00 x 12.00 x 6.00 inches
• Weight: 5 lb
