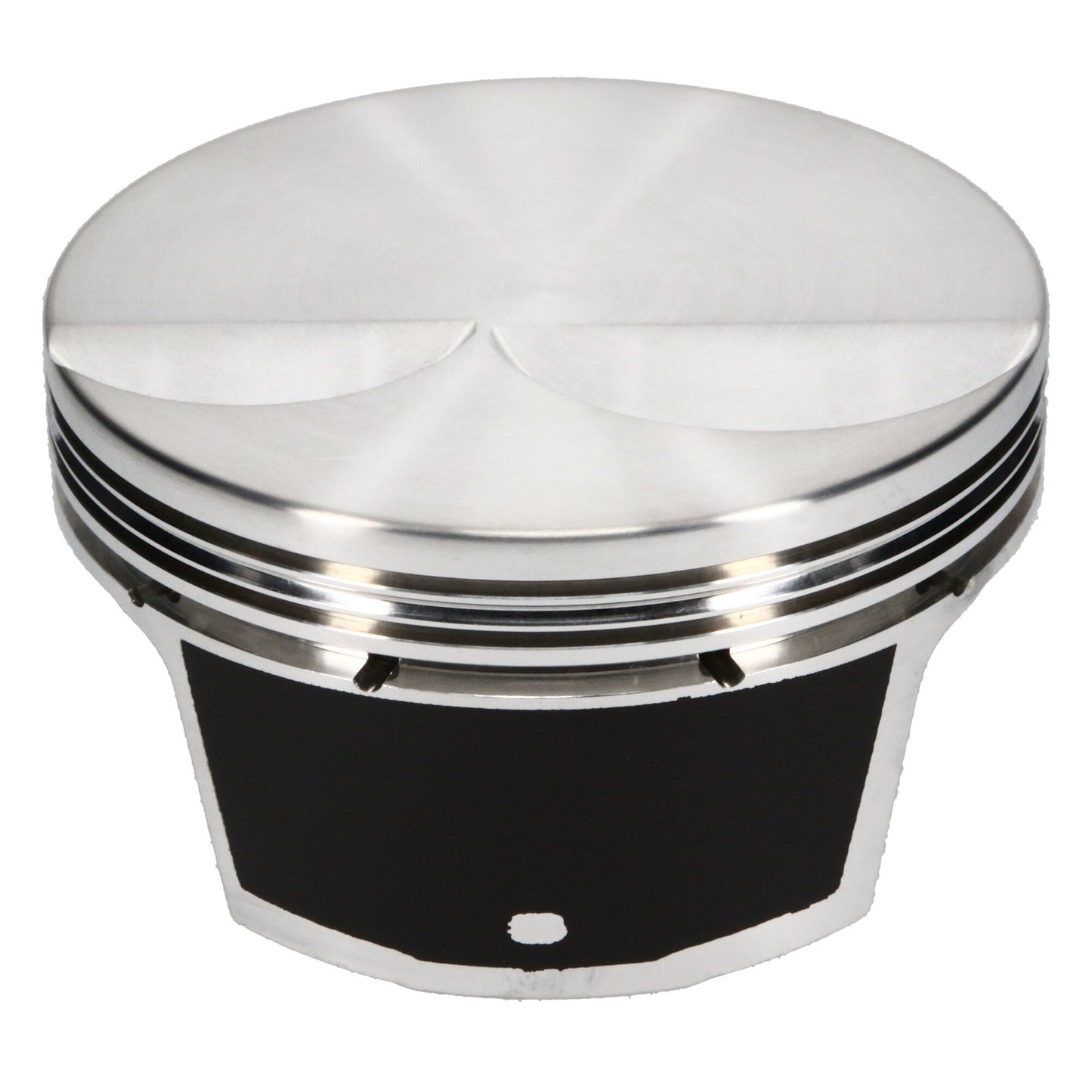

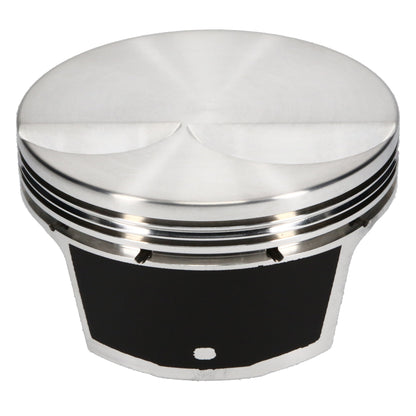

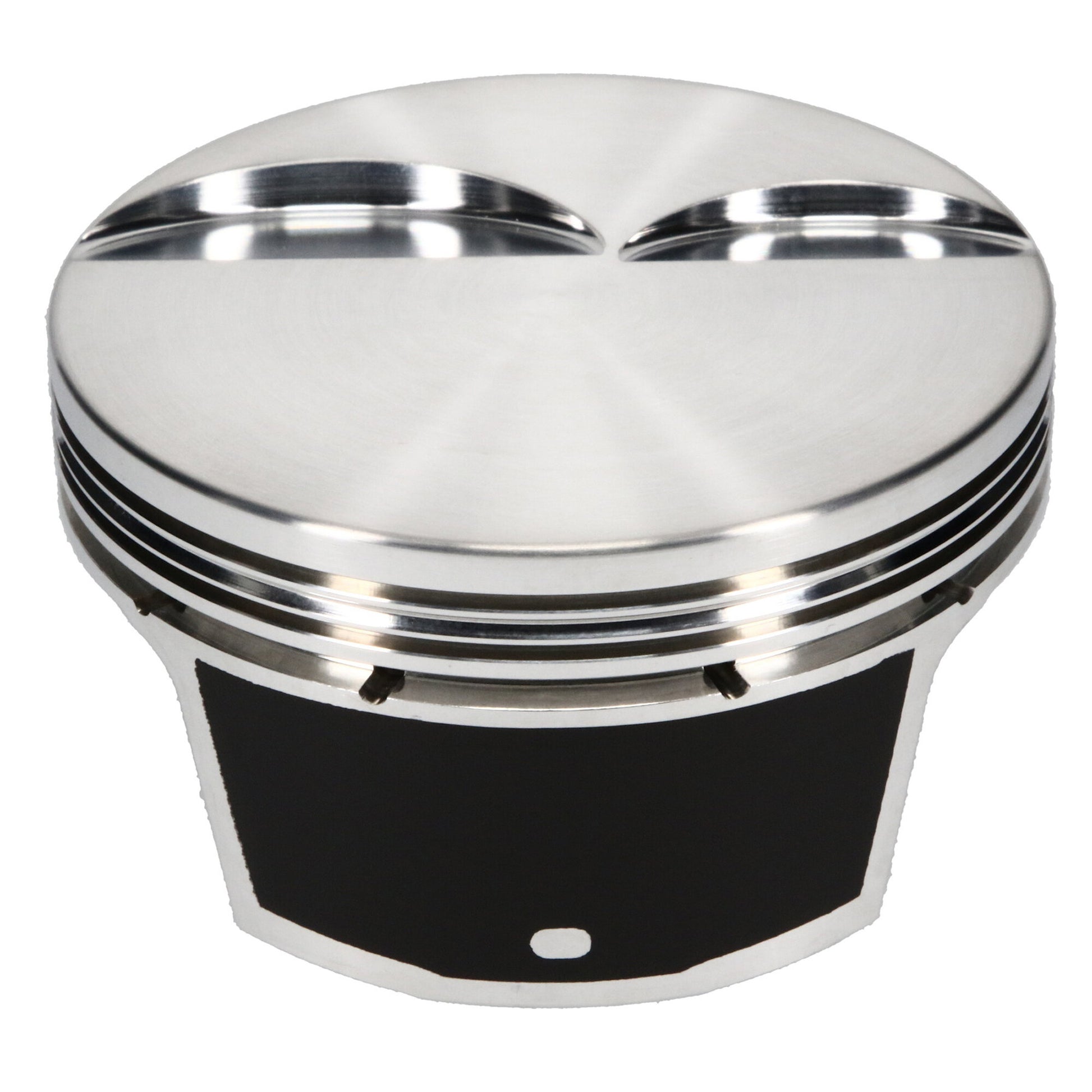

JE Pistons Chevrolet 3.905 in. Bore Left 321240L

JE Pistons LS1 series pistons utilize dedicated Forged Side Relief (FSR) forgings specifically designed for the demands of LS series engines. They are lightweight, extremely durable, and machined for modern 1.5mm, 1.5mm, 3.0mm performance ring sets.

Attributes:

• GTIN: 00193564200754
• Brand Name: JE Pistons
• Second Compression Ring Thickness: 0.06
• Top Compression Ring Thickness: 0.06
• Add-On: J68008-3900-3
• Add-On: 945-2250-15-51C
• Add-On: 945-073-MW
• Bore Diameter: 3.905
• Compression Height: 1.340
• Cylinder Head: LSX/L92 12 DEG
• Engine: CHEVROLET LS GEN III/IV
• Forging Type: FSR
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.1175
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 436
• Piston Head Type: Flat
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.945
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -2
• Product Market: Domestic
• Ringset Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.5 lb
