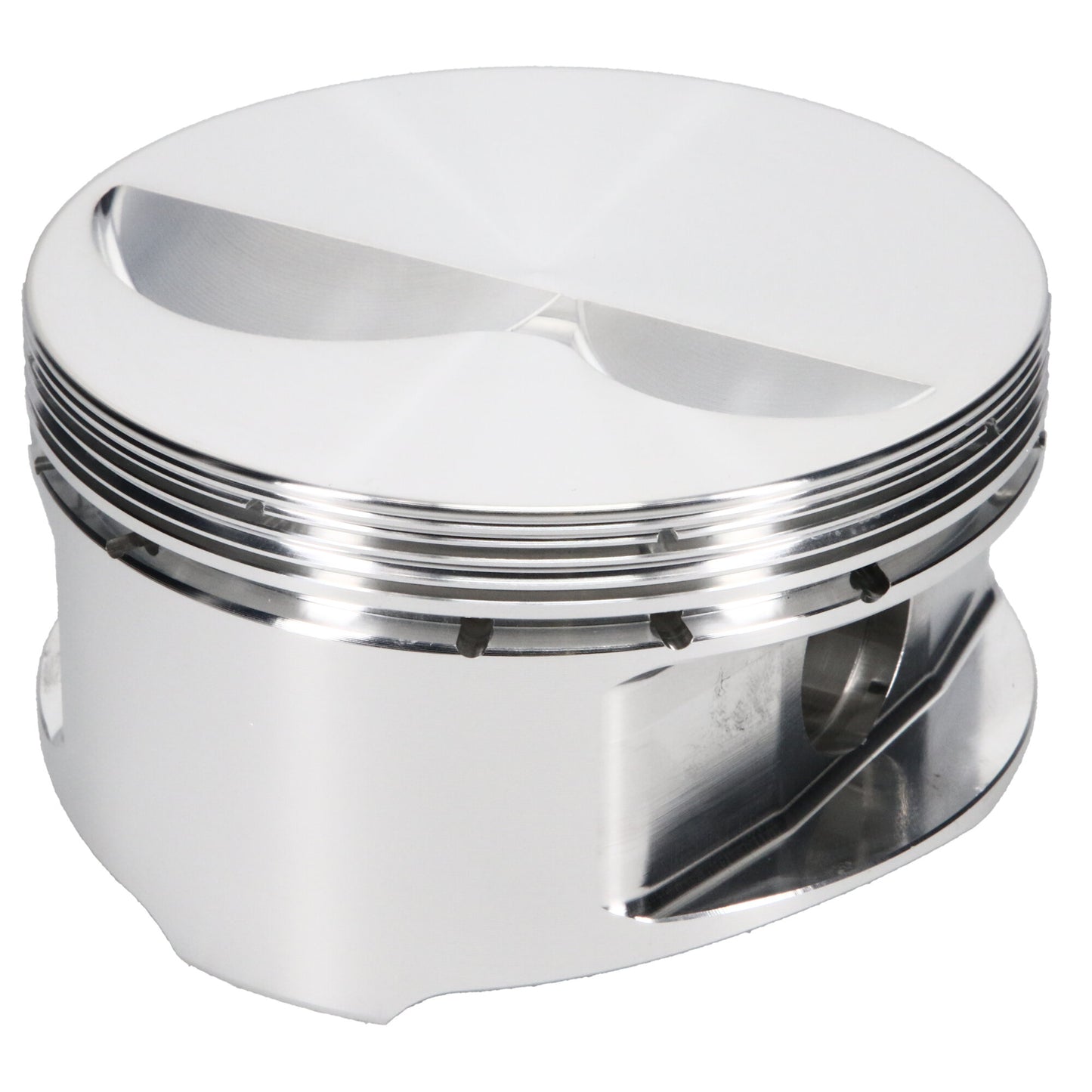

JE Pistons Chevrolet 4.040 in. Bore Right 170693R

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564187284
• Brand Name: JE Pistons
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 404
• Piston Head Type: Flat
• Piston Material: 2618
• Piston Pin Length: 2.500
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.927
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -4.1
• Product Market: Domestic
• Ringset Included: No
• Second Compression Ring Thickness: 0.044
• Top Compression Ring Thickness: 0.0436
• Add-On: J71408-4040-5
• Add-On: 927-2500-15-51S
• Add-On: 927-042-CS
• Bore Diameter: 4.040
• Compression Height: 1.250
• Cylinder Head: CHEVROLET 23 DEG 20/30
• Engine: SMALL BLOCK CHEVROLET
• Forging Type: Round
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.119

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.4 lb
