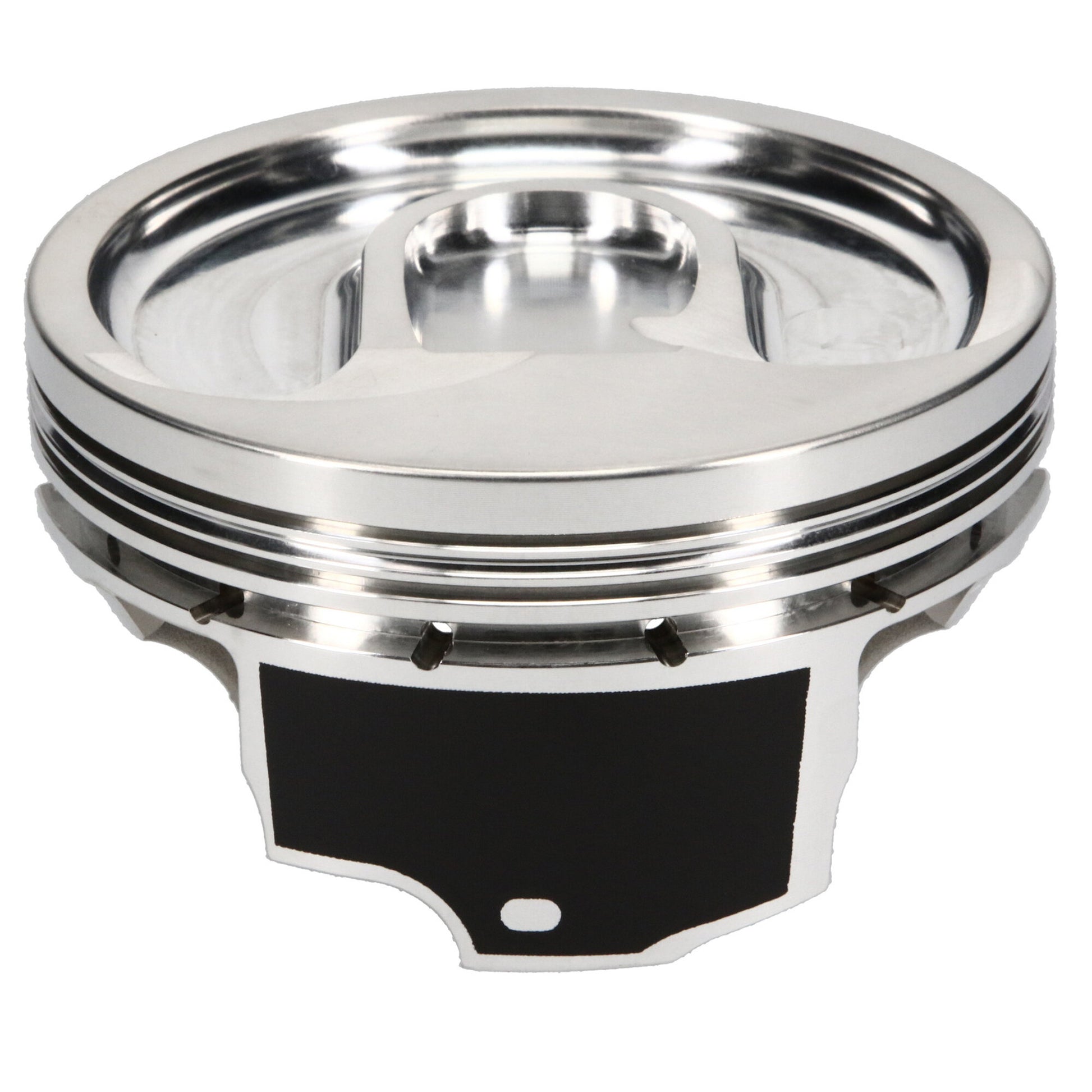

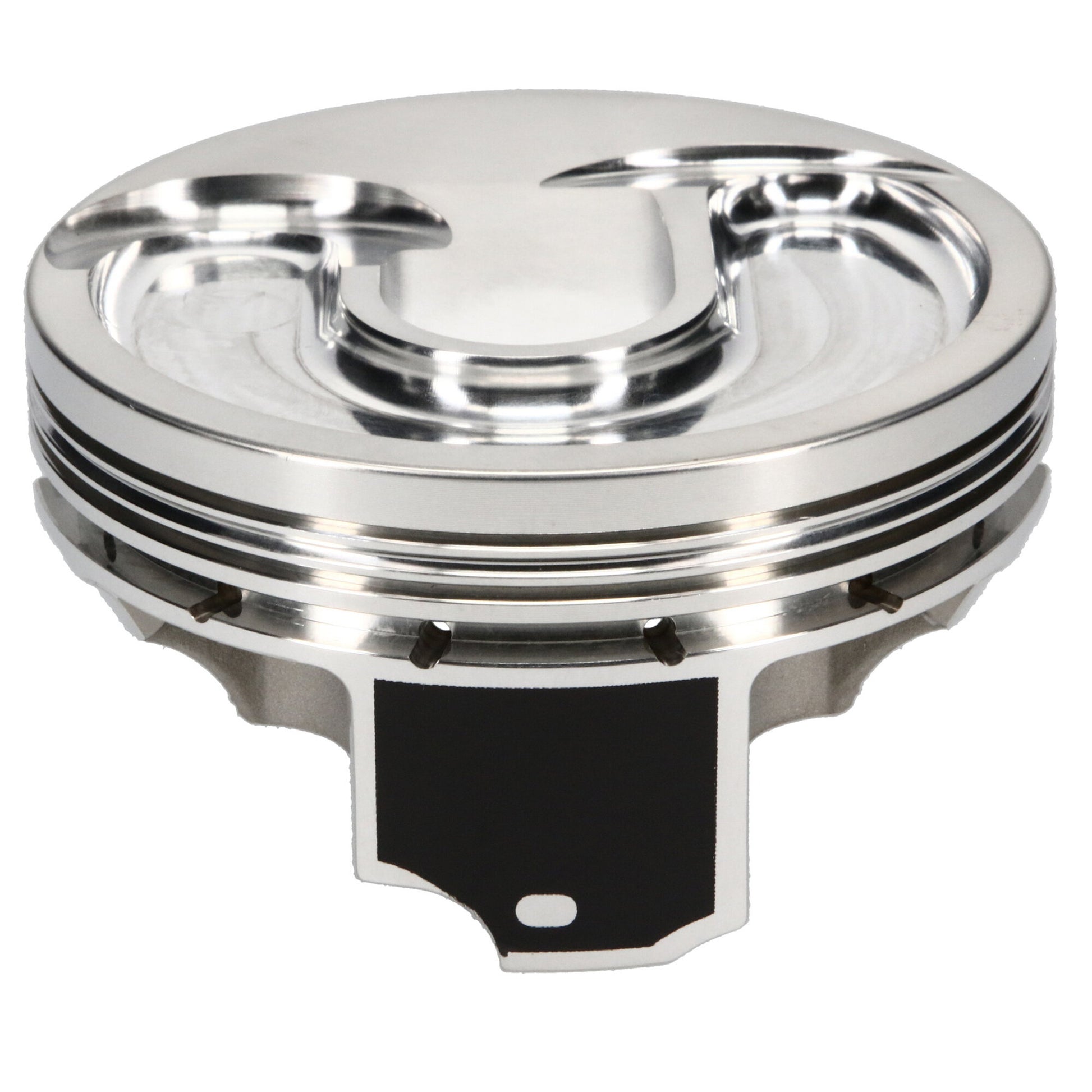

JE Pistons Chevrolet 4.075 in. Bore Left 338681L

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Attributes:

• GTIN: 00193564201003
• Brand Name: JE Pistons
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.06
• Top Compression Ring Thickness: 0.048
• Add-On: JG31F1-4075-5
• Add-On: 927-2250-15-51C
• Add-On: 927-073-MW
• Bore Diameter: 4.075
• Compression Height: 1.304
• Cylinder Head: GEN 5 LT1
• Engine: CHEVROLET LT1 GEN V
• Forging Type: FSR
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.1175
• Out of Stock Message: Call for Availability
• Piston Head Type: Dome
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.927
• Piston Pin Wall Thickness: 0.150
• Piston Volume: 2.2
• Product Market: Domestic

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.4 lb
