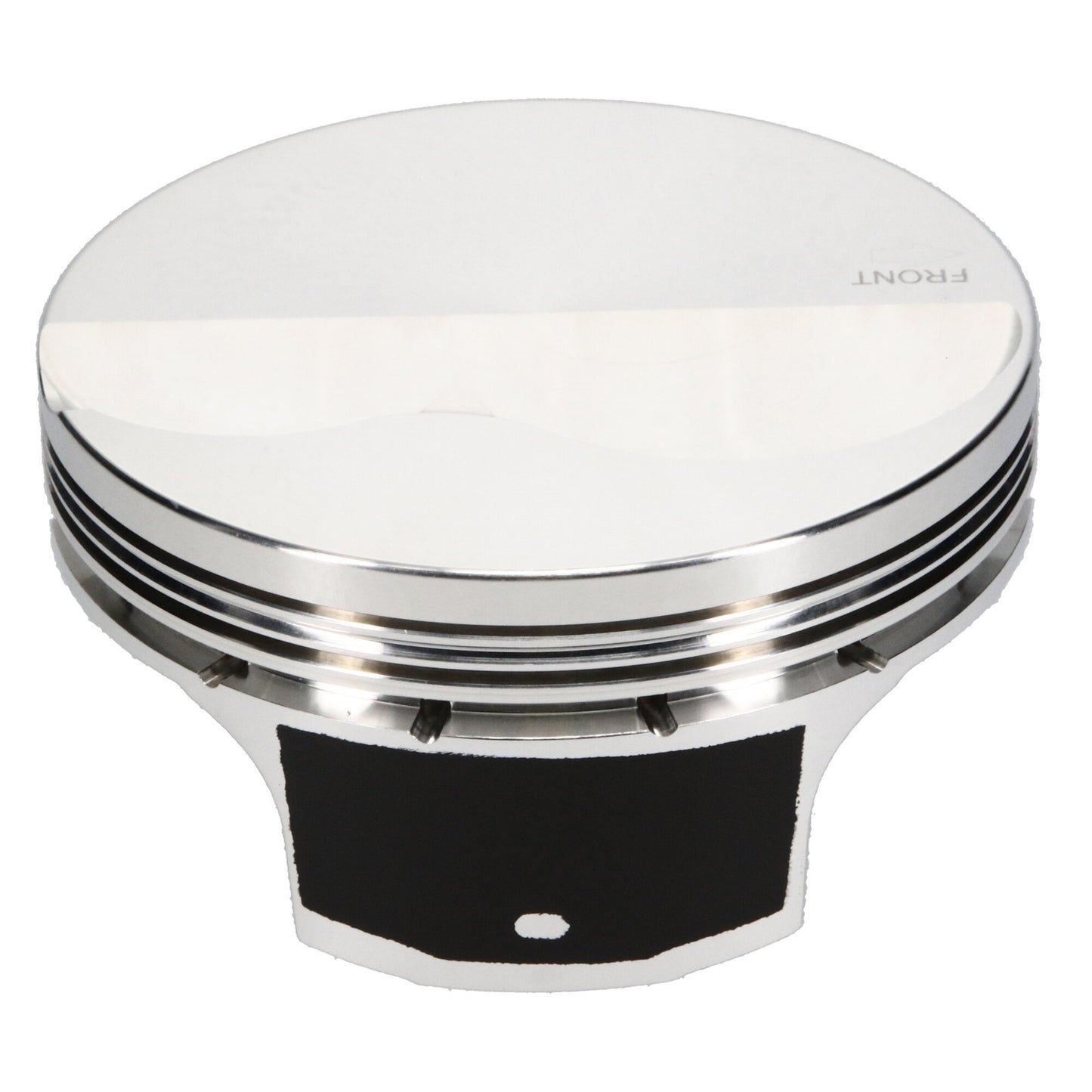

JE Pistons Chevrolet 4.135 in. Bore Right 312000R

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Attributes:

• GTIN: 00193564208675
• Brand Name: JE Pistons
• Add-On: JG31F8-4135-2
• Add-On: 927-2250-15-51C
• Add-On: 927-073-MW
• Bore Diameter: 4.135
• Compression Height: 1.065
• Cylinder Head: LS 12 DEG/15 DEG COMBO VR
• Engine: CHEVROLET LS GEN III/IV
• Forging Type: FSR
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.149
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 410
• Piston Head Type: Flat
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.927
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -5
• Product Market: Domestic
• Ringset Included: No
• Second Compression Ring Thickness: 0.06
• Top Compression Ring Thickness: 0.048

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.4 lb
