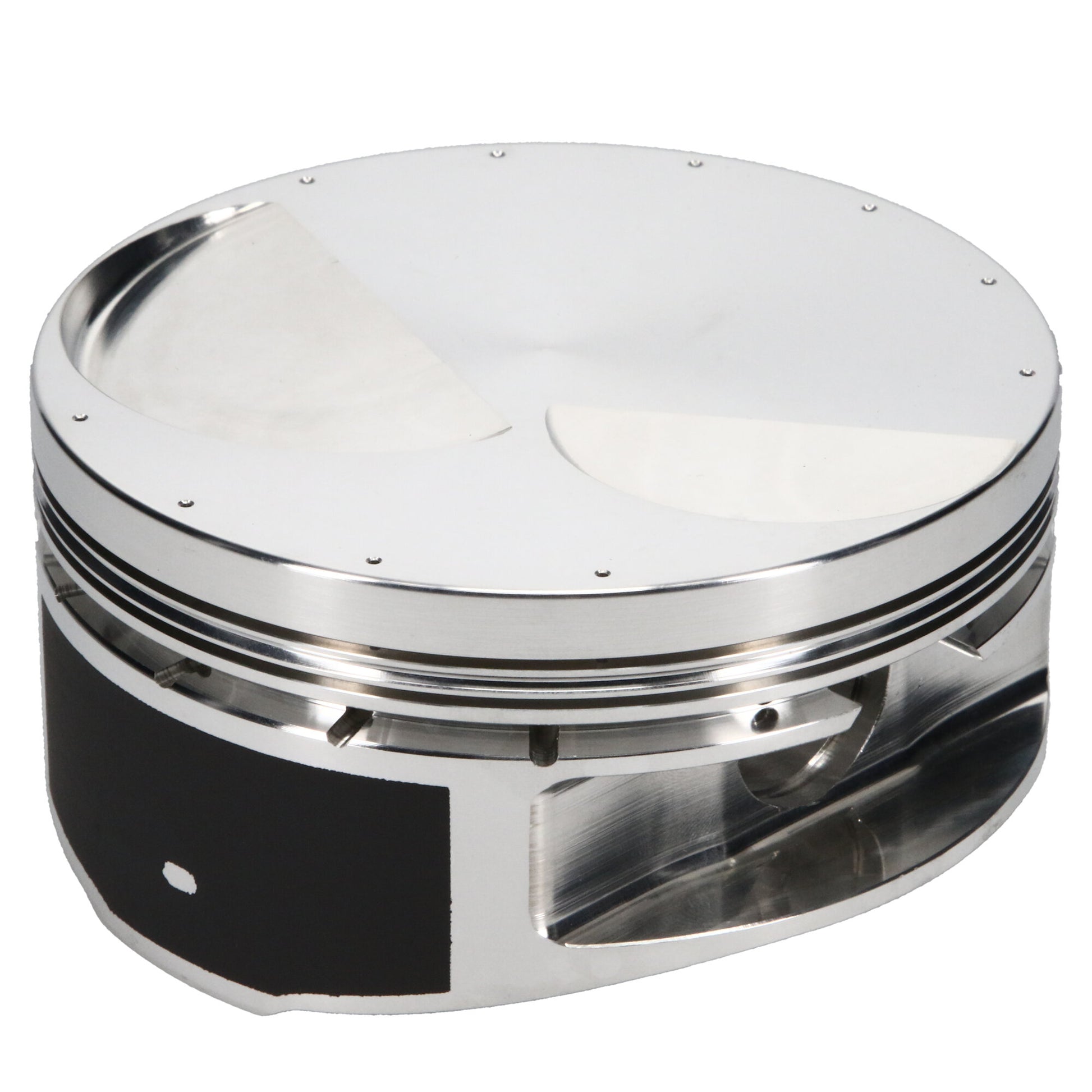

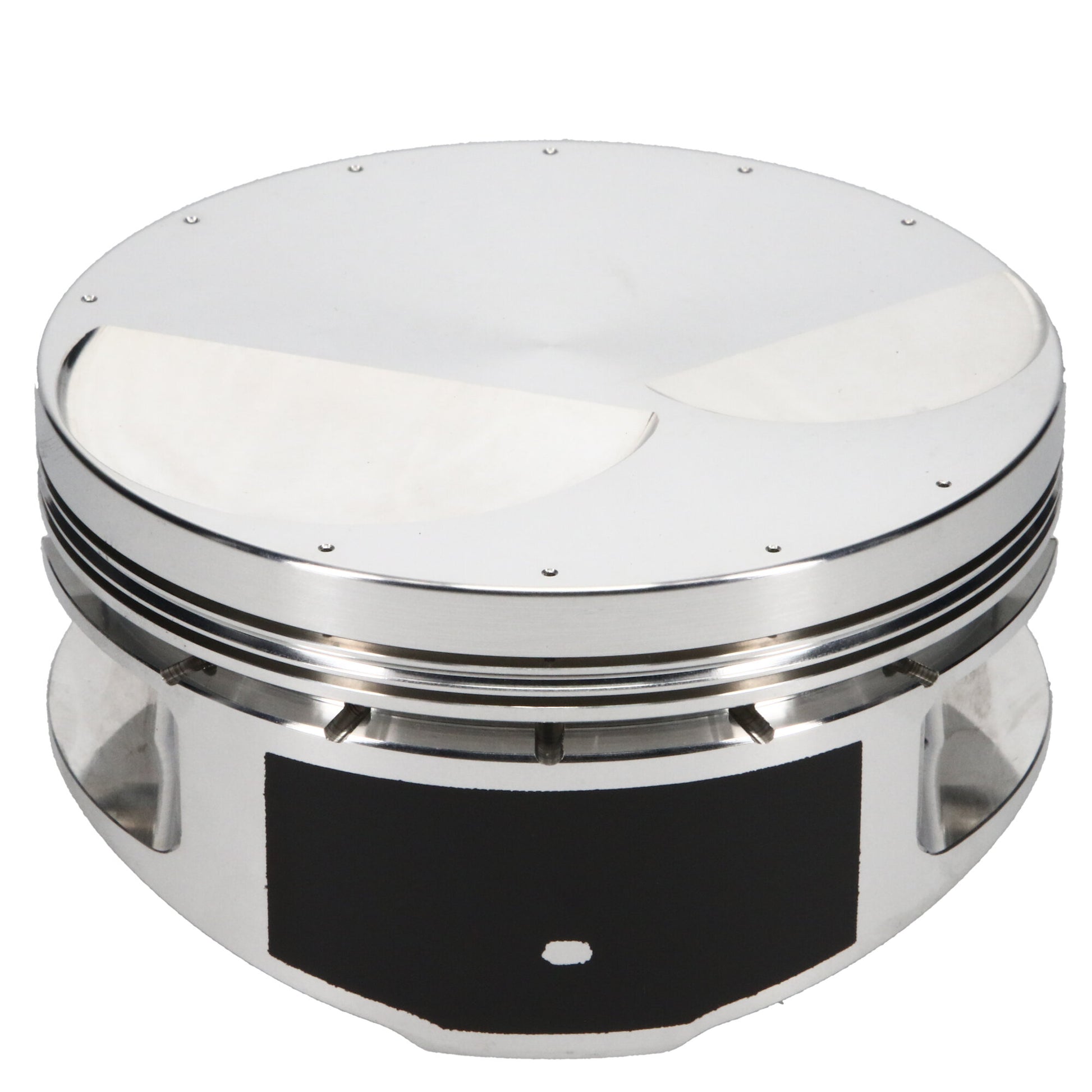

JE Pistons Chevrolet 4.610 in. Bore Single 353419S

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564196613
• Brand Name: JE Pistons
• Add-On: JG86H8-4610-5
• Add-On: 990-2930-20-TSS
• Add-On: 990-833-090/192-597
• Bore Diameter: 4.610
• Compression Height: 1.120
• Cylinder Head: BIG CHIEF 12 DEG/14 DEG
• Engine: BIG BLOCK CHEVY
• Forging Type: Round
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.188
• Out of Stock Message: Call for Availability
• Piston Head Type: Flat
• Piston Material: 2618
• Piston Pin Length: 2.930
• Piston Pin Outside Diameter: 0.990
• Piston Pin Wall Thickness: 0.200
• Piston Volume: -7.3
• Product Market: Domestic
• Ringset Included: No
• Second Compression Ring Thickness: 0.064
• Top Compression Ring Thickness: 0.0435

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.8 lb
