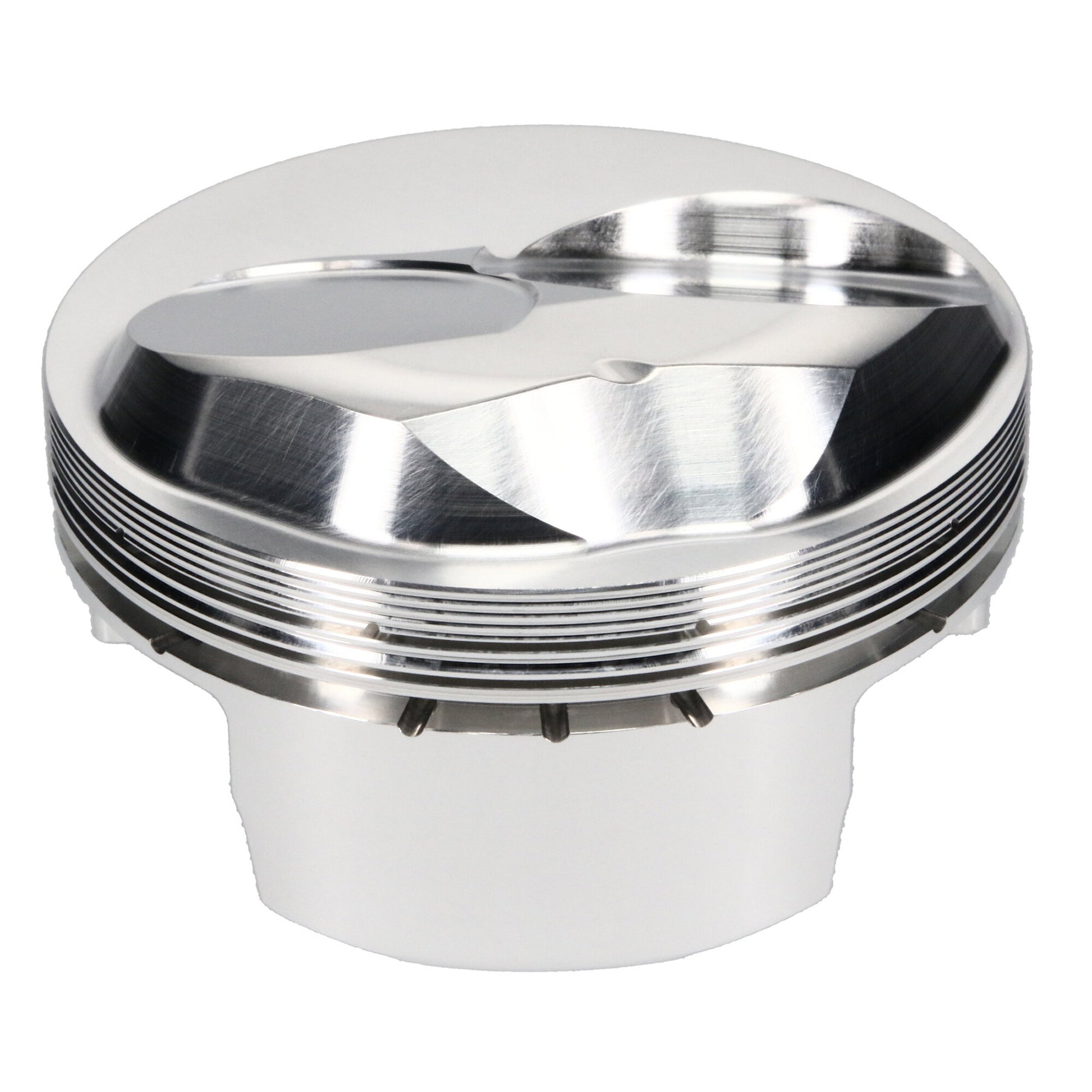

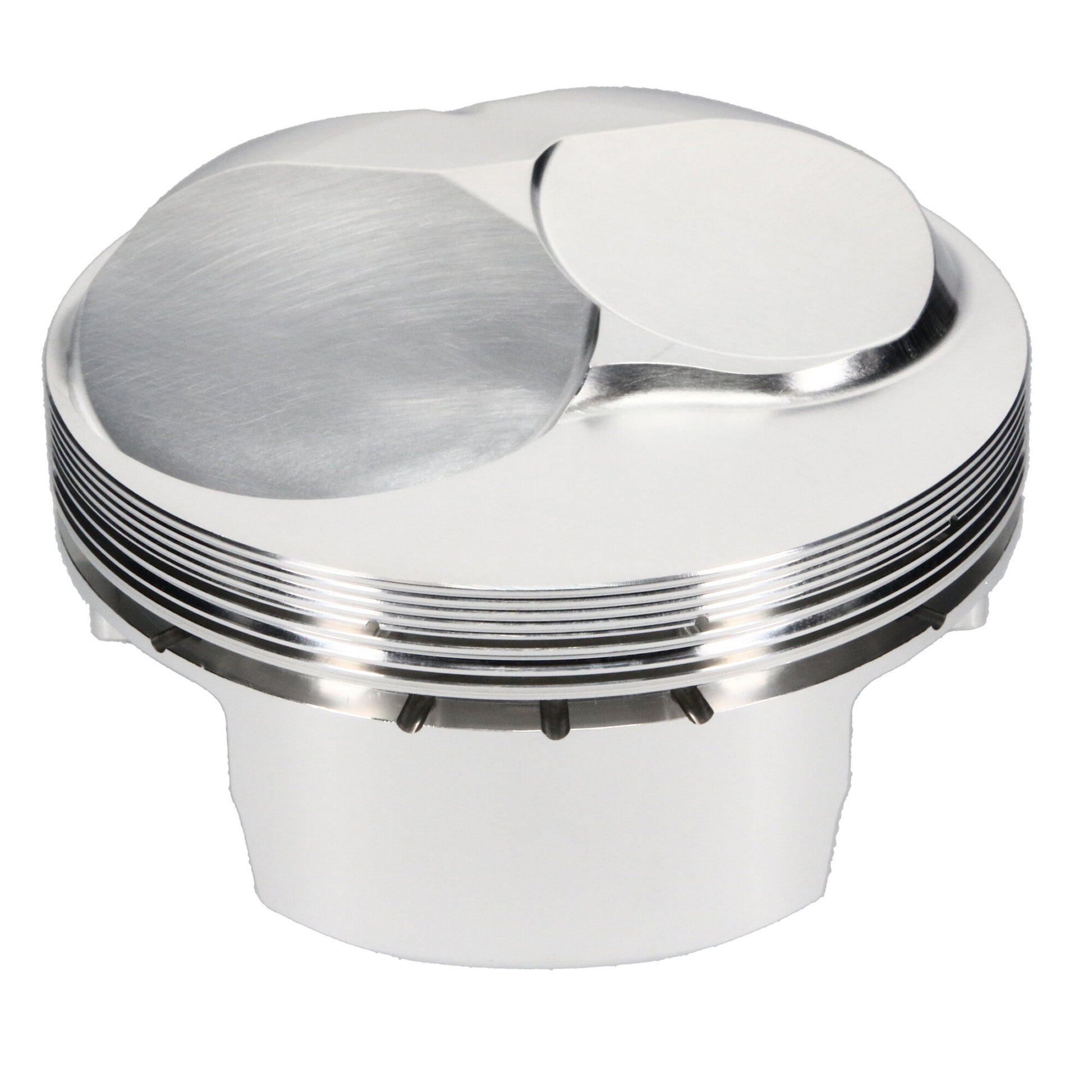

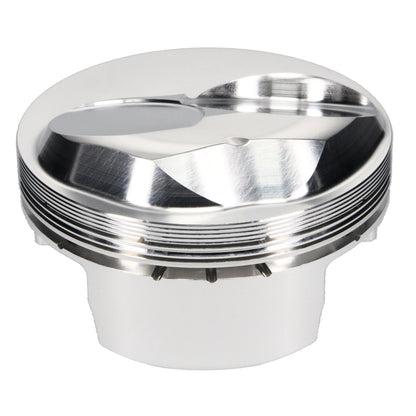

JE Pistons Chevrolet 4.625 in. Bore Single 330179S

Our new F.S.R. hollow dome GP (Gas Ported) piston line is designed for circle track and drag racing applications. They are lighter than traditional full round pistons (including wrist pin and rings), but are stronger and more durable due to an advanced FEA-designed forging.

Attributes:

• GTIN: 00193564197573
• Brand Name: JE Pistons
• Piston Volume: 49
• Product Market: Domestic
• Ringset Included: No
• Second Compression Ring Thickness: 0.044
• Top Compression Ring Thickness: 0.044
• Add-On: JG7708-4625-5
• Add-On: 990-2500-18-51C
• Add-On: 990-073-MW
• Bore Diameter: 4.625
• Compression Height: 1.270
• Cylinder Head: OPEN CHAMBER
• Engine: BIG BLOCK CHEVY
• Forging Type: FSR
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.119
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 706
• Piston Head Type: Dome
• Piston Material: 2618
• Piston Pin Length: 2.500
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.990
• Piston Pin Wall Thickness: 0.180

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.8 lb
