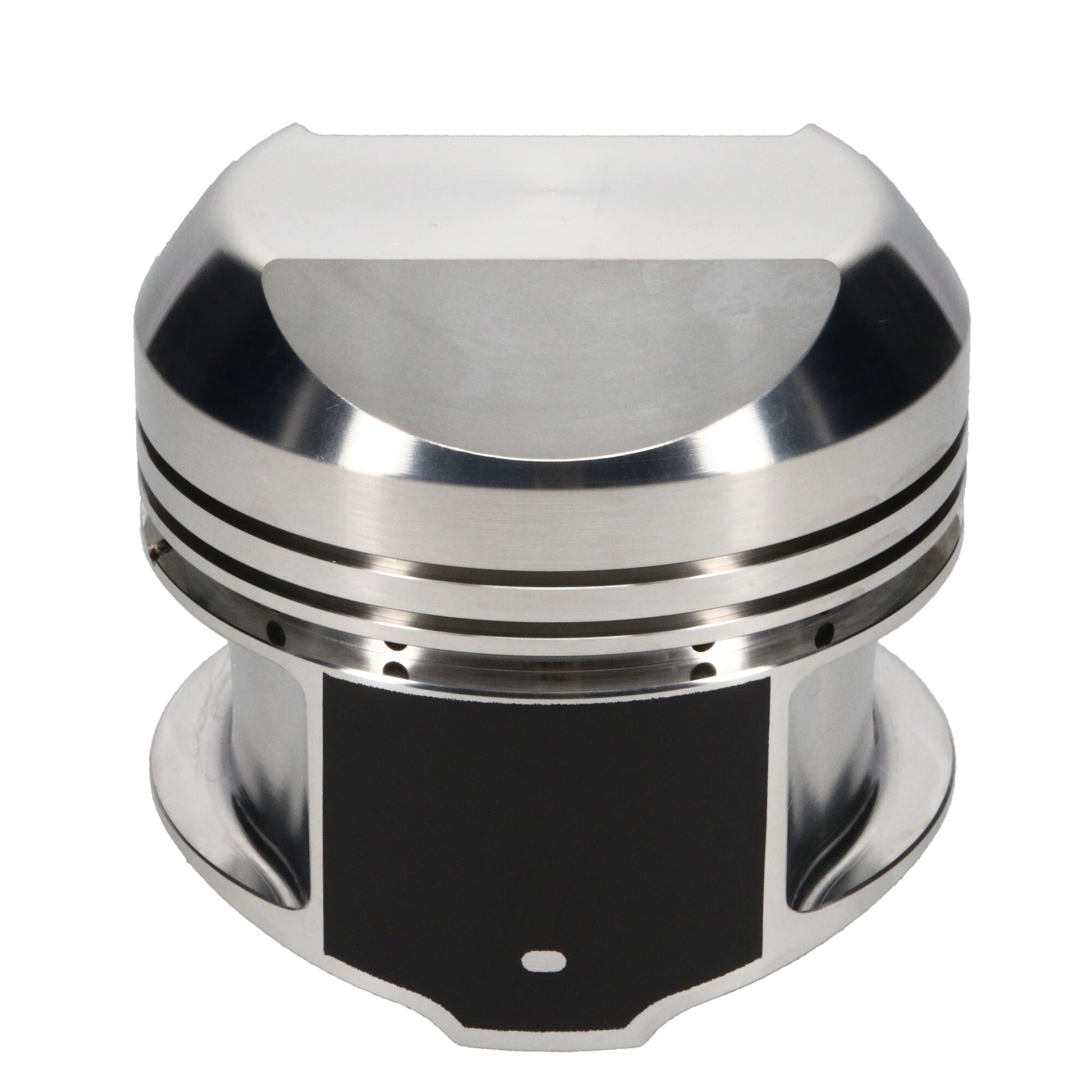

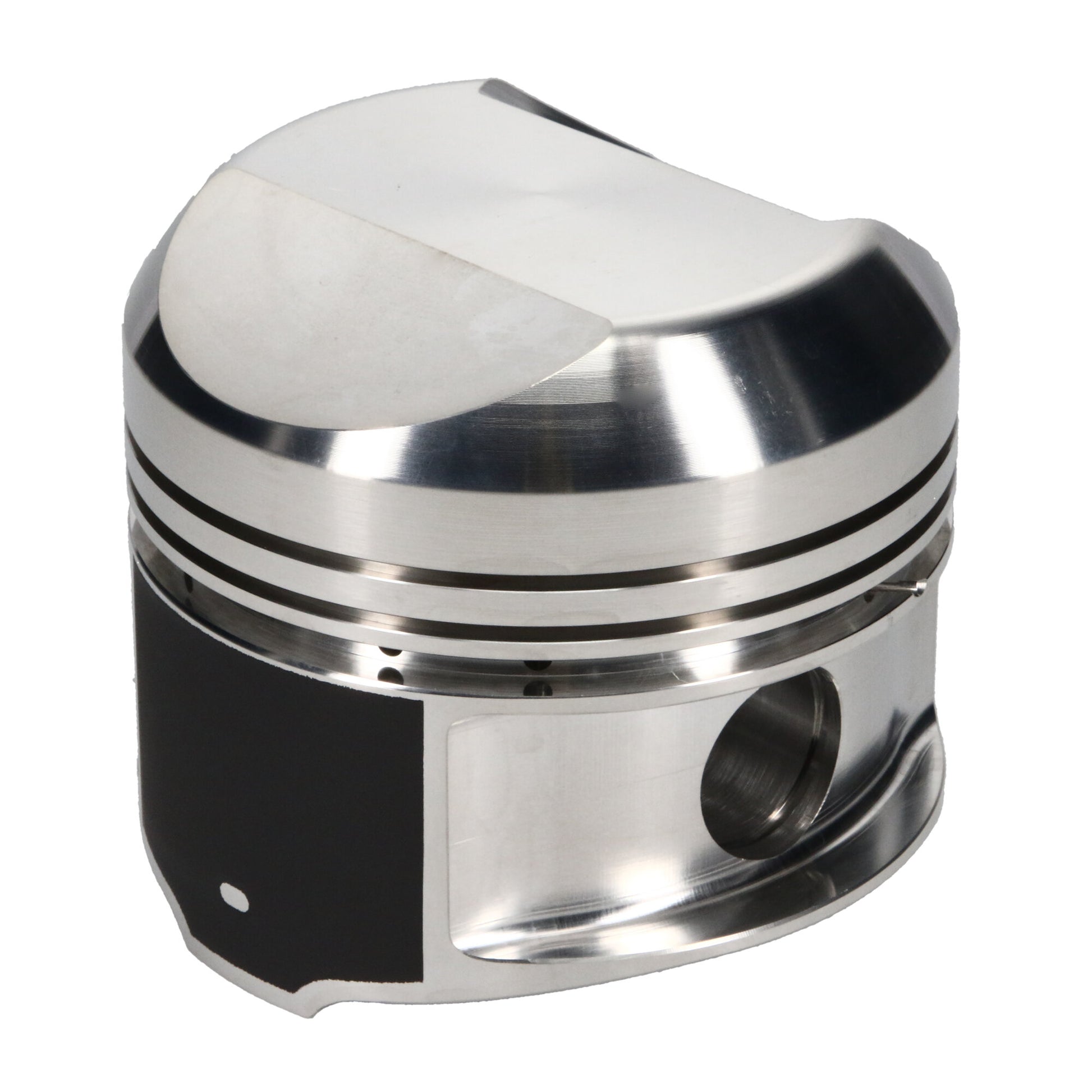

JE Pistons Chrysler 4.290 in. Bore Single 118759S

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564193889
• Brand Name: JE Pistons
• Ringset Included: No
• Second Compression Ring Thickness: 0.08
• Top Compression Ring Thickness: 0.08
• Add-On: JP00F8-4290-5
• Add-On: 031-2930-17-51S
• Add-On: 031-042-CS
• Bore Diameter: 4.290
• Compression Height: 1.955
• Cylinder Head: 426 HEMI
• Engine: 426 HEMI
• Forging Type: Round
• Industry: Automotive
• Make: CHRYSLER
• Oil Ring Thickness: 0.188
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 841
• Piston Head Type: Dome
• Piston Material: 4032
• Piston Pin Length: 2.930
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 1.031
• Piston Pin Wall Thickness: 0.170
• Piston Volume: 88
• Product Market: Domestic

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.9 lb
