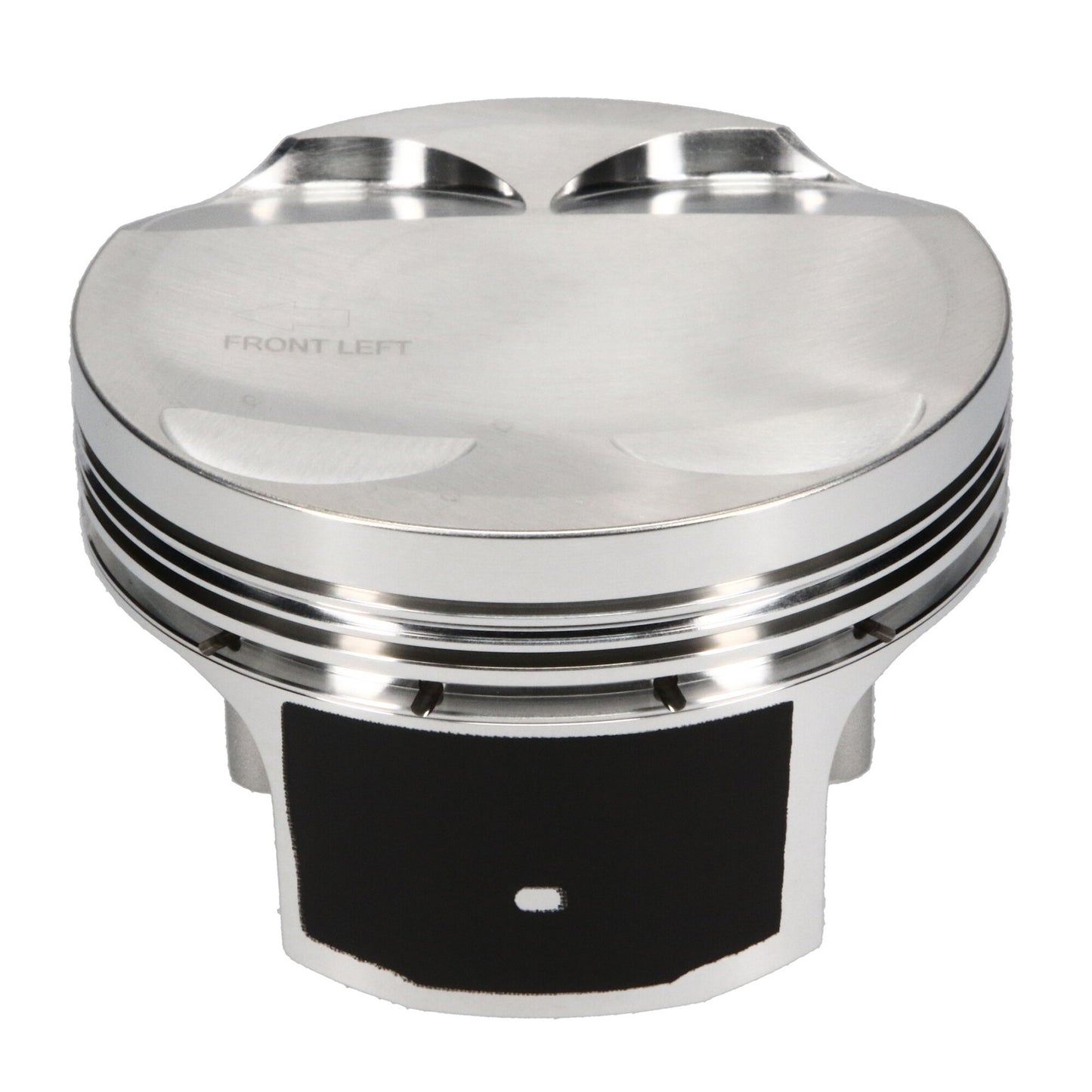

JE Pistons Ford 3.552 in. Bore Left 314629L

JE Pistons Modular Ford piston line utilizes a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower engines. Lightweight and extremely durable, these pistons are machined for modern 1.0mm, 1.2mm, 2.8mm and 1.2mm, 1.5mm, 3.0mm rings.

Attributes:

• GTIN: 00193564190710
• Brand Name: JE Pistons
• Add-On: JG3208-3551-0
• Add-On: 866-2250-15-51C
• Add-On: 866-063-MW
• Bore Diameter: 3.552
• Compression Height: 1.220
• Cylinder Head: MODULAR 4.6 4V
• Engine: MODULAR FORD
• Forging Type: FSR
• Industry: Automotive
• Make: FORD
• Oil Ring Thickness: 0.119
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 357
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.866
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -15.6
• Product Market: Domestic
• Ringset Included: No
• Second Compression Ring Thickness: 0.06
• Top Compression Ring Thickness: 0.048

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.3 lb
