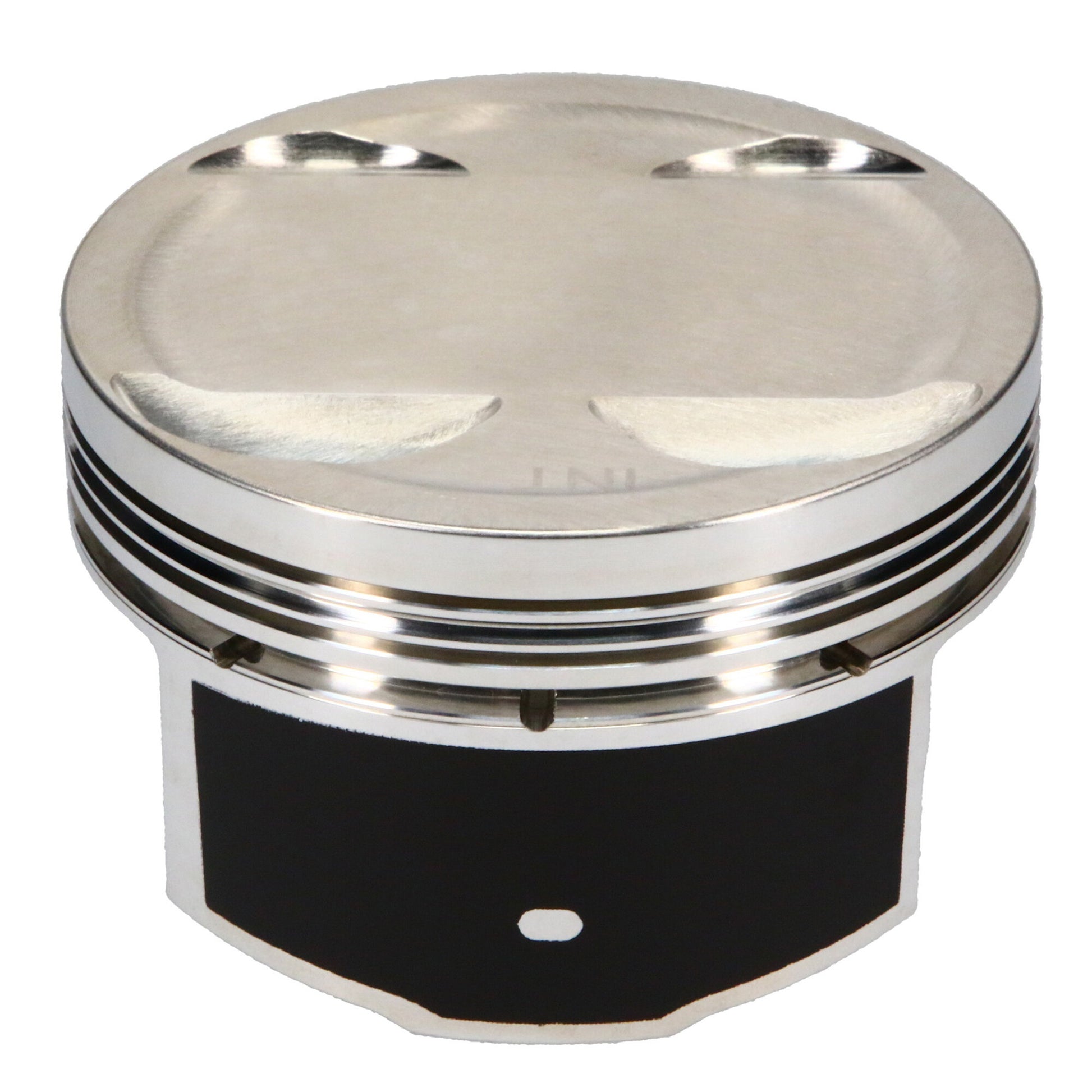

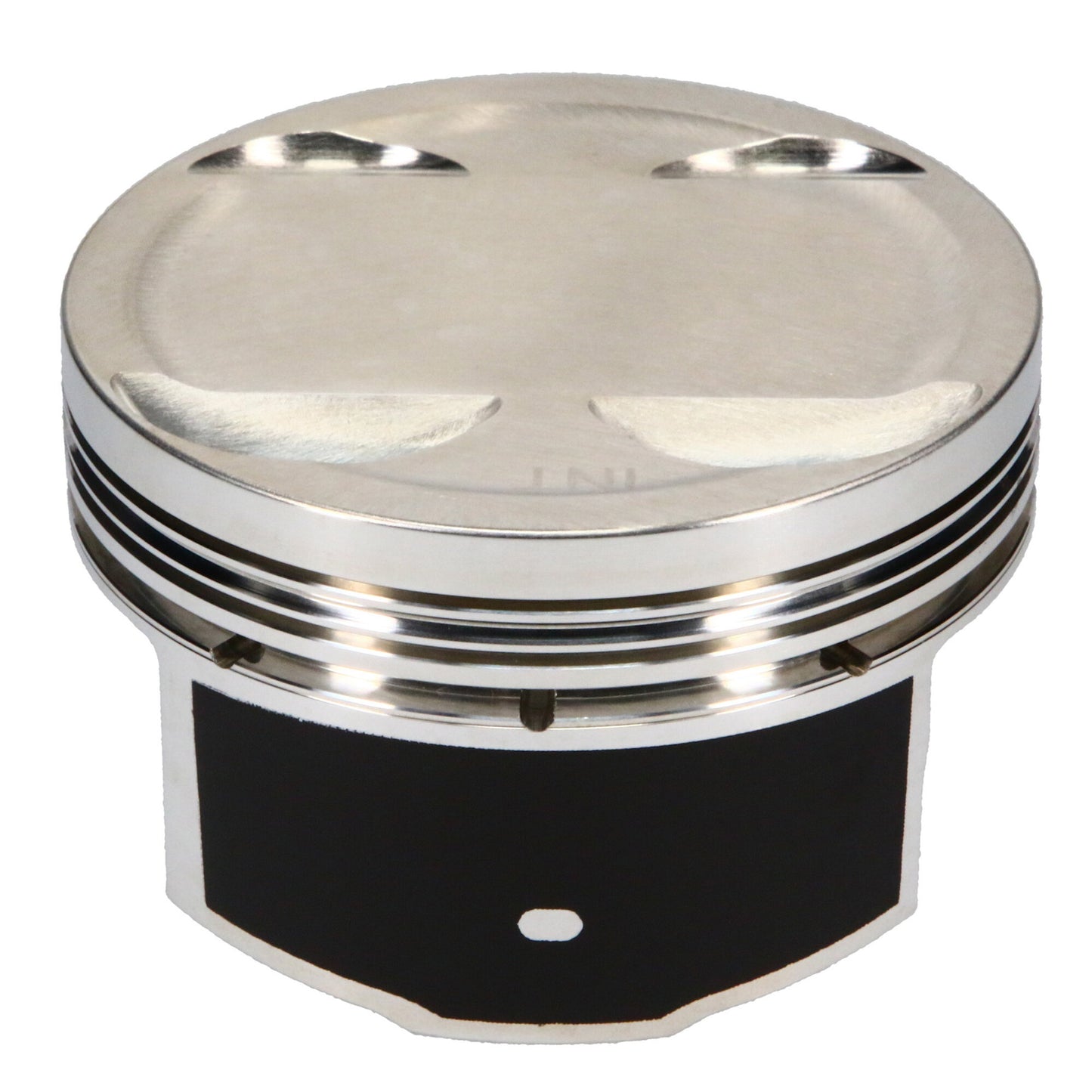

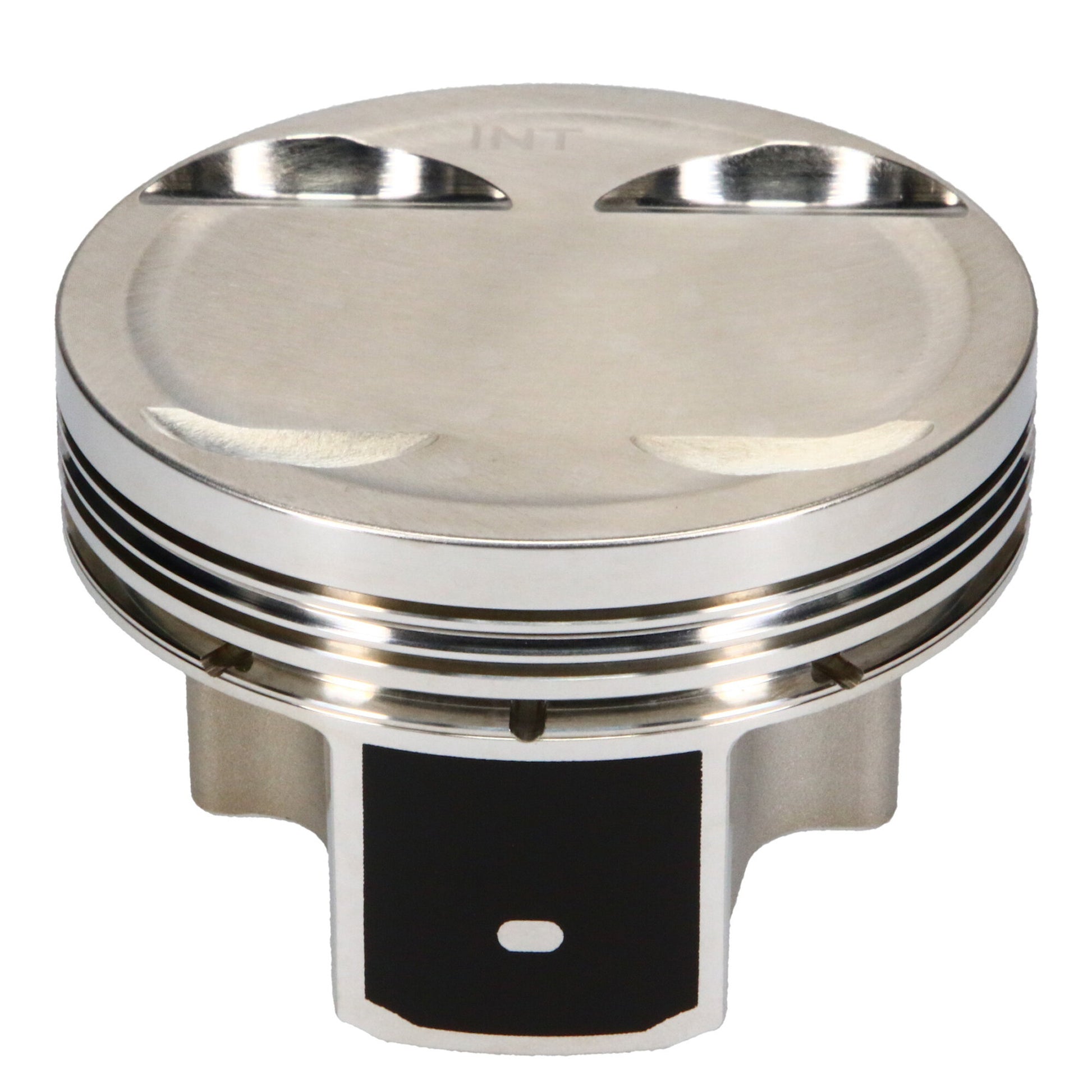

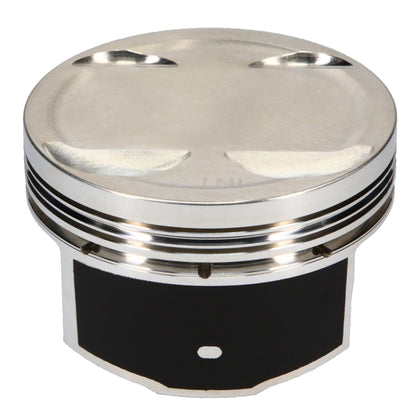

JE Pistons Honda 3.445 in. Bore Single 208472S

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564013545
• Brand Name: JE Pistons
• Add-On: JC8A04-3445
• Add-On: 866-2250-15-51C
• Add-On: 866-063-MW
• Bore Diameter: 87.50
• Compression Height: 1.204
• Cylinder Head: 2.3L 4 VALVE
• Engine: H SERIES
• Forging Type: Round
• Industry: Automotive
• Make: HONDA
• Oil Ring Thickness: 0.111
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 328
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.866
• Piston Pin Wall Thickness: 0.150
• Piston Volume: -11.9
• Product Market: Sport Compact
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.048
• Top Compression Ring Thickness: 0.048

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.2 lb
