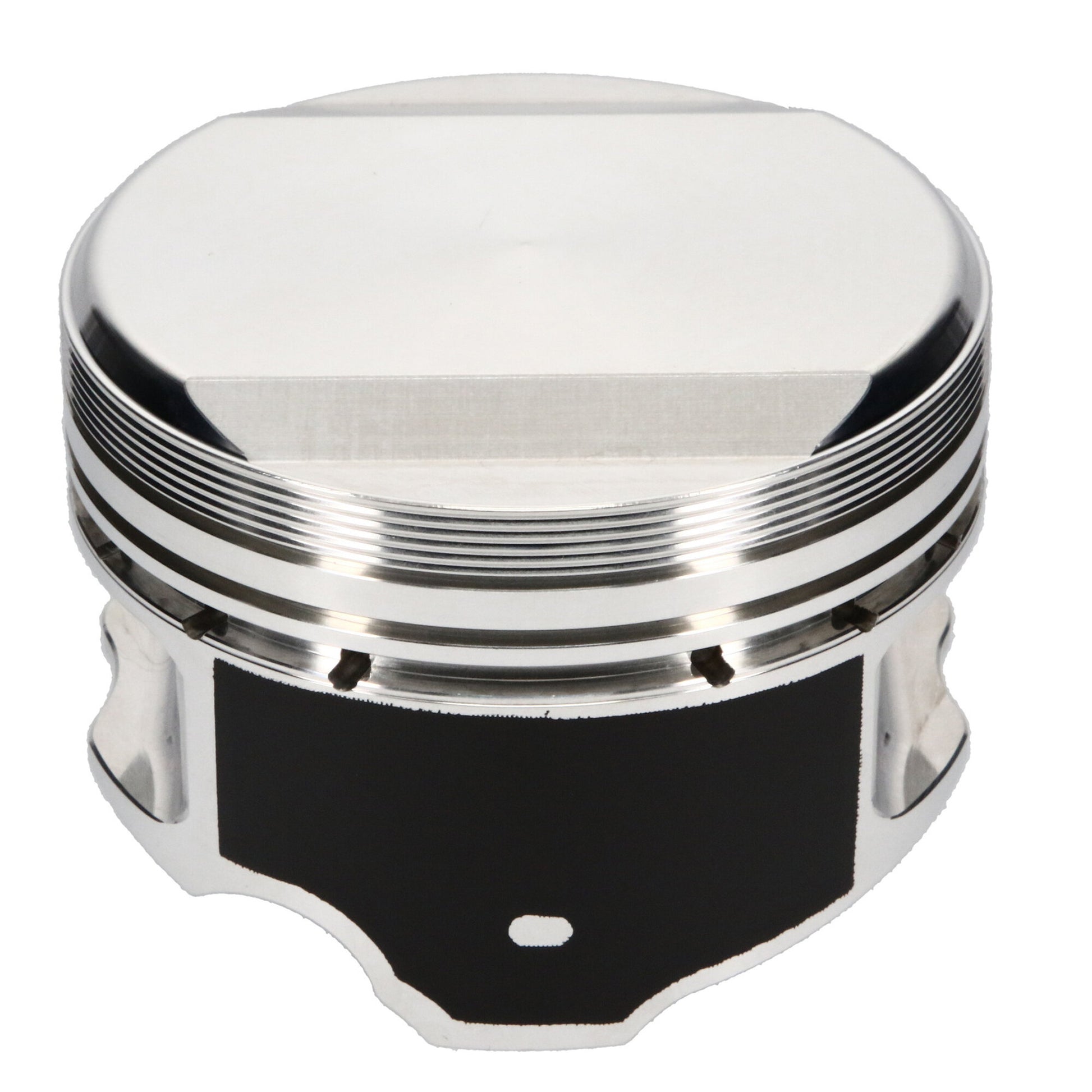

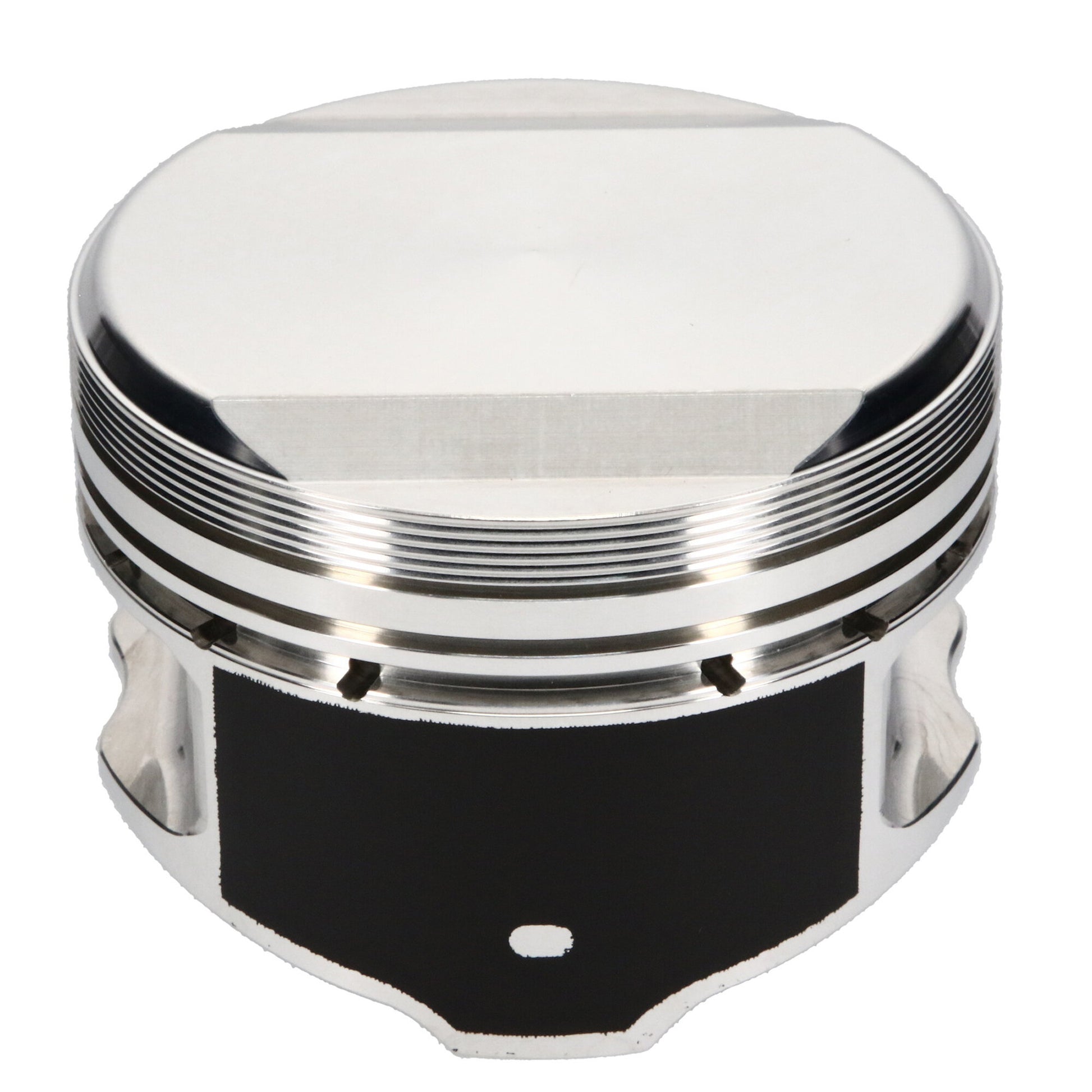

JE Pistons Nissan 3.405 in. Bore Kit 209849

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564042569
• Brand Name: JE Pistons
• Add-On: JC2104-3406
• Add-On: 827-2250-15-51C
• Add-On: 827-063-MW
• Bore Diameter: 86.50
• Compression Height: 1.185
• Cylinder Head: RB26DETT
• Engine: RB SERIES
• Forging Type: Round
• Industry: Automotive
• Make: NISSAN
• Oil Ring Thickness: 0.119
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 355
• Piston Head Type: Dome
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.827
• Piston Pin Wall Thickness: 0.150
• Piston Volume: 15.3
• Product Market: Sport Compact
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.06
• Top Compression Ring Thickness: 0.048

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.00 x 12.00 x 6.00 inches
• Weight: 7.2 lb
