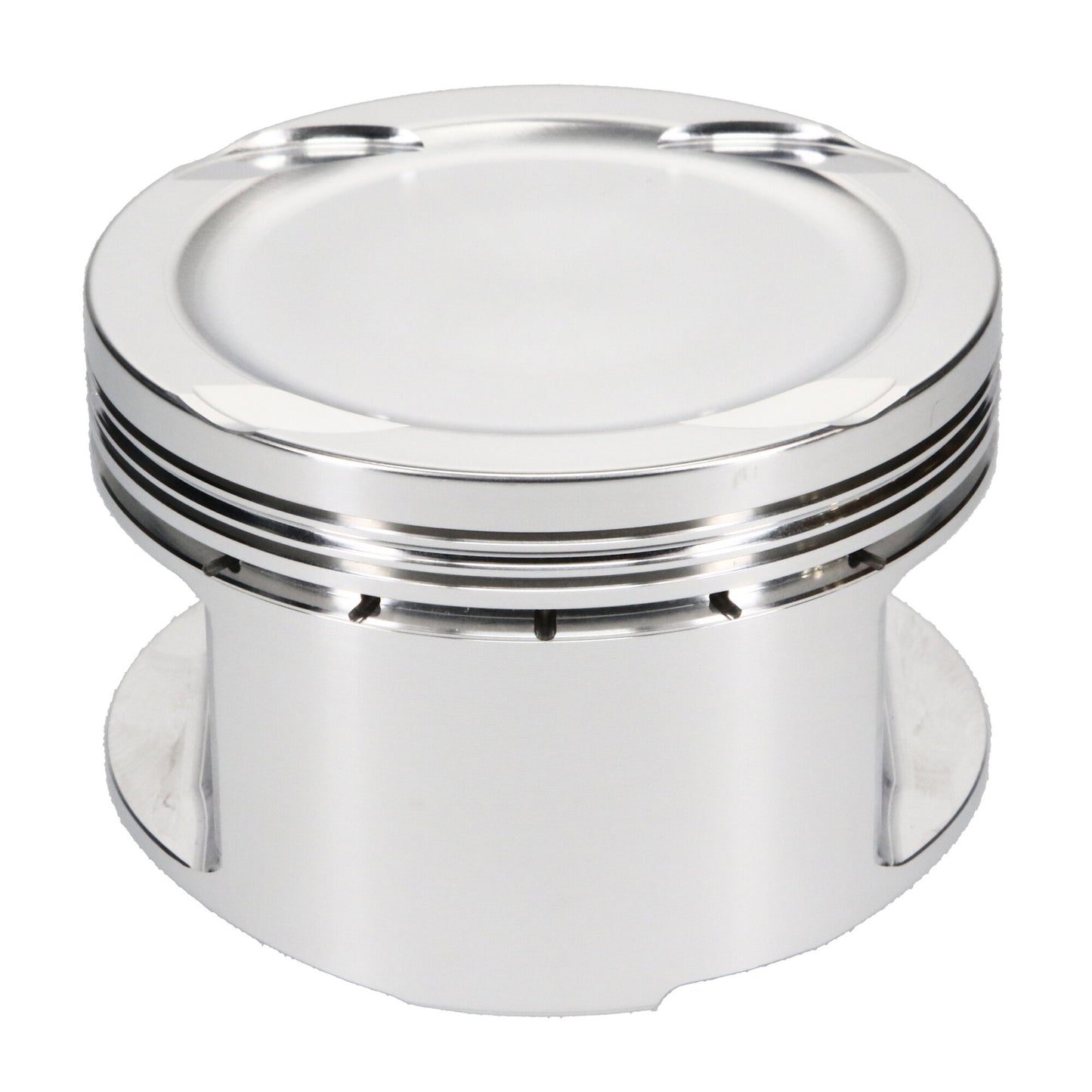

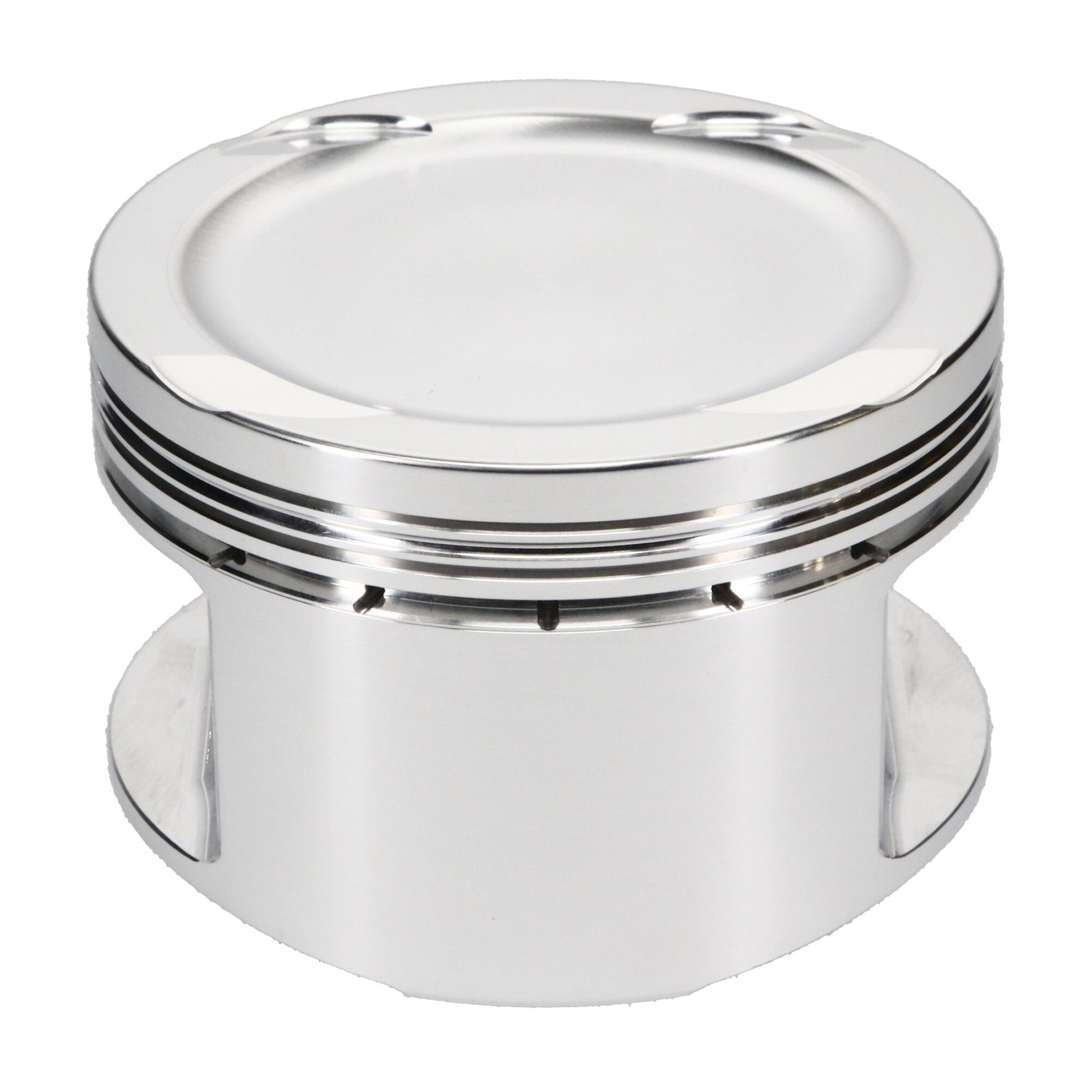

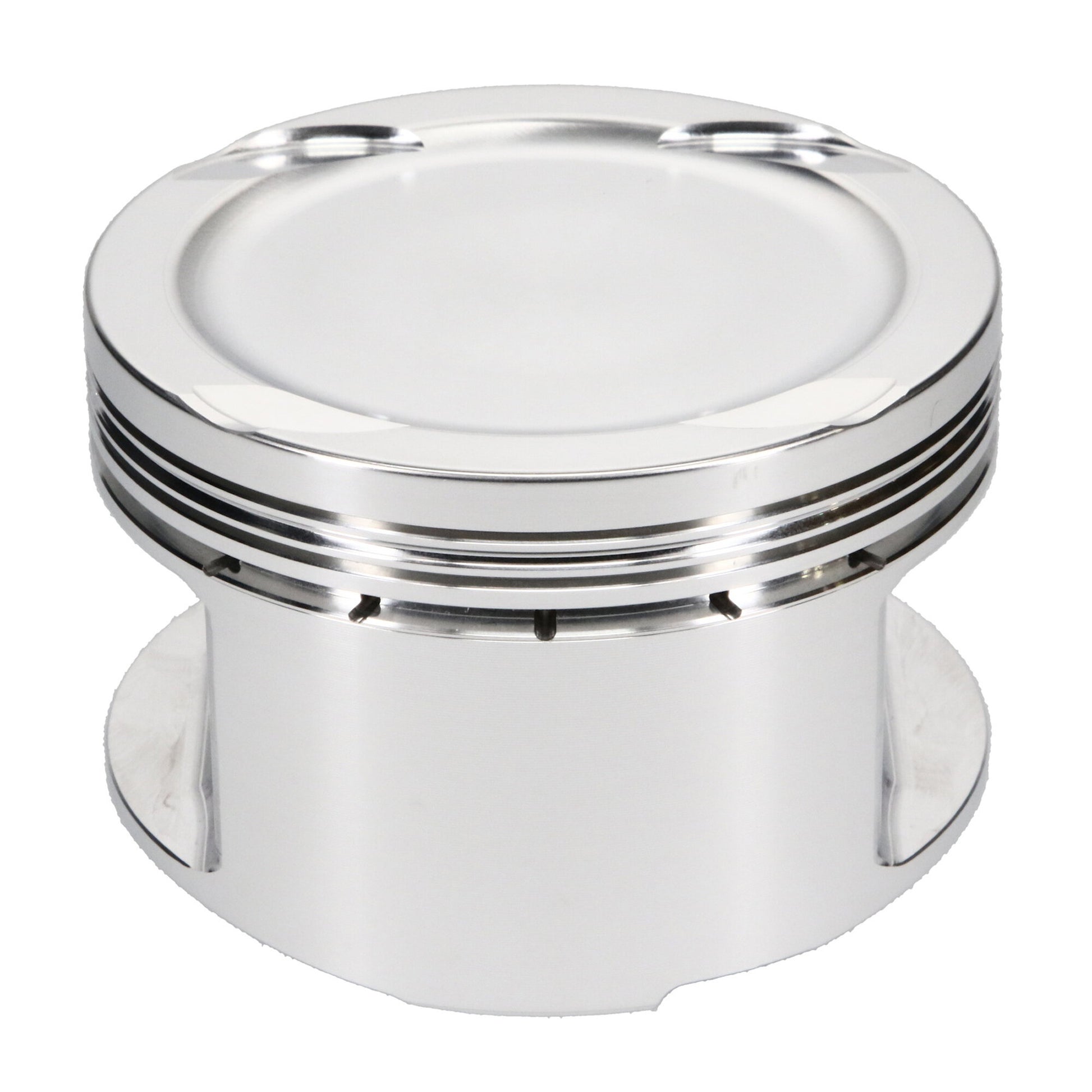

JE Pistons Toyota 3.957 in. Bore Kit 321312

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564032102
• Brand Name: JE Pistons
• Add-On: JG1001-3957
• Add-On: 024-2500-20-51S
• Add-On: 031-042-CS
• Bore Diameter: 100.50
• Compression Height: 1.653
• Cylinder Head: 1FZ-FE
• Engine: 1FZ-FE
• Forging Type: Round
• Industry: Automotive
• Make: TOYOTA
• Oil Ring Thickness: 0.111
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 476
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Pin Length: 2.500
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 1.024
• Piston Pin Wall Thickness: 0.200
• Piston Volume: -11.7
• Product Market: Sport Compact
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.048
• Top Compression Ring Thickness: 0.04

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12.00 x 12.00 x 6.00 inches
• Weight: 4.5 lb
