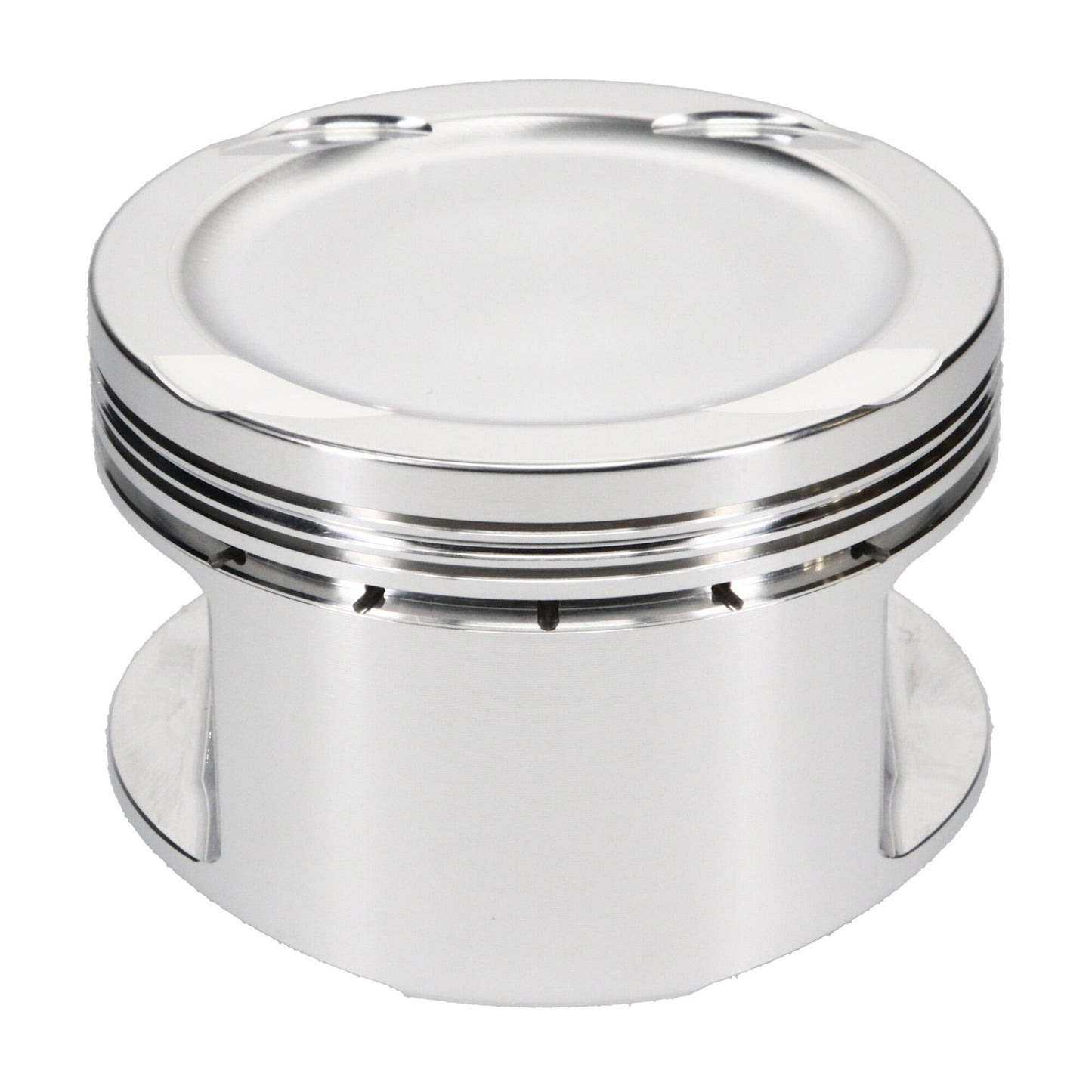

JE Pistons Toyota 3.976 in. Bore Single 321319S

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564024947
• Brand Name: JE Pistons
• Add-On: JG1001-3976
• Add-On: 024-2500-20-51S
• Add-On: 031-042-CS
• Bore Diameter: 101.00
• Compression Height: 1.653
• Cylinder Head: 1FZ-FE
• Engine: 1FZ-FE
• Forging Type: Round
• Industry: Automotive
• Make: TOYOTA
• Oil Ring Thickness: 0.111
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 499
• Piston Head Type: Dome
• Piston Material: 2618
• Piston Pin Length: 2.500
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 1.024
• Piston Pin Wall Thickness: 0.200
• Piston Volume: 16.4
• Product Market: Sport Compact
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.048
• Top Compression Ring Thickness: 0.04

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1 lb
