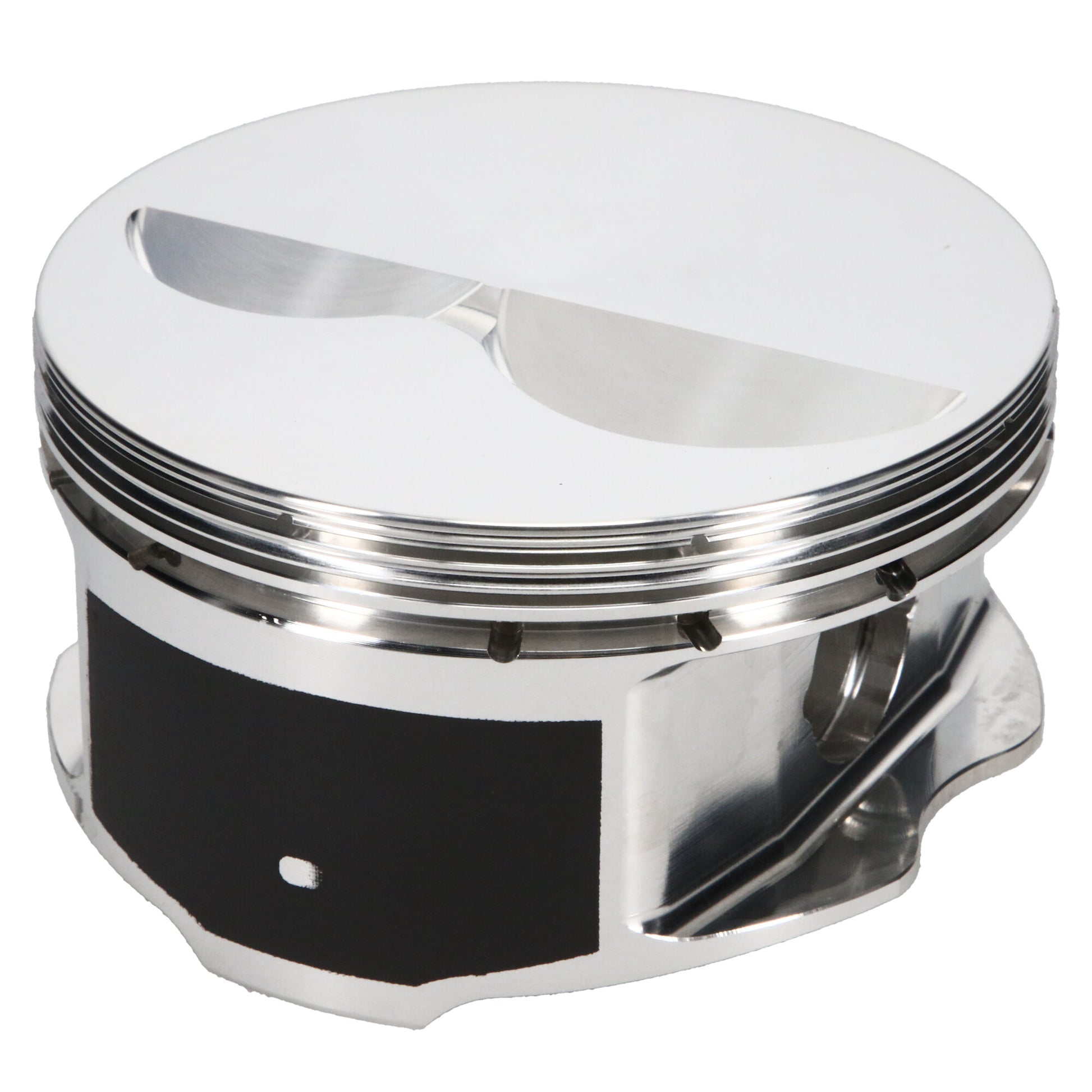

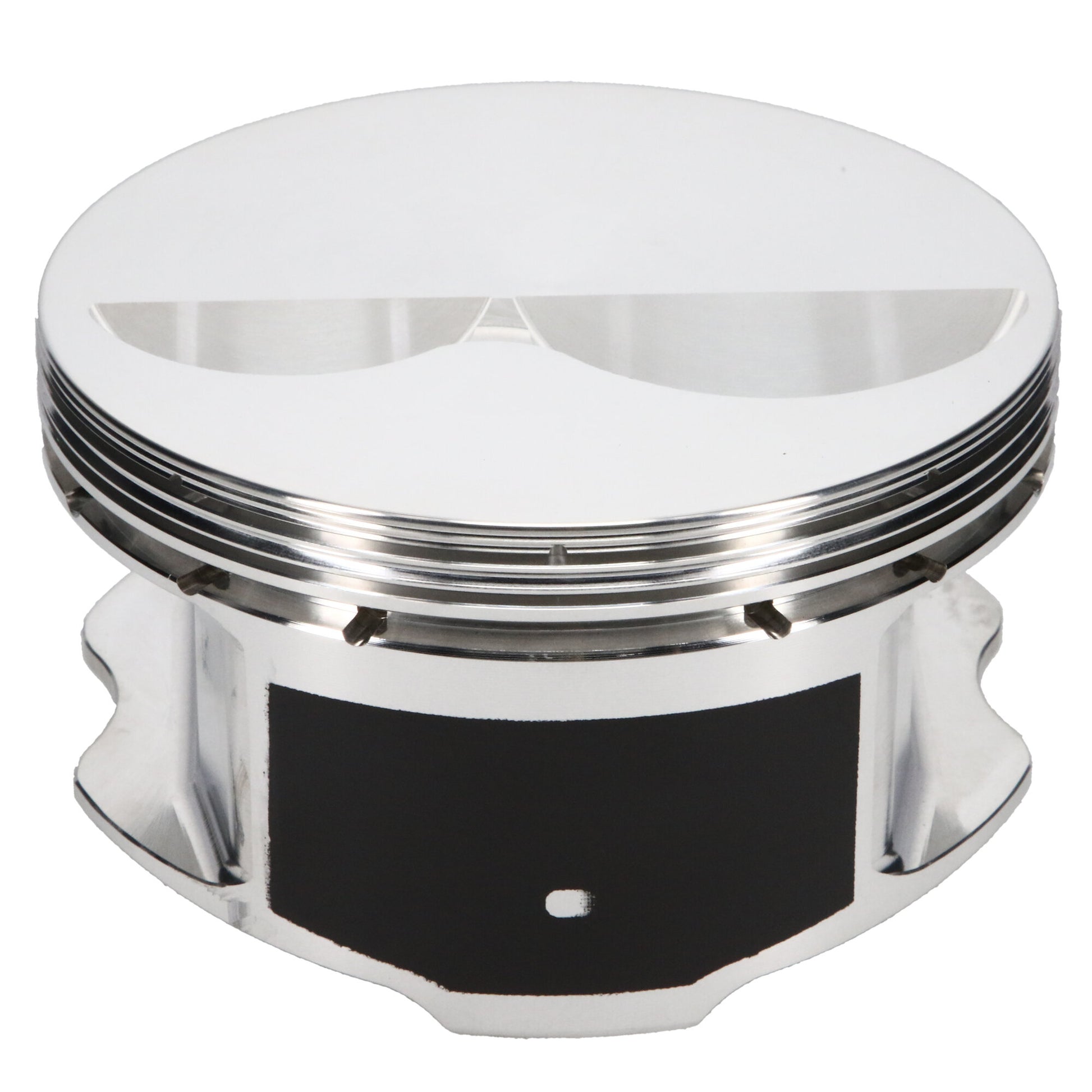

JE Pistons Ultra Chevrolet 4.060 in. Bore Left 194338L

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564187598
• Brand Name: JE Pistons
• Second Compression Ring Thickness: 0.044
• Top Compression Ring Thickness: 0.0436
• Add-On: J71408-4060-5
• Add-On: 927-2400-13-51C
• Add-On: 927-073-MW
• Bore Diameter: 4.060
• Compression Height: 1.550
• Cylinder Head: STD CHEVROLET 23 DEG
• Engine: SMALL BLOCK CHEVROLET
• Forging Type: Round
• Industry: Automotive
• Make: CHEVROLET
• Oil Ring Thickness: 0.119
• Out of Stock Message: Call for Availability
• Piston Avg Wt: 414
• Piston Head Type: Flat
• Piston Material: 2618
• Piston Pin Length: 2.400
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.927
• Piston Pin Wall Thickness: 0.130
• Piston Volume: -1.5
• Product Market: Domestic
• Ringset Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 5.00 x 5.00 inches
• Weight: 1.4 lb
