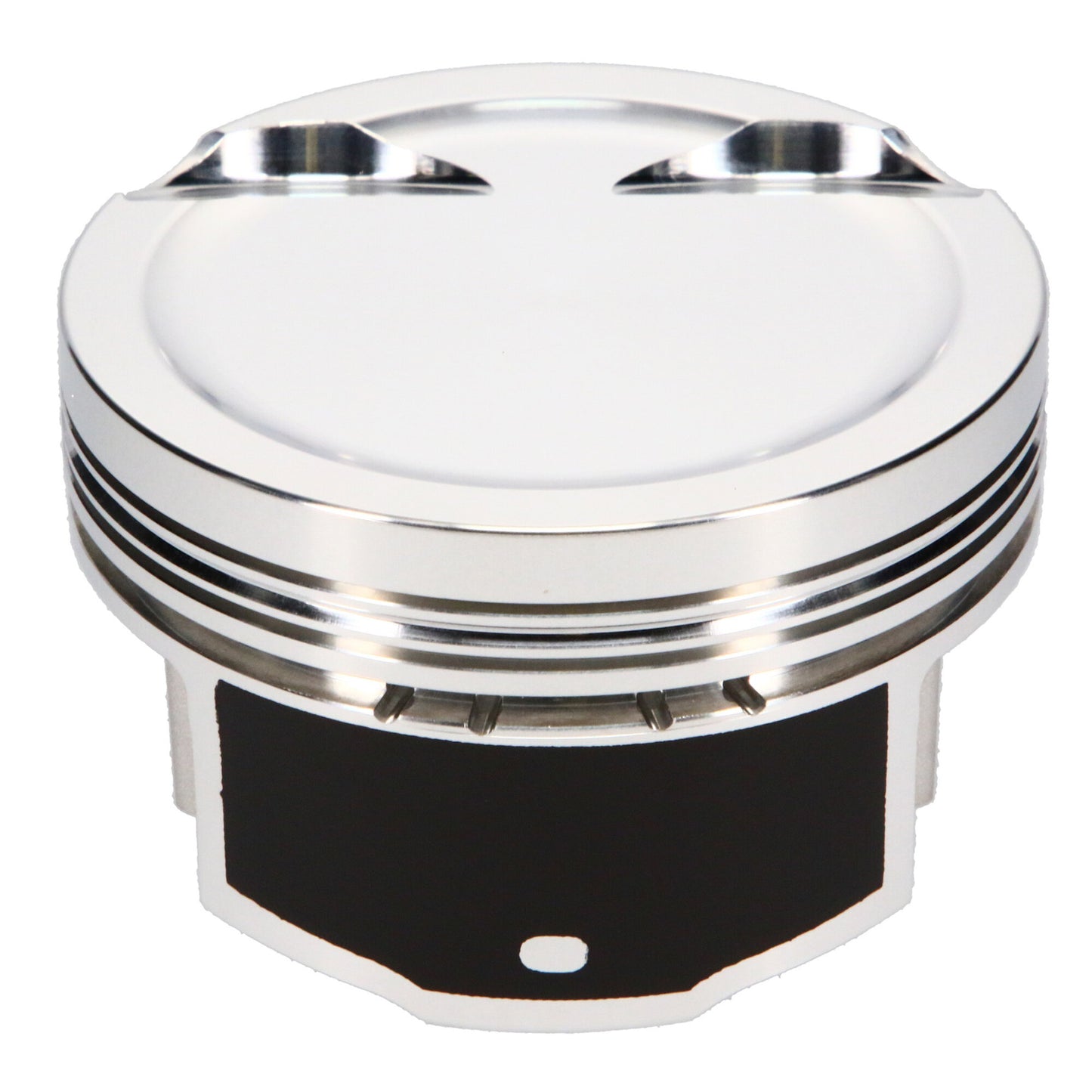

JE Pistons VW 3.287 in. Bore Kit 353864

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.

Attributes:

• GTIN: 00193564216472
• Brand Name: JE Pistons
• Add-On: JG1001-3287
• Add-On: 905-2250-18-51C
• Add-On: 905-073-MW
• Bore Diameter: 83.50
• Compression Height: 1.165
• Cylinder Head: 2.0 TSI
• Engine: 2.0T TS1 2013+ EURO 2015+ USA 23MM PIN
• Forging Type: FSR
• Industry: Automotive
• Make: VOLKSWAGEN
• Oil Ring Thickness: 0.111
• Out of Stock Message: Call for Availability
• Piston Head Type: Dish
• Piston Material: 2618
• Piston Pin Length: 2.250
• Piston Pin Material: 5115
• Piston Pin Outside Diameter: 0.905
• Piston Pin Wall Thickness: 0.180
• Piston Volume: -5.8
• Product Market: Sport Compact
• Ringset Included: Yes
• Second Compression Ring Thickness: 0.048
• Top Compression Ring Thickness: 0.04

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.00 x 9.00 x 5.00 inches
• Weight: 7 lb
