Mishimoto Jeep Wrangler JK Thermostatic Oil Cooler Kit, 2007-2011 MMOC-WRA-07T

Your high-performance Jeep JK demands a cooling solution that can keep up in the most extreme environments. Whether you are cruising through the dunes or hitting the trails, properly regulated oil temperatures are vital to the life of your engine. Excessive temperatures result in rapid oil degradation and can put a quick end to a fun day in your rig. Mishimoto has the perfect solution for controlling oil temperatures, the Jeep JK Direct-Fit Oil Cooler Kit. This kit utilizes precision engineered JK-specific mounting brackets, premade stainless steel lines, billet aluminum oil filter sandwich plate, 19-row stacked-plate oil cooler, and all hardware necessary for a quick and easy installation. The Mishimoto Jeep JK Oil Cooler Kit adds .75 qt to your oil capacity and reduces temperatures by up to 40 degrees Fahrenheit while maintaining minimal pressure drop. This kit is the perfect complement to the Mishimoto Jeep JK transmission cooler kit and the Mishimoto all-aluminum radiator for the ultimate cooling solution for your Jeep JK. This oil cooler kit is available with a standard or thermostatic sandwich plate for additional oil temperature control. As with all our products, this kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

• Direct fit for the 2007–2011 Jeep Wrangler JK
• Application-specific mounting brackets
• Premade braided stainless steel oil lines with durable –AN fittings
• Billet aluminum oil sandwich plate in standard or thermostatic form
• 19-row stacked-plate oil cooler for optimal fluid temperature reduction
• Reduces oil temperatures by up to 40°F
• Compatible with all Mishimoto JK Wrangler parts
• Increases oil capacity by .75 qt
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354010503
• Brand Name: Mishimoto
• TechSpec Core Height (in): 5.43
• TechSpec Core Thickness (in): 1.97
• TechSpec Engine Codes: EGH
• TechSpec Chassis Codes: JK
• TechSpec Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Inlet: N/A
• TechSpec Outlet: N/A

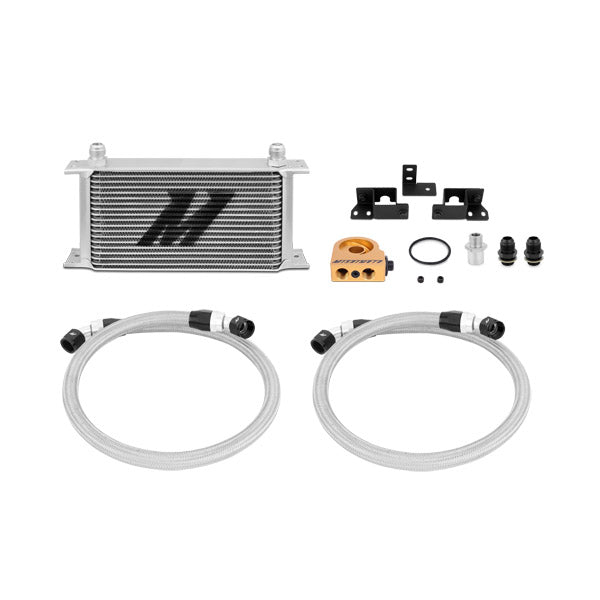

• TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--2-ft 8-in Stainless Steel Braided Hose w/ -10AN Fittings--M20 Sandwich Plate--Stainless Steel Sandwich Plate Adapter, 3/4-in -16--Banjo Fitting w/ Bolt M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Mounting Hardware Set--Mishimoto Lifetime Warranty
• TechSpec Applications: 2007-2011 Jeep Wrangler--2007-2011 Jeep Wrangler Unlimited
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Note: This kit comes with MMOP-SPTR, our sandwich plate with rear-mounted thermostat. Mishimoto does not recommend using MMOP-SPT due to suspension clearance issues.----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb----It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• SellingPoint01: Direct fit for the 2001-2005 Subaru WRX and STI
• SellingPoint02: Application-specific mounting brackets
• SellingPoint03: Premade braided stainless steel oil lines with durable -AN fittings
• SellingPoint04: Billet aluminum oil sandwich plate in standard or thermostatic form
• SellingPoint05: 10-row stacked-plate oil cooler for optimal fluid temperature reduction
• SellingPoint06: Easily installs in two hours or less
• SellingPoint07: Reduces oil temperatures by 20 F (16 C)
• SellingPoint08: Compatible with all Mishimoto Subaru products
• SellingPoint09: Increases oil capacity by .5 qt
• SellingPoint10: This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Rows: 19
• TechSpec Core Construction: N/A
• TechSpec Core Length (in): 11

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 8 x 14.5 inches
• Weight: 11.5 lb
