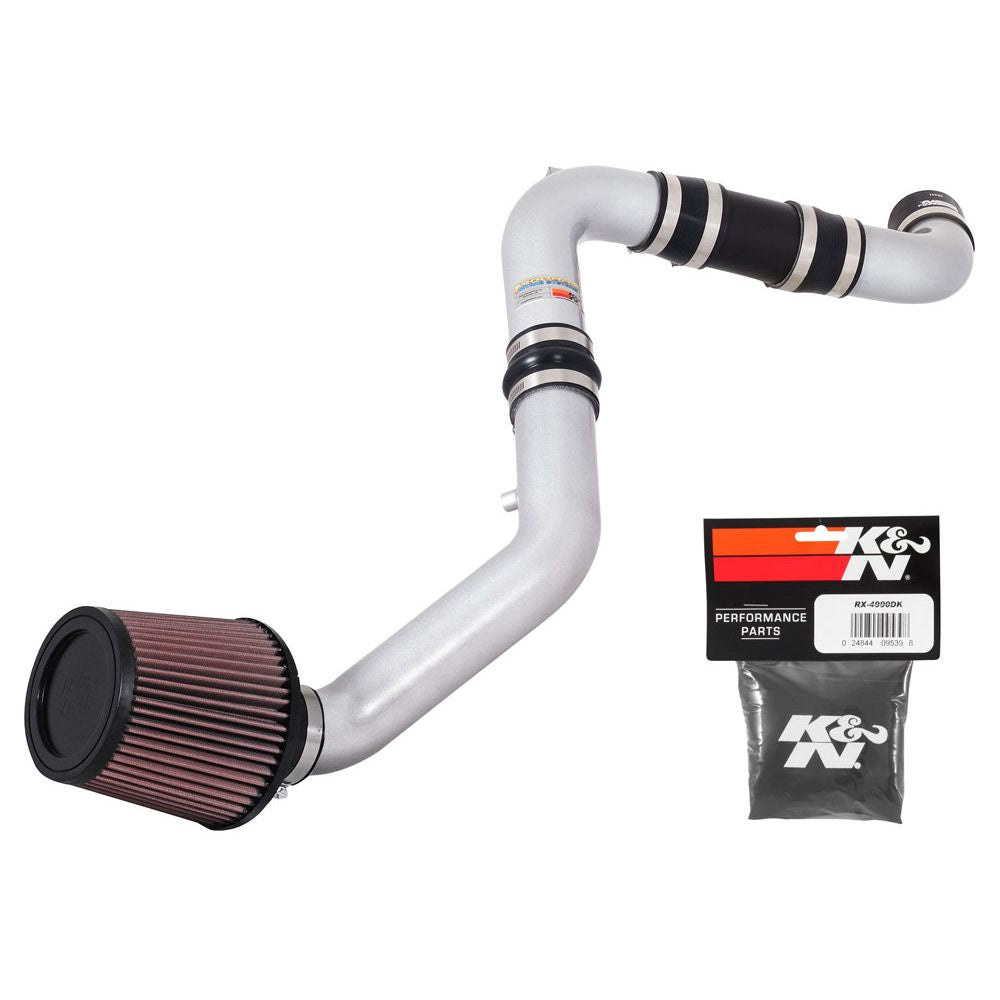

K&N 69-6020TS Performance Air Intake System

The K&N 69-6020TS Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda Protege, Protege5 and MP3 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6020TS cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

Attributes:

• GTIN: 00024844093370
• Brand Name: K&N
• Air Box Included: No
• Air Filter Color: Red
• Air Filter Material: Cotton Gauze
• Air Filter Outlet Shape: Round
• Air Filter Washable: Yes
• CARB EO Number: D-269-24
• Clamp Color/Finish: Natural
• Clamp Material: Stainless Steel
• Clamp Style: Regular
• Clamps Included: 9
• Coupler Color/Finish: Black
• Couplers Included: 4
• Estimated Horsepower Gain: 5 HP @ 3568 RPM
• Horse Power Increase: 5 HP
• Intake Pipe Color / Finish: Silver
• Intake Pipe Material: Aluminum
• Intake Pipe Ports: All intake tube ports needed for the specified applications are included
• Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
• Mounting Hardware Included: Yes
• Oil Included: Filter Is Pre-Oiled
• Package Material: Paperboard
• Package Type: Box
• Product Style: 69 Series Typhoon Kits
• Replacement Filter: RU-4950
• RPM: 3568
• Street Legal In All US States: Yes
• System Type: Complete Cold-Air Intake System
• TUV Approved (Europe): No
• Warranty: 1,000,000 Miles/10 Year
• Weight: 9.3 lb (4.2 kg)

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.2500 x 12.2500 x 12.2500 inches
• Weight: 9.3000 lb
